DWDM 14PIN Butterfly Analog Laser for CATV

Table of Contents

1. Introduction of the DWDM 14PIN Butterfly Analog Laser for CATV

2. Technical Specifications

3. Product Features

4. Typical Applications

5. Product details

6. Ordering Information

7. Datasheet and testsheet

8. Terms of quote and payment

9. Lead time

10. Operation Notes

11. Quality Assurance and After-Sales Service

Product Introduction

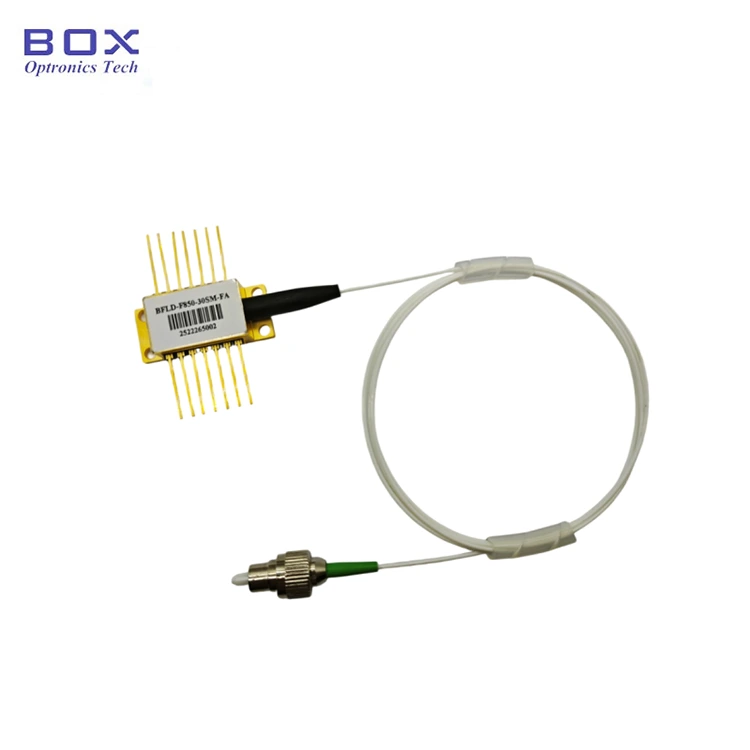

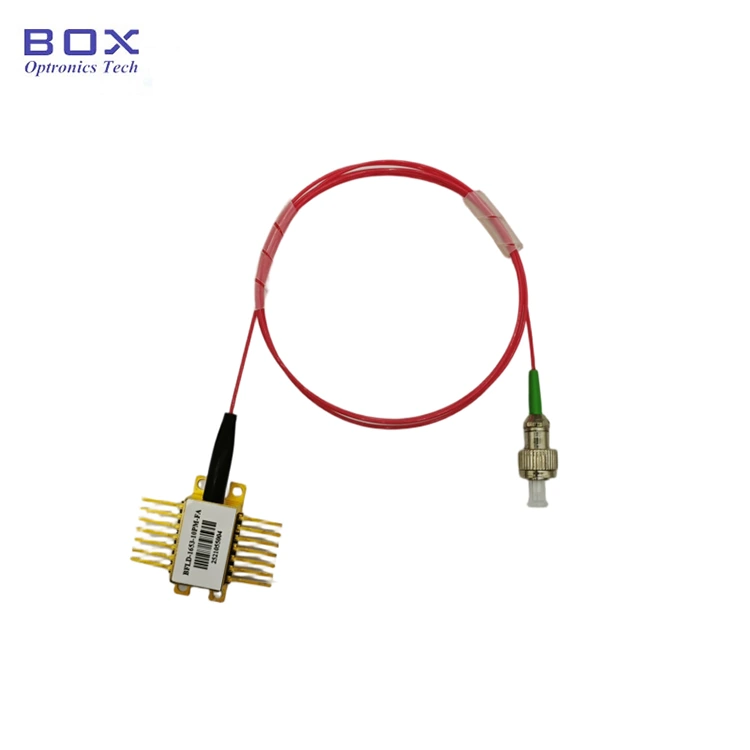

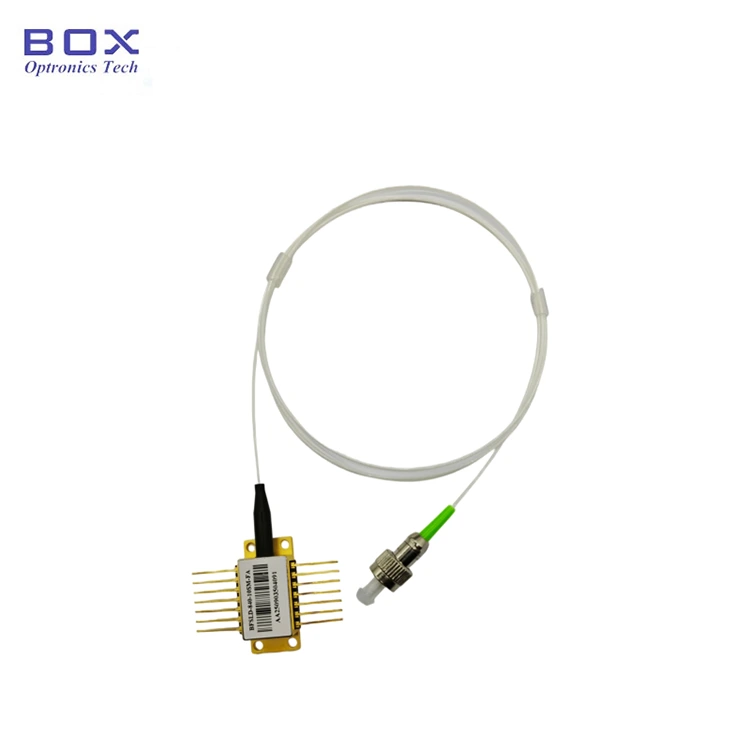

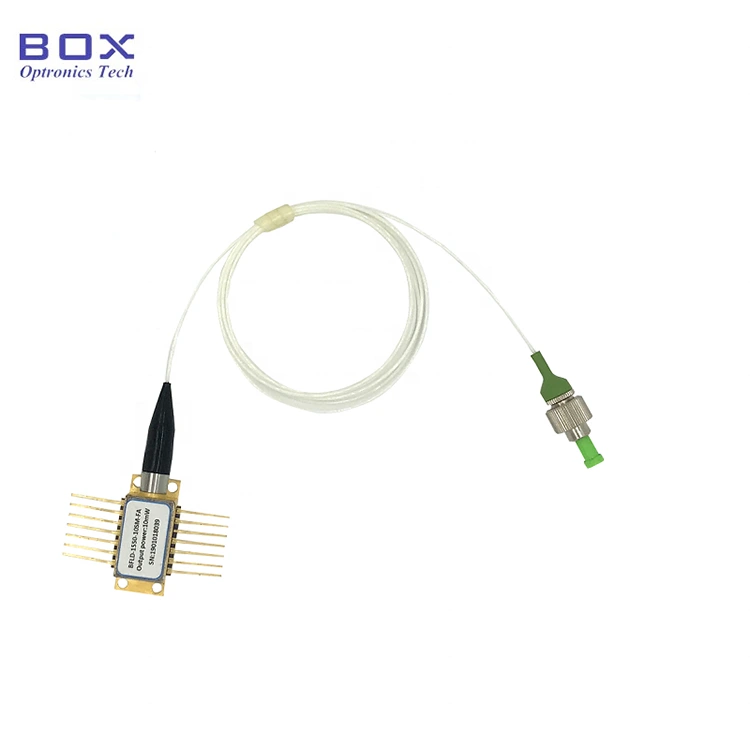

DWDM 14PIN Butterfly Analog Laser for CATV is designed with an advanced analog chip, optical isolator, and 10mW output power. Packaged with a built-in thermoelectric cooler (TEC) and monitor photodiode, it delivers excellent linearity, low distortion, and superior wavelength stability across the DWDM grid. If the pins require soldering, the soldering temperature must not exceed 260°C, and the soldering time must not exceed 10 seconds.

Product Specifications

Product Features

● Fiber type can be SMF-28e or PMF-1550;

● Output power 10mW or customized;

● 14-pin BTF package with TEC and Monitor PD.

Product Applications

● Fiber optic communication;

● DWDM systems;

● CATV transmission;

● Laboratory test equipment.

Product Details

● ITU Grid Channel Numbering

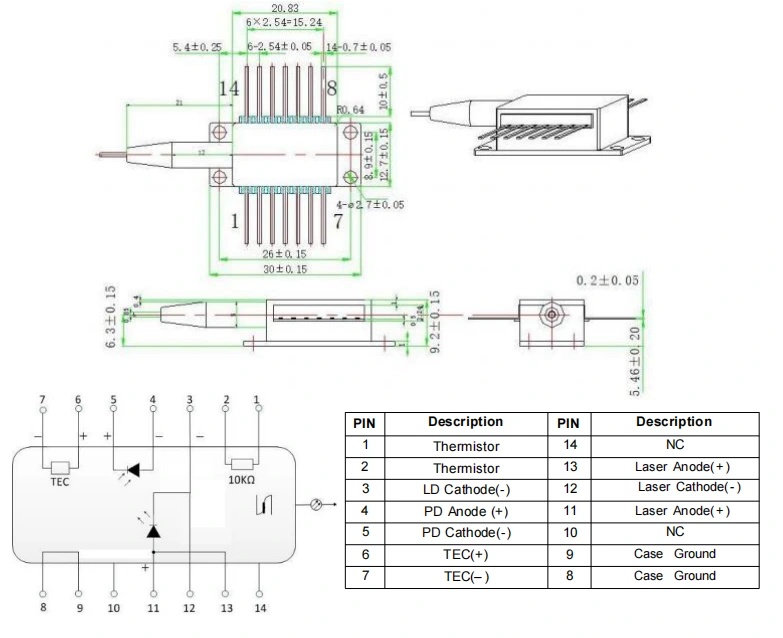

● Type 1 Package Drawing&PIN-OUT Definition(Unit:mm):DWDM 14PIN Butterfly Analog Laser for CATV

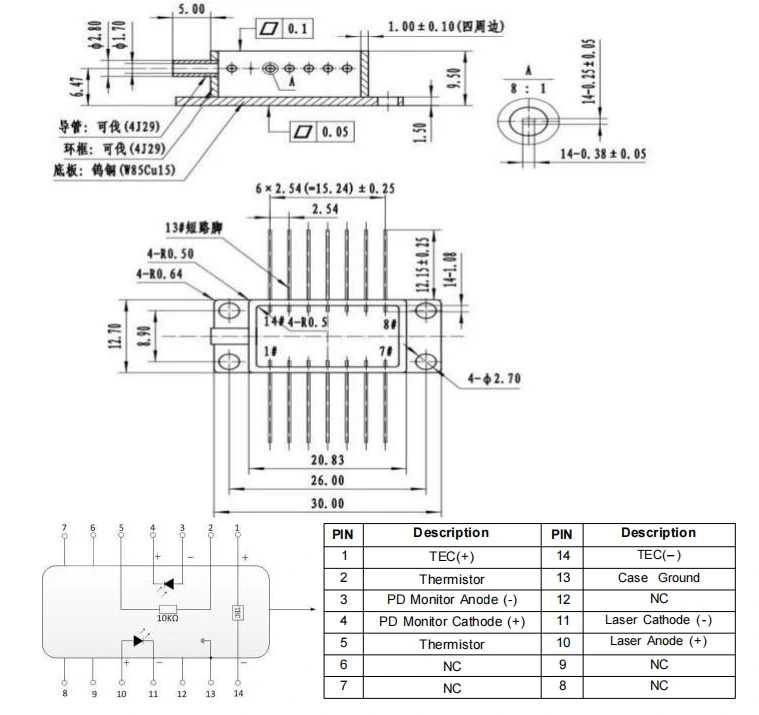

● Type 2 Package Drawing&PIN-OUT Definition(Unit:mm)-DWDM 14PIN Butterfly Analog Laser for CATV

Ordering information

eg: BFLD-CH56-10SM-FA

(Order information: DWDM 14PIN Butterfly Analog Laser for CATV, CH56: 1532.68nm, 10mW output power, SM fiber, FC/APC connector, type1 pin-out).

For other customized requirements, please contact: sales06@boxoptronics.com

Datasheet and Testsheet

Datasheet

Testsheet

Terms of quote and payment

● Terms of quote

(1) EXW:

If you have a DHL/ UPS/ FedEx account, Box Optronics suggest using the EXW. We ship via your account; we don't charge the shipping cost.

(2) DAP:

If you don't have an account, please prepay the shipping cost for the products.

(3)Other

● Terms of payment

PayPal and T/T are available.

Lead time

It takes around 10 working days for production. (If there are some in stock, it will be faster shipped.)

The international logistics might take 3-5 working days.

Operation Notes

● ESD Protection:This device is electrostatic-sensitive. Therefore, strict anti-static protection measures must be adhered to during packaging, transportation, and use. Additionally, precautions should be taken to prevent power-supply surges, as failure to do so may result in permanent damage to the device (e.g., ensure proper equipment grounding and wear an anti-static wrist strap).

● Pin Soldering Requirements:If the pins need to be soldered, the soldering temperature must not exceed 260°C, and the soldering time must not exceed 10 seconds. Pay particular attention to the following: during the soldering process, the device must be in an unpowered state, and the soldering iron must be properly grounded.

● Apply current:During the power-up process, never apply a high current directly, as this risks damaging the chip. Instead, power up the device at a current level close to the chip's threshold, and then gradually increase the current in small increments until the desired level is reached.

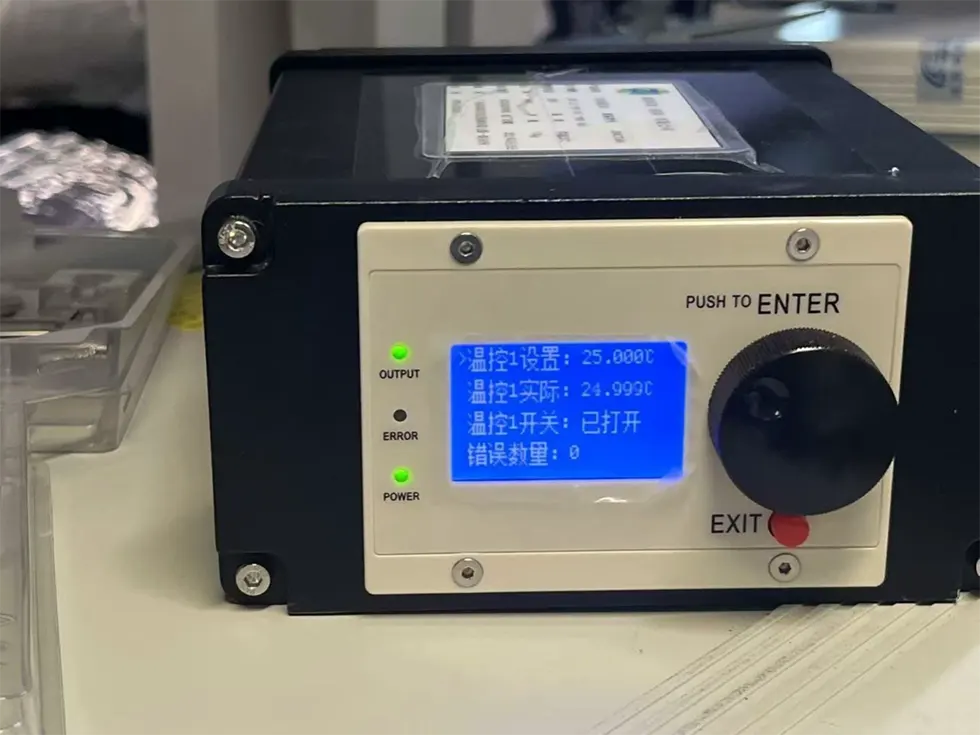

● TEC cooler:Before powering up all components, first activate the cooler, and then proceed with incremental power-up steps to prevent chip overheating and overload.

Quality Assurance and After-Sales Service

● Warranty Period:

Free repair or replacement for non-human-induced defects within 1 year from purchase. Paid maintenance services available after 1 year.

● Exclusions from Free Warranty:

During the free warranty period, free repair or replacement services will be provided for faults caused by product quality issues. However, Box Optronics retains the right to refuse free repair services in the following cases within the warranty period:

(1) Damage caused by natural factors (e.g., lightning, dust) or environmental influences.

(2) Malfunctions due to improper operation by the user.

(3) Obvious physical damage caused by human error.

(4) Unauthorized disassembly, modification, or repair.

(5) Altered or incomplete warranty labels on the housing.

(6) Damage or loss during transportation.
