1064nm 30mW DFB Butterfly Laser Diode

Table of Contents

1. Introduction of the 1064nm 30mW DFB Butterfly Laser Diode

2. Technical Specifications

3. Product Features

4. Typical Applications

5. Product details

6. Ordering Information

7. Datasheet and testsheet

8. Terms of quote and payment

9. Lead time

10. Operation Notes

11. Quality Assurance and After-Sales Service

Product Introduction

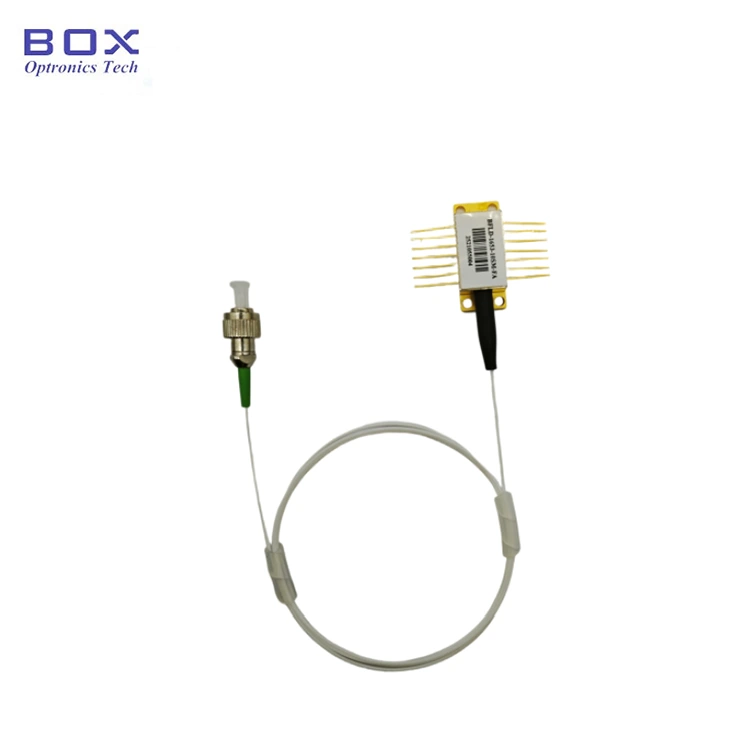

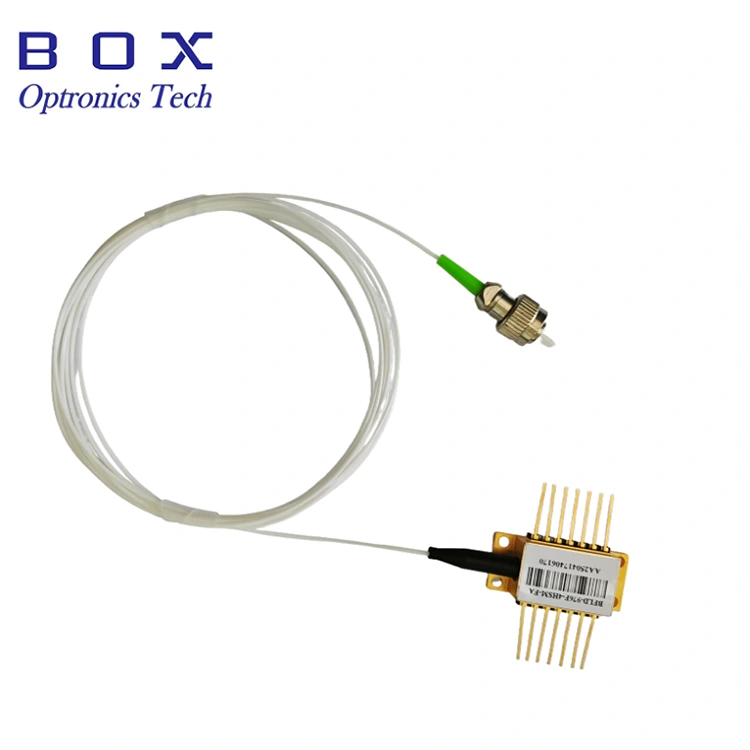

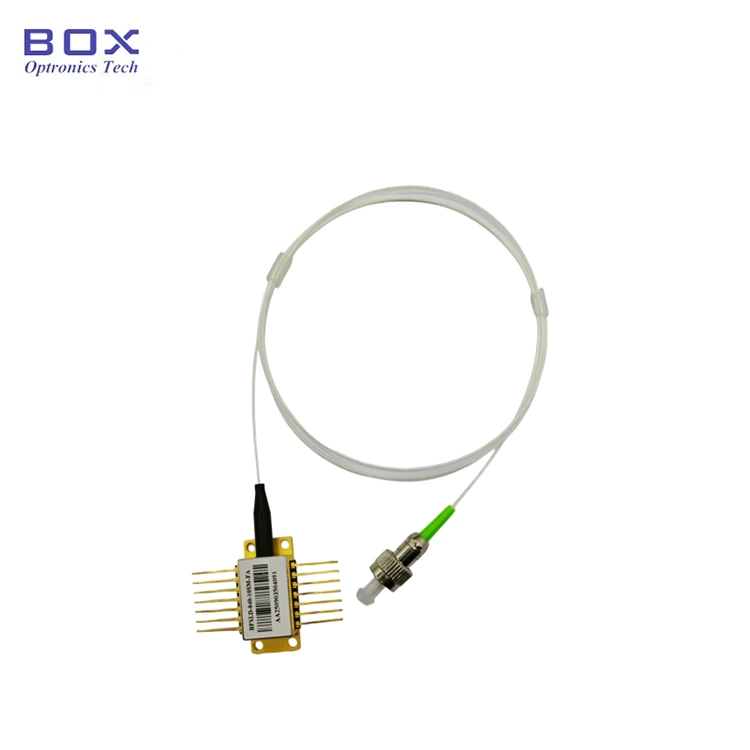

This is a 1064nm DFB Laser Diode with a 14-pin standard butterfly package, central wavelength 1064nm, wavelength tolerance +/-1nm, and typical output power 30mW. Built-in TEC, thermistor, isolator, and monitor PD, with excellent wavelength stability for long-term stable operation. It is mainly used in optical fiber communications and sensing. Wire strictly according to the pin definition, under TEC control, and excessive fiber bending to ensure performance and service life.

Product Specifications

Product Features

● Multi-Quantum Well (MQW) distributed feedback(DFB) lasers;

● Output power up to 30mW;

● SM or PM fiber;

● 14-pin BTF package with thermistor, TEC, isolator and Monitor PD.

Product Applications

● Optical fiber communications;

● Optical instrument;

● Optical fiber sensor;

● Light source.

Product Details

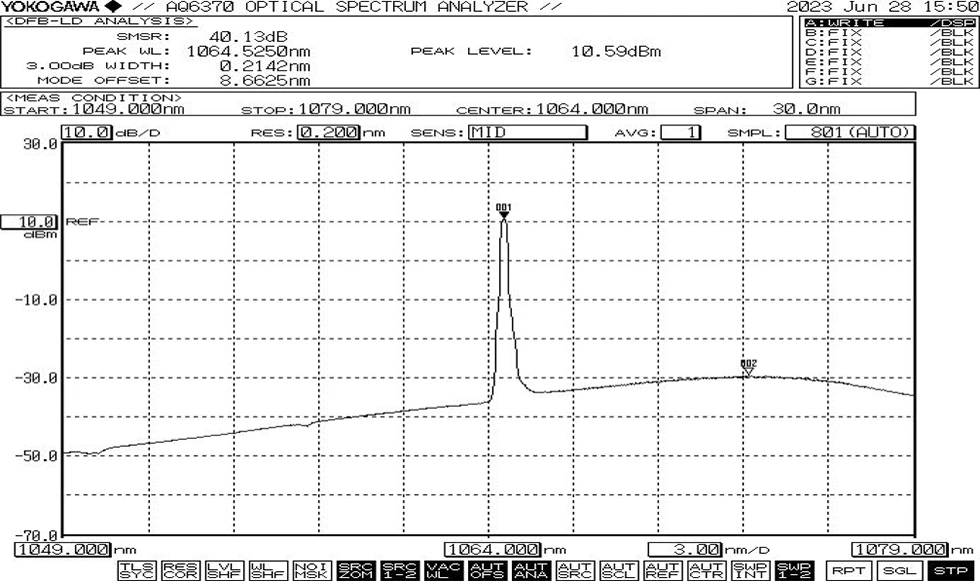

● Typical spectrum: 1064nm, +/-1 WL tolerance

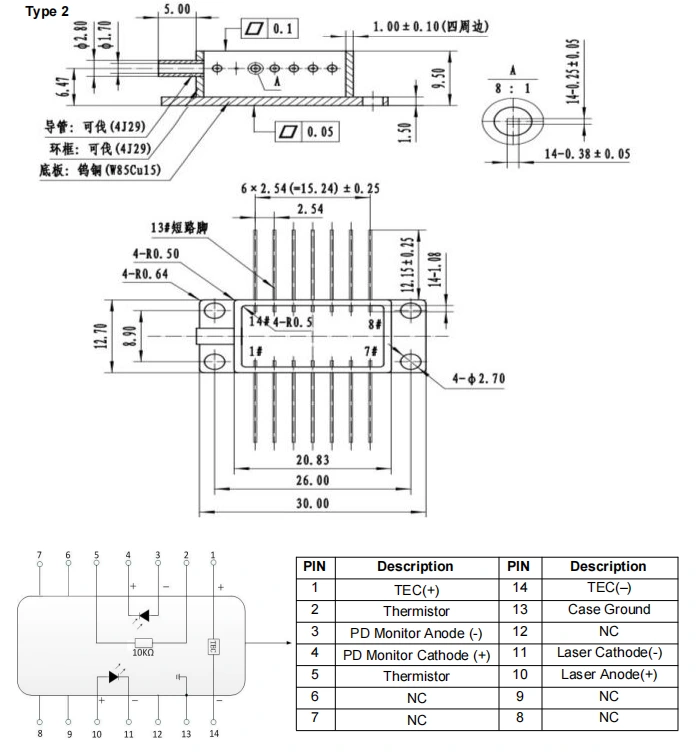

● Package drawing&PIN-OUT Definition(Unit:mm)-1064nm 30mW DFB Butterfly Laser Diode

● Standard accessories

*Standalone device; no built-in driver (external driver optional).

Ordering information

eg: BFLD-1064-30SM-FA

(Order information: 1064nm 30mW DFB Butterfly Laser Diode, with SM fiber, FC/APC connector, pump pin).
