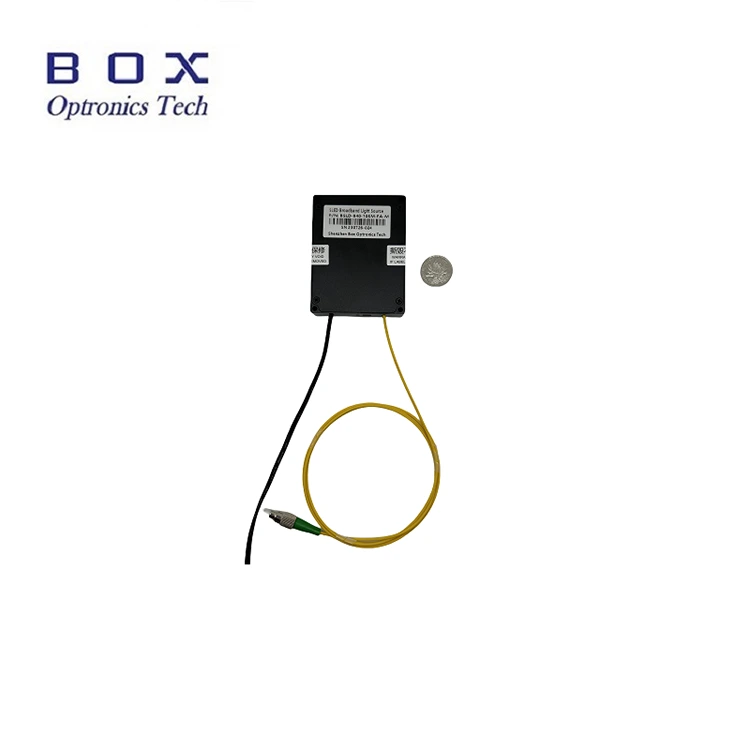

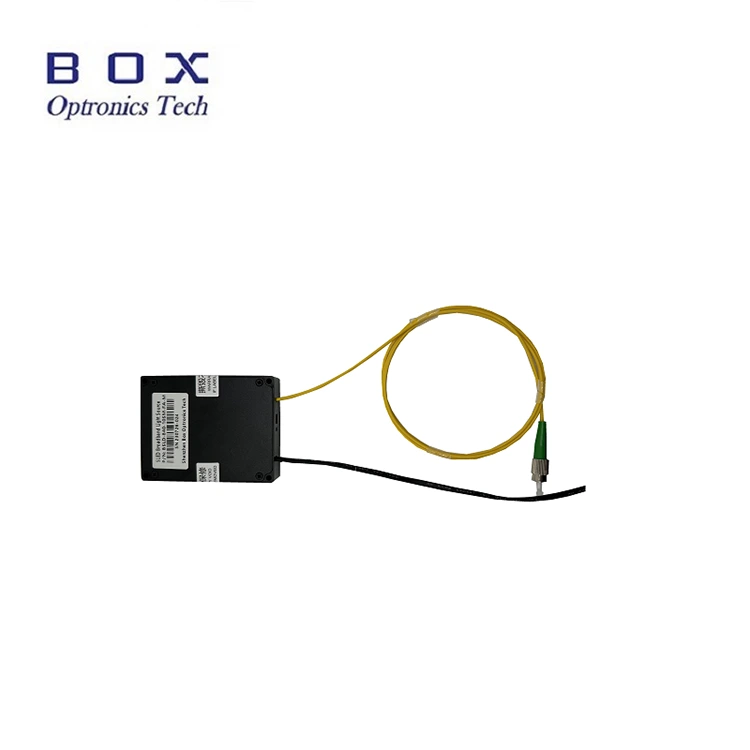

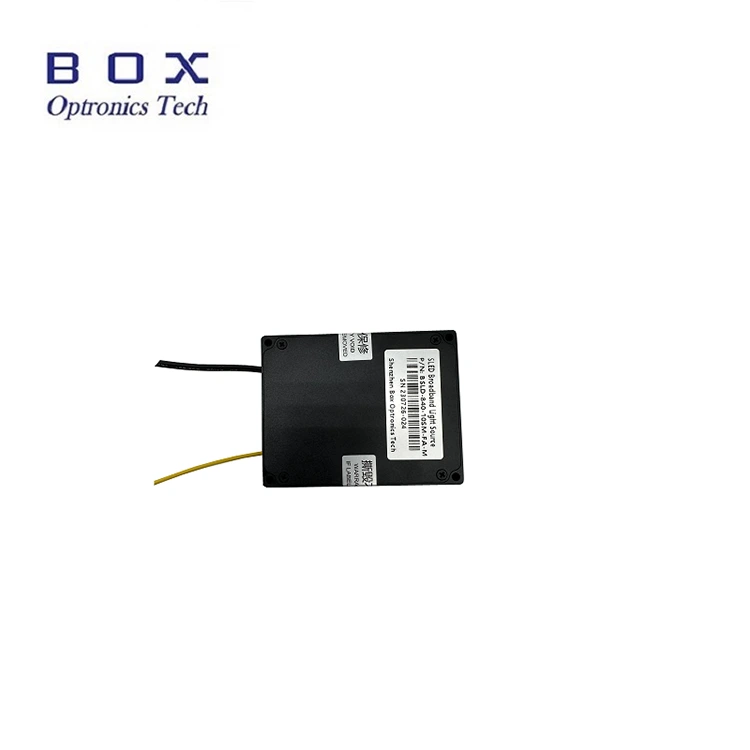

Fabry Perot FP Laser Source Module adopts a semiconductor laser chip, a professionally designed drive circuit, and TEC control to ensure safe operation of the laser, stable output power, and spectrum. 532nm, 785nm, and 1064nm are optional. The output power is over 50mW. PC host commands and software are provided for operation and integration. Suitable as a pump laser source for biomedical and spectral analysis.
|
Parameters |
Unit |
Values |
Notes |
||
|
Operating wavelength |
nm |
532±5 |
785±5 |
1064±5 |
|
|
Output power |
mW |
>50 |
>50 |
>50 |
|
|
Fiber type |
- |
460-HP |
Hi780 |
Hi1060 |
|
|
Power instability (Short-term 15mins) |
dB |
≤±0.02 |
|
||
|
Power instability (Long-term 8hours) |
dB |
≤±0.05 |
|
||
|
Connector |
- |
FC/APC |
|
||
|
Dimensions |
mm |
70(W)×90(D)×18(H) |
|
||
|
Power supply |
VDC |
DC 12V/2A |
XH2.54-3PIN |
||
|
Activation electrical level |
VDC |
4.2~5.5V |
|
||
|
Communication interface |
- |
DB9 Female(RS485) |
XH1.25-3PIN |
||
|
Control software |
- |
BoxLaserCtrIV2 |
|
||
|
Serial port software |
- |
PL23XX_Prolific_DriverInstaller_v207 |
|
||
|
Operating temperature |
℃ |
-5 ~ +55 |
|
||
|
Storage temperature |
℃ |
-40 ~ +85 |
|
||
● 50mW high output power;
● Stable power and spectrum;
● 70x90x18mm Compact module package.
● Biomedical;
● Spectral analysis;
● Optical fiber sensor.

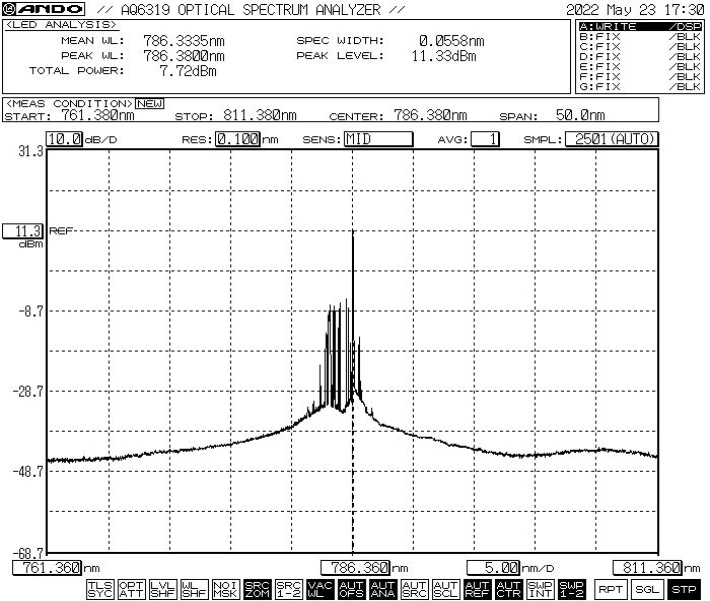

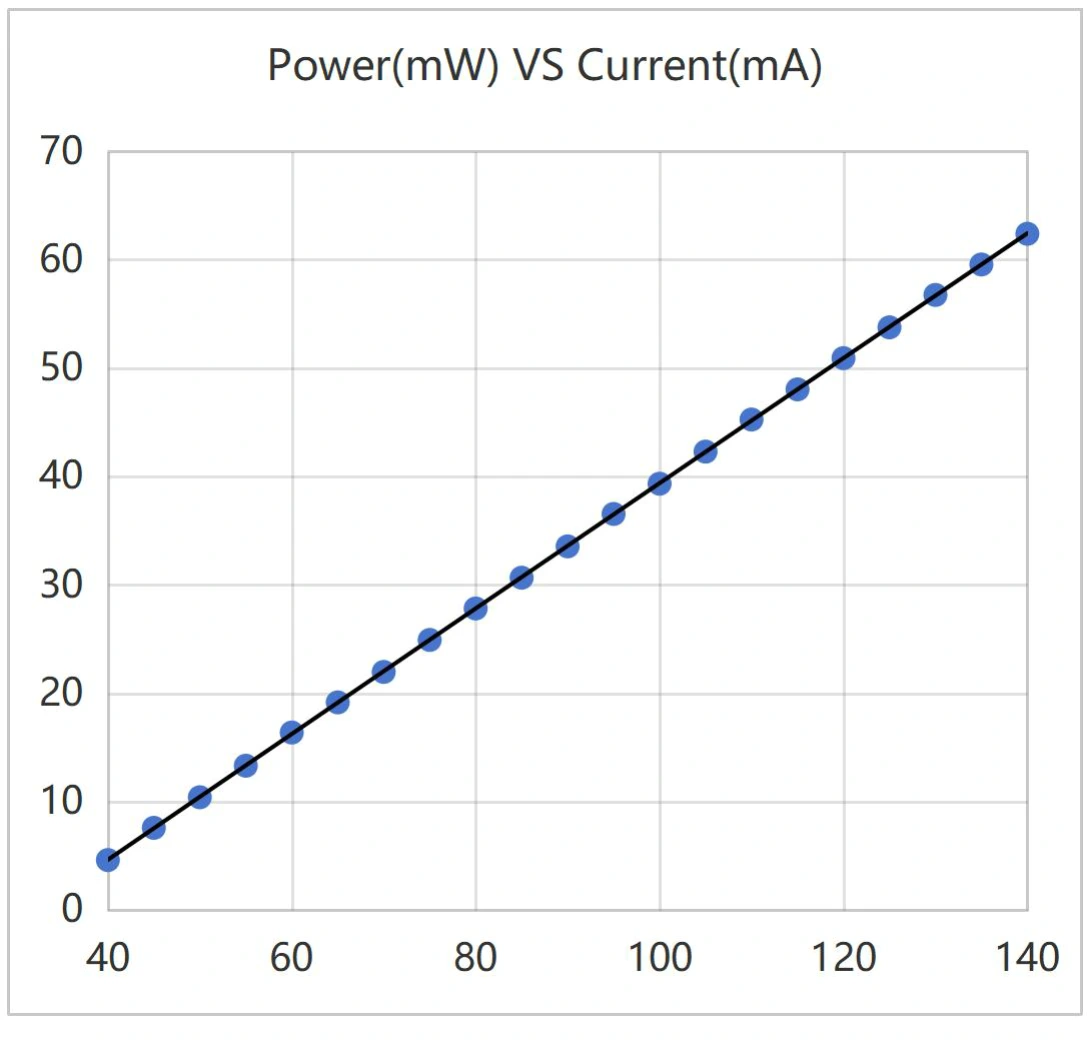

● Typical curve: 785nm 50mW FP laser source
Step1. Unpacking: Before assembly, check whether all accessories are complete.
Step2. Power supply: Connected to a DC switching power supply or a regulated power supply that meets their power supply requirements. Use only the original matched power adapter (DC5V or DC12V). Improper power adapters may damage the light source. (Power adapter supplied according to local voltage standards.)
Step3. Connecting output fiber: Open the dust cap at the fiber connector or flange, check the fiber end face, and connect the fiber or splice the fiber to the device or power meter to be tested after confirming that there is no pollution and damage.
Setp4. Connect to the host computer: Use the USB-RS485 DB9 Data Cable to connect theFabry Perot FP Laser Source Module and the computer; the computer must first install a dedicated serial port driver to identify the USB-RS485 serial port data cable, otherwise the host computer software and the light source module cannot be correctly connected and communicated. Please ask Box Optronics for the driver.

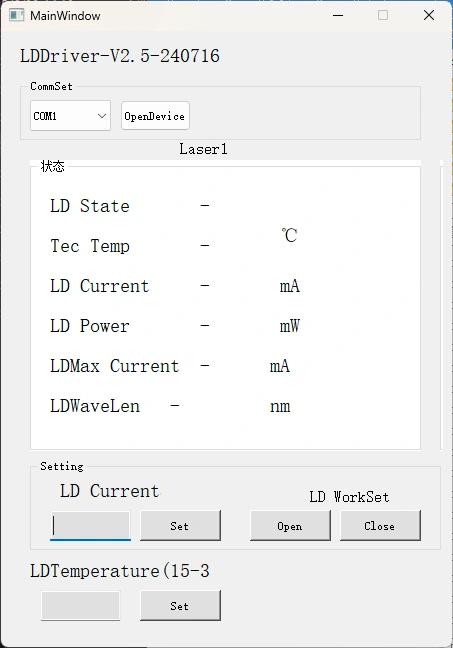

Step5. Control software: Box Optronics provides the serial command or PC software to control the LD current of the Fabry Perot FP Laser Source Module. Choose the correct port, set the current and temperature, then click the open button. (To prevent damage, ramp up the drive current slowly at initial operation. Do not apply full current immediately.)
Step6. After use, click the close button, turn off the power supply, and disconnect the fiber connection.
|
Name |
Wavelength |
Output power |
Fiber type |
Connector |
Dimension |
|
BFL |
-FXXX |
-XX |
XX |
-XX |
-X |
|
Laser source |
532:532nm 785:785nm 1064:1064nm |
50:50mW |
SM:SM fiber PM:PM fiber |
FA:FC/APC SA:SC/APC Other |
M:Module B:Benchtop |
eg: BFL-F1064-50SM-FA-M
(Order information: Fabry Perot FP Laser Source Module, 1064nm, 50mW output power, with SM fiber, FC/APC connector,module package).
For other customized requirements, please contact: sales06@boxoptronics.com
● Terms of quote
(1) EXW:
If you have a DHL/ UPS/ FedEx account, Box Optronics suggest using the EXW. We ship via your account; we don't charge the shipping cost.
(2) DAP:
If you don't have an account, please prepay the shipping cost for the products.
(3)Other
● Terms of payment
PayPal and T/T are available.
Production: 10-15 working days. (If there are some in stock, it will be faster shipped.)
The international logistics: 3-5 working days.
● It is not recommended to frequently insert or remove the fiber optic connectors, in order to prevent dust contamination—which can lead to increased insertion loss—or the burning of the fiber connector end faces.
● Clean fiber connectors with a lint-free wipe and inspect with a fiber end-face detector before connection. Always connect/disconnect fibers without power to avoid end-face burning. The fiber optic connectors must be covered with dust caps.
● If the output fiber needs to be connected to another fiber, it is recommended to use a fusion splicer.
● Please take precautions against moisture, dust, and corrosion; store in a dry place.
● Warranty Period:
Free repair or replacement for non-human-induced defects within 1 year from purchase. Paid maintenance services available after 1 year.
● Exclusions from Free Warranty:
During the free warranty period, free repair or replacement services will be provided for faults caused by product quality issues. However, Box Optronics retains the right to refuse free repair services in the following cases within the warranty period:
(1) Damage caused by natural factors (e.g., lightning, dust) or environmental influences.
(2) Malfunctions due to improper operation by the user.
(3) Obvious physical damage caused by human error.
(4) Unauthorized disassembly, modification, or repair.
(5) Altered or incomplete warranty labels on the housing.
(6) Damage or loss during transportation.
