1030nm 50mW DFB Laser Diode Module

Table of Contents

1. Introduction of the 1030nm 50mW DFB Laser Diode Module

2. Technical Specifications

3. Product Features

4. Typical Applications

5. Product details

6. Ordering Information

7. Datasheet and testsheet

8. Terms of quote and payment

9. Lead time

10. Operation Notes

11. Quality Assurance and After-Sales Service

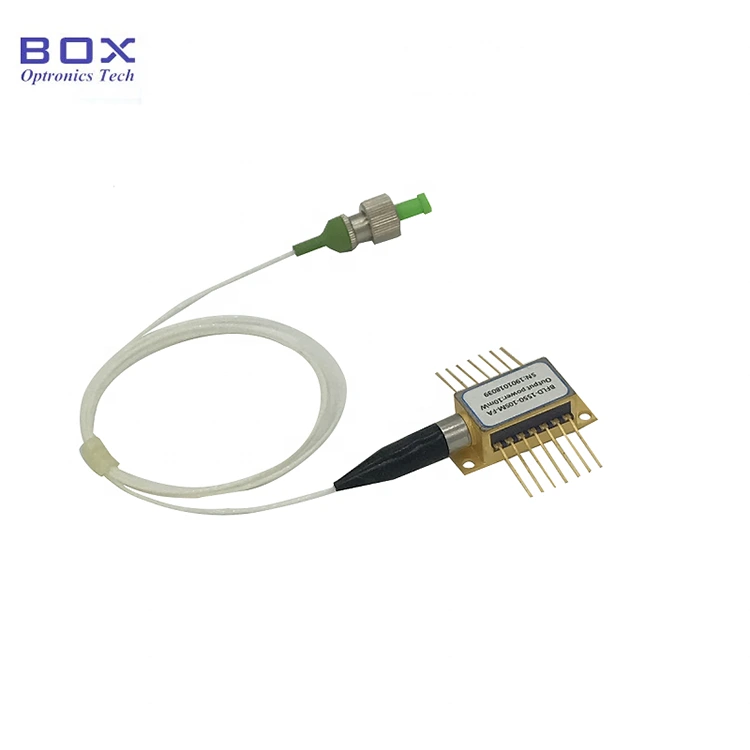

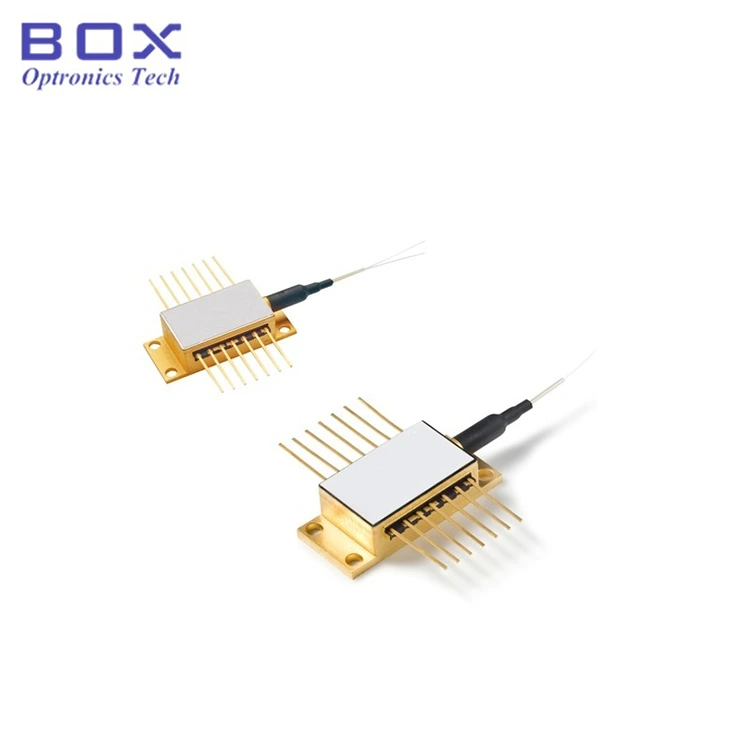

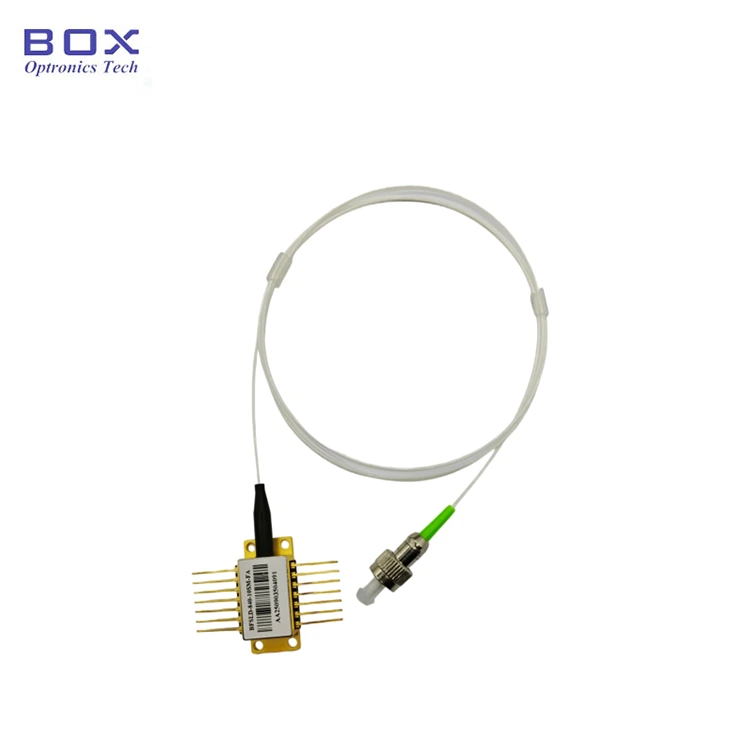

Product Introduction

1030nm 50mW DFB Laser Diode Module is hermetically sealed in a 14-pin butterfly package. It supports CW or pulse operation, and integrates TEC cooler and thermistor for a stable spectrum. Suitable for spectroscopy, telecom, illumination, and sensing. Before powering up, first activate the TEC cooler, then apply power in small increments to prevent the chip from overheating or becoming overloaded.

Product Specifications

Product Features

● Distributed feedback laser;

● CW or pulsed operation;

● Built-in monitor PD, thermoelectric cooler and thermistor;

● Optional FC/APC connector.

Product Applications

● Spectroscopy;

● Telecom;

● Illumination;

● Sensing.

Product Details

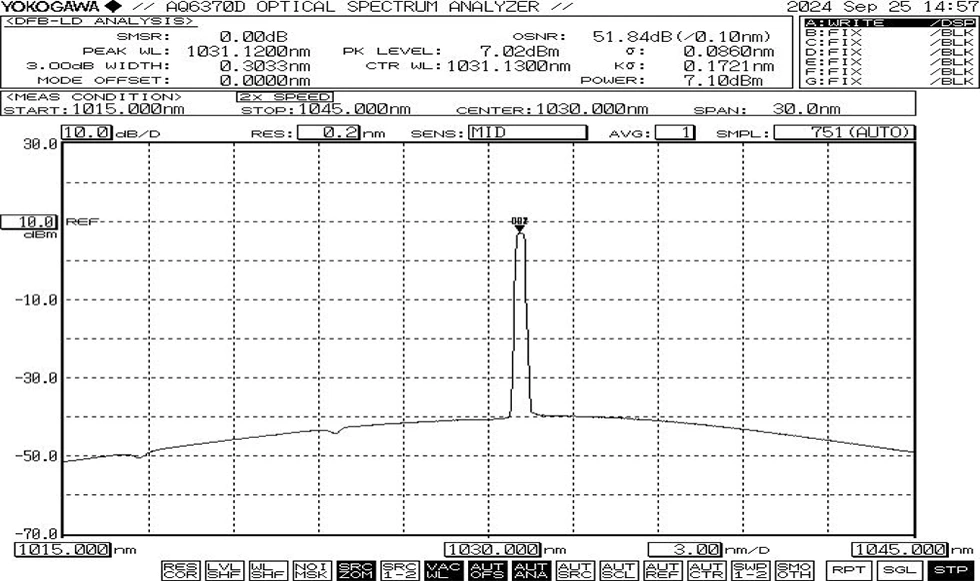

● Typical spectrum: 1030nm, +/-2nm WL tolerance

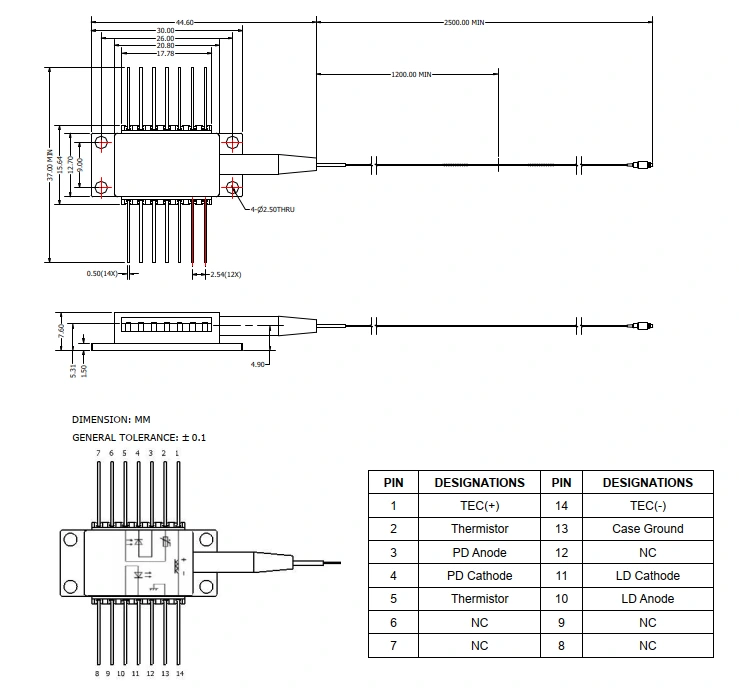

● Package drawing & pin-out definition (Unit:mm)

FAQ

(1)Is it possible to adjust the wavelength by varying the temperature? What is the coefficient?

--Wavelength/temperature coefficient 0.01nm/℃.

(2)What’s the fiber type?

--Corning HI1060 ,NA=0.14 ,MFD=6.2um@1060nm.

(3)What’s the power tunable range?

--10~100%.

(4)Do you provide a protective tube and connector for the LD?

--Yes. 900um loose tube and FC/APC are optional.

Ordering information

eg: BFLD-D1030-50SM-FA

(Order information: 1030nm 50mW DFB Laser Diode Module, butterfly package, with SM fiber, FC/APC connector).
