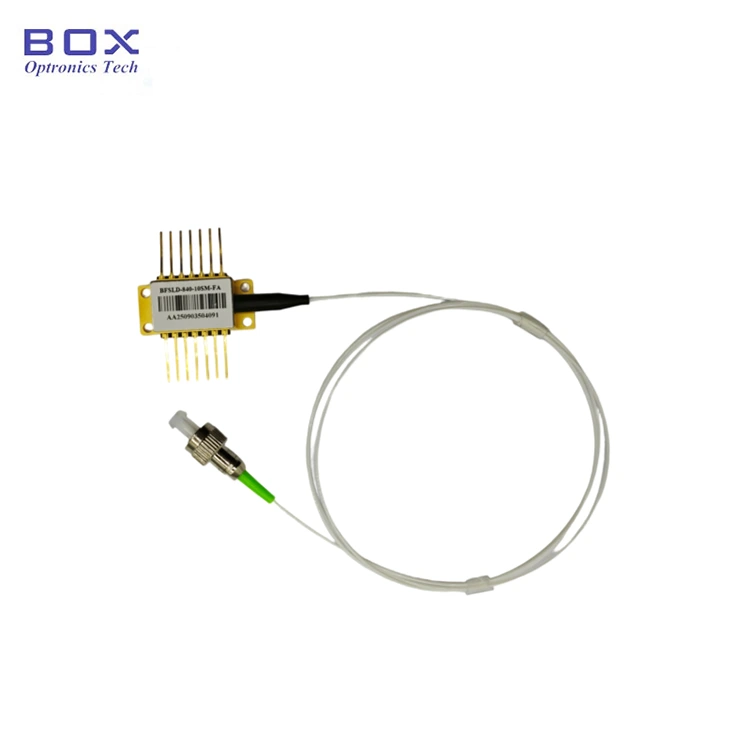

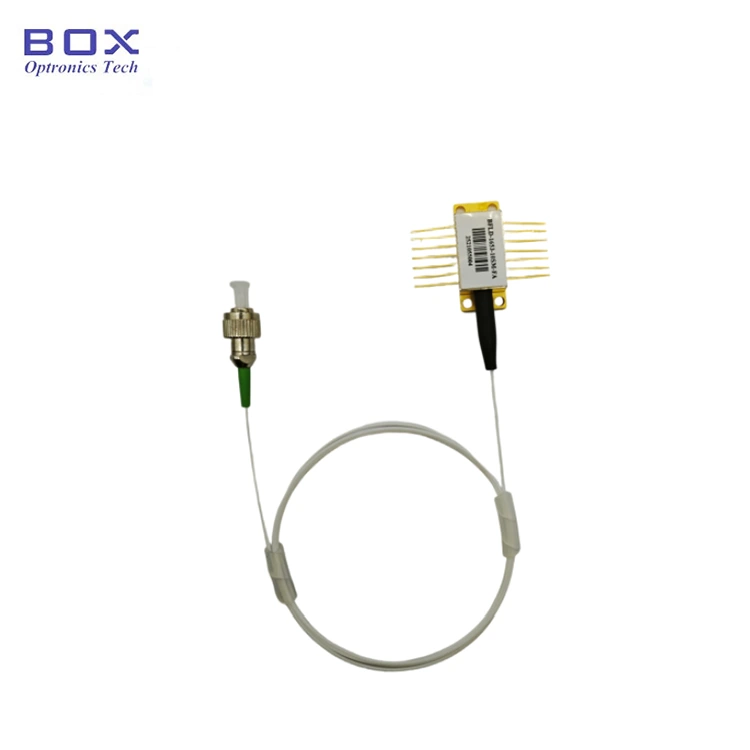

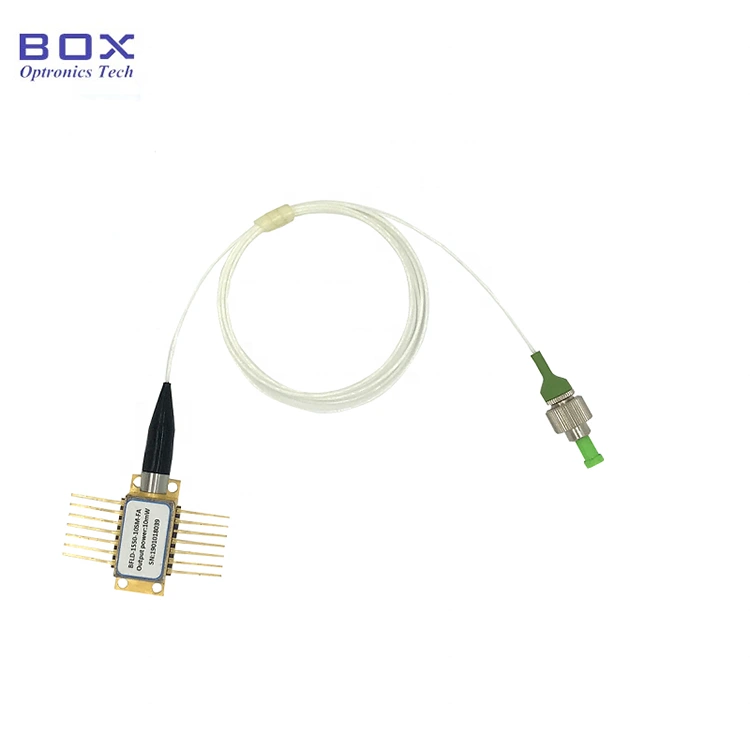

10mW C+L Band DWDM DFB Laser Diode

Box Optronics, a professional optoelectronic component manufacturer, provides the 10mW C+L Band DWDM DFB Laser Diode, a high-precision distributed feedback laser featuring ±0.2nm wavelength accuracy for DWDM systems, fiber optic sensing, and precision laser source applications. With an optional ultra-wide wavelength range from 1527.22nm (C63) to 1610.92nm (L61) across both C-band and L-band, this laser delivers 10mW CW optical output power. Housed in an industry-standard 14-pin butterfly package with an integrated thermoelectric cooler (TEC), thermistor, monitor photodiode, and built-in optical isolator.

Send Inquiry

Product Description

Product Overview-10mW C+L Band DWDM DFB Laser Diode

Box Optronics’ 10mW C+L Band DWDM DFB Laser Diode is a precision wavelength laser sourcewith optional 1527.22~1610.92nm C+L band wavelengths with ±0.2nm wavelength accuracy,and 10mW optical output power. Integrated TEC, thermistor, monitor photodiode, and optical isolator in a standard 14-pin butterfly package, providing stable wavelength control, low-noise operation, and easy OEM system integration. Designed for DWDM communication systems, fiber sensing, and precision optical instrumentation.

Key Features-10mW C+L Band DWDM DFB Laser Diode

· C+L band wavelengths optional: 1527.22nm (C63) to 1610.92nm (L61)

· High side-mode suppression ratio: ≥40dB minimum, 50dB typical (CW)

· Low relative intensity noise (RIN): ≤ -145dB/Hz (20-1000MHz)

· Built-in optical isolator: ≥30dB isolation

· Integrated thermoelectric cooler (TEC) and 10kΩ thermistor for wavelength stabilization

· Fiber options: SMF-28e single-mode or PM1550 polarization-maintaining fiber

· Standard FC/APC fiber connector,or customized

· Monitor photodiode integrated for output power monitoring

· Telcordia GR-468 reliability qualified, RoHS compliant

Typical Applications-10mW C+L Band DWDM DFB Laser Diode

· Dense wavelength division multiplexing (DWDM) transmission systems across C-band and L-band

· DWDM transmitter modules and transponder cards for telecom networks

· Fiber optic sensing systems for temperature, strain, and vibration measurement

· Optical spectrum analysis and wavelength reference sources

· Optical component testing and characterization equipment

· Research and development in photonics and optical communication laboratories

· OEM integration into telecom transmission equipment and test instruments

Product Specifications-10mW C+L Band DWDM DFB Laser Diode

Absolute Maximum Ratings

Parameter	Symbol	Condition	Min.	Typ.	Max.	Unit
Storage Temperature	Ts	-	-40	-	85	°C
Operating Case Temperature	Top	-	-20	-	70	°C
Forward Current	IF	CW	-	-	200	mA
Laser Reverse Voltage	VLR	-	-	-	2	V
PD Forward Current	IFPD	-	-	-	5	mA
PD Reverse Voltage	VRPD	-	-	-	10	V
TEC Current	ITEC	-	-	-1.5	+1.5	A
TEC Voltage	VTEC	-	-	-3.5	+3.5	V

Optical Characteristics (T = 25°C Laser Temperature)

Parameter	Symbol	Test Condition	Min.	Typ.	Max.	Unit
Center Wavelength	λc	TL=15~35°C, CW	Shown in Selected Channels			nm
Peak Optical Output Power	PO	-	10	-	-	mW
Spectral Linewidth	LW	FWHM	-	3	5	MHz
Side-Mode Suppression Ratio	SMSR	CW	40	50	-	dB
Optical Isolation	-	-	30	-	-	dB
Relative Intensity Noise	RIN	20–1000MHz	-	-	-145	dB/Hz
Wavelength Drift (EOL)	Δλ	25-year lifetime	-	-	±0.1	nm
Wavelength Temperature Coefficient	Δλ/ΔT	TEC 15°C to 35°C	-	0.09	-	nm/°C
Wavelength Current Coefficient	Δλ/ΔI	-	-	0.01	-	nm/mA

Electrical Characteristics (T = 25°C Laser Temperature)

Parameter	Symbol	Test Condition	Min.	Typ.	Max.	Unit
Threshold Current	Ith	-	-	10	35	mA
Slope Efficiency	η	PO=10mW, CW	0.05	0.13	0.2	mW/mA
Operating Current	Iop	PO=10mW, CW	-	100	150	mA
TEC Set Temperature	Ts	-	15	-	35	°C
Laser Forward Voltage	VF	PO=10mW, CW	-	1.2	3.0	V
Monitor PD Current	IMPD	PO=10mW, CW	10	-	2500	μA
Monitor Dark Current	ID	IF=0mA, VRPD=5V	-	-	0.1	μA
Thermistor Current	ITC	-	10	-	100	μA
Thermistor Resistance	RTH	TL=25°C	9.5	10	10.5	kΩ
Thermistor Constant	B	-	3800	-	4100	K
TEC Current	ITEC	TL=25°C, TC=70°C	-1.5	-	+1.5	A
TEC Voltage	VTEC	TL=25°C, TC=70°C	-3.5	-	+3.5	V
TEC Capacity	ΔT	Tc=70°C	-	-	50	°C

Selected Channels:Part Number and Laser Center Wavelength list as below

Channel	Part Number	Min. Wavelength (nm)	Typ. Wavelength (nm)	Max. Wavelength (nm)	Unit
C63	BFLD-C63-10XX-XX	1527.02	1527.22	1527.42	nm
H62	BFLD-H62-10XX-XX	1527.40	1527.60	1527.80	nm
C62	BFLD-C62-10XX-XX	1527.79	1527.99	1528.19	nm
H61	BFLD-H61-10XX-XX	1528.18	1528.38	1528.58	nm
C61	BFLD-C61-10XX-XX	1528.57	1528.77	1528.97	nm
H60	BFLD-H60-10XX-XX	1528.96	1529.16	1529.36	nm
C60	BFLD-C60-10XX-XX	1529.35	1529.55	1529.75	nm
H59	BFLD-H59-10XX-XX	1529.74	1529.94	1530.14	nm
C59	BFLD-C59-10XX-XX	1530.13	1530.33	1530.53	nm
H58	BFLD-H58-10XX-XX	1530.52	1530.72	1530.92	nm
C58	BFLD-C58-10XX-XX	1530.92	1531.12	1531.32	nm
H57	BFLD-H57-10XX-XX	1531.31	1531.51	1531.71	nm
C57	BFLD-C57-10XX-XX	1531.70	1531.90	1532.10	nm
H56	BFLD-H56-10XX-XX	1532.09	1532.29	1532.49	nm
C56	BFLD-C56-10XX-XX	1532.48	1532.68	1532.88	nm
H55	BFLD-H55-10XX-XX	1532.87	1533.07	1533.27	nm
C55	BFLD-C55-10XX-XX	1533.27	1533.47	1533.67	nm
H54	BFLD-H54-10XX-XX	1533.66	1533.86	1534.06	nm
C54	BFLD-C54-10XX-XX	1534.05	1534.25	1534.45	nm
H53	BFLD-H53-10XX-XX	1534.44	1534.64	1534.84	nm
C53	BFLD-C53-10XX-XX	1534.84	1535.04	1535.24	nm
H52	BFLD-H52-10XX-XX	1535.23	1535.43	1535.63	nm
C52	BFLD-C52-10XX-XX	1535.62	1535.82	1536.02	nm
H51	BFLD-H51-10XX-XX	1536.02	1536.22	1536.42	nm
C51	BFLD-C51-10XX-XX	1536.41	1536.61	1536.81	nm
H50	BFLD-H50-10XX-XX	1536.80	1537.00	1537.20	nm
C50	BFLD-C50-10XX-XX	1537.20	1537.40	1537.60	nm
H49	BFLD-H49-10XX-XX	1537.59	1537.79	1537.99	nm
C49	BFLD-C49-10XX-XX	1537.99	1538.19	1538.39	nm
H48	BFLD-H48-10XX-XX	1538.38	1538.58	1538.78	nm
C48	BFLD-C48-10XX-XX	1538.78	1538.98	1539.18	nm
H47	BFLD-H47-10XX-XX	1539.17	1539.37	1539.57	nm
C47	BFLD-C47-10XX-XX	1539.57	1539.77	1539.97	nm
H46	BFLD-H46-10XX-XX	1539.96	1540.16	1540.36	nm
C46	BFLD-C46-10XX-XX	1540.36	1540.56	1540.76	nm
H45	BFLD-H45-10XX-XX	1540.75	1540.95	1541.15	nm
C45	BFLD-C45-10XX-XX	1541.15	1541.35	1541.55	nm
H44	BFLD-H44-10XX-XX	1541.55	1541.75	1541.95	nm
C44	BFLD-C44-10XX-XX	1541.94	1542.14	1542.34	nm
H43	BFLD-H43-10XX-XX	1542.34	1542.54	1542.74	nm
C43	BFLD-C43-10XX-XX	1542.74	1542.94	1543.14	nm
H42	BFLD-H42-10XX-XX	1543.13	1543.33	1543.53	nm
C42	BFLD-C42-10XX-XX	1543.53	1543.73	1543.93	nm
H41	BFLD-H41-10XX-XX	1543.93	1544.13	1544.33	nm
C41	BFLD-C41-10XX-XX	1544.33	1544.53	1544.73	nm
H40	BFLD-H40-10XX-XX	1544.72	1544.92	1545.12	nm
C40	BFLD-C40-10XX-XX	1545.12	1545.32	1545.52	nm
H39	BFLD-H39-10XX-XX	1545.52	1545.72	1545.92	nm
C39	BFLD-C39-10XX-XX	1545.92	1546.12	1546.32	nm
H38	BFLD-H38-10XX-XX	1546.32	1546.52	1546.72	nm
C38	BFLD-C38-10XX-XX	1546.72	1546.92	1547.12	nm
H37	BFLD-H37-10XX-XX	1547.12	1547.32	1547.52	nm
C37	BFLD-C37-10XX-XX	1547.52	1547.72	1547.92	nm
H36	BFLD-H36-10XX-XX	1547.91	1548.11	1548.31	nm
C36	BFLD-C36-10XX-XX	1548.31	1548.51	1548.71	nm
H35	BFLD-H35-10XX-XX	1548.71	1548.91	1549.11	nm
C35	BFLD-C35-10XX-XX	1549.12	1549.32	1549.52	nm
H34	BFLD-H34-10XX-XX	1549.52	1549.72	1549.92	nm
C34	BFLD-C34-10XX-XX	1549.92	1550.12	1550.32	nm
H33	BFLD-H33-10XX-XX	1550.32	1550.52	1550.72	nm
C33	BFLD-C33-10XX-XX	1550.72	1550.92	1551.12	nm
H32	BFLD-H32-10XX-XX	1551.12	1551.32	1551.52	nm
C32	BFLD-C32-10XX-XX	1551.52	1551.72	1551.92	nm
H31	BFLD-H31-10XX-XX	1551.92	1552.12	1552.32	nm
C31	BFLD-C31-10XX-XX	1552.32	1552.52	1552.72	nm
H30	BFLD-H30-10XX-XX	1552.73	1552.93	1553.13	nm
C30	BFLD-C30-10XX-XX	1553.13	1553.33	1553.53	nm
H29	BFLD-H29-10XX-XX	1553.53	1553.73	1553.93	nm
C29	BFLD-C29-10XX-XX	1553.93	1554.13	1554.33	nm
H28	BFLD-H28-10XX-XX	1554.34	1554.54	1554.74	nm
C28	BFLD-C28-10XX-XX	1554.74	1554.94	1555.14	nm
H27	BFLD-H27-10XX-XX	1555.14	1555.34	1555.54	nm
C27	BFLD-C27-10XX-XX	1555.55	1555.75	1555.95	nm
H26	BFLD-H26-10XX-XX	1555.95	1556.15	1556.35	nm
C26	BFLD-C26-10XX-XX	1556.35	1556.55	1556.75	nm
H25	BFLD-H25-10XX-XX	1556.76	1556.96	1557.16	nm
C25	BFLD-C25-10XX-XX	1557.16	1557.36	1557.56	nm
H24	BFLD-H24-10XX-XX	1557.57	1557.77	1557.97	nm
C24	BFLD-C24-10XX-XX	1557.97	1558.17	1558.37	nm
H23	BFLD-H23-10XX-XX	1558.38	1558.58	1558.78	nm
C23	BFLD-C23-10XX-XX	1558.78	1558.98	1559.18	nm
H22	BFLD-H22-10XX-XX	1559.19	1559.39	1559.59	nm
C22	BFLD-C22-10XX-XX	1559.59	1559.79	1559.99	nm
H21	BFLD-H21-10XX-XX	1560.00	1560.20	1560.40	nm
C21	BFLD-C21-10XX-XX	1560.41	1560.61	1560.81	nm
H20	BFLD-H20-10XX-XX	1560.81	1561.01	1561.21	nm
C20	BFLD-C20-10XX-XX	1561.22	1561.42	1561.62	nm
H19	BFLD-H19-10XX-XX	1561.63	1561.83	1562.03	nm
C19	BFLD-C19-10XX-XX	1562.03	1562.23	1562.43	nm
H18	BFLD-H18-10XX-XX	1562.44	1562.64	1562.84	nm
C18	BFLD-C18-10XX-XX	1562.85	1563.05	1563.25	nm
H17	BFLD-H17-10XX-XX	1563.25	1563.45	1563.65	nm
C17	BFLD-C17-10XX-XX	1563.66	1563.86	1564.06	nm
H16	BFLD-H16-10XX-XX	1564.07	1564.27	1564.47	nm
C16	BFLD-C16-10XX-XX	1564.48	1564.68	1564.88	nm
H15	BFLD-H15-10XX-XX	1564.89	1565.09	1565.29	nm
C15	BFLD-C15-10XX-XX	1565.30	1565.50	1565.70	nm
H14	BFLD-H14-10XX-XX	1565.70	1565.90	1566.10	nm
C14	BFLD-C14-10XX-XX	1566.11	1566.31	1566.51	nm
H13	BFLD-H13-10XX-XX	1566.52	1566.72	1566.92	nm
C13	BFLD-C13-10XX-XX	1566.93	1567.13	1567.33	nm
H12	BFLD-H12-10XX-XX	1567.34	1567.54	1567.74	nm
C12	BFLD-C12-10XX-XX	1567.75	1567.95	1568.15	nm
H11	BFLD-H11-10XX-XX	1568.16	1568.36	1568.56	nm
C11	BFLD-C11-10XX-XX	1568.57	1568.77	1568.97	nm
H10	BFLD-H10-10XX-XX	1568.98	1569.18	1569.38	nm
C10	BFLD-C10-10XX-XX	1569.39	1569.59	1569.79	nm
H09	BFLD-H09-10XX-XX	1569.81	1570.01	1570.21	nm
C09	BFLD-C09-10XX-XX	1570.22	1570.42	1570.62	nm
H08	BFLD-H08-10XX-XX	1570.63	1570.83	1571.03	nm
C08	BFLD-C08-10XX-XX	1571.04	1571.24	1571.44	nm
H07	BFLD-H07-10XX-XX	1571.45	1571.65	1571.85	nm
C07	BFLD-C07-10XX-XX	1571.86	1572.06	1572.26	nm
H06	BFLD-H06-10XX-XX	1572.28	1572.48	1572.68	nm
C06	BFLD-C06-10XX-XX	1572.69	1572.89	1573.09	nm
H05	BFLD-H05-10XX-XX	1573.10	1573.30	1573.50	nm
C05	BFLD-C05-10XX-XX	1573.51	1573.71	1573.91	nm
H04	BFLD-H04-10XX-XX	1573.93	1574.13	1574.33	nm
C04	BFLD-C04-10XX-XX	1574.34	1574.54	1574.74	nm
H03	BFLD-H03-10XX-XX	1574.75	1574.95	1575.15	nm
C03	BFLD-C03-10XX-XX	1575.17	1575.37	1575.57	nm
H02	BFLD-H02-10XX-XX	1575.58	1575.78	1575.98	nm
C02	BFLD-C02-10XX-XX	1576.00	1576.20	1576.40	nm
H01	BFLD-H01-10XX-XX	1576.41	1576.61	1576.81	nm
C01	BFLD-C01-10XX-XX	1576.83	1577.03	1577.23	nm
Q00	BFLD-Q00-10XX-XX	1577.24	1577.44	1577.64	nm
L00	BFLD-L00-10XX-XX	1577.66	1577.86	1578.06	nm
Q99	BFLD-Q99-10XX-XX	1578.07	1578.27	1578.47	nm
L99	BFLD-L99-10XX-XX	1578.49	1578.69	1578.89	nm
Q98	BFLD-Q98-10XX-XX	1578.90	1579.10	1579.30	nm
L98	BFLD-L98-10XX-XX	1579.32	1579.52	1579.72	nm
Q97	BFLD-Q97-10XX-XX	1579.73	1579.93	1580.13	nm
L97	BFLD-L97-10XX-XX	1580.15	1580.35	1580.55	nm
Q96	BFLD-Q96-10XX-XX	1580.57	1580.77	1580.97	nm
L96	BFLD-L96-10XX-XX	1580.98	1581.18	1581.38	nm
Q95	BFLD-Q95-10XX-XX	1581.40	1581.60	1581.80	nm
L95	BFLD-L95-10XX-XX	1581.82	1582.02	1582.22	nm
Q94	BFLD-Q94-10XX-XX	1582.24	1582.44	1582.64	nm
L94	BFLD-L94-10XX-XX	1582.65	1582.85	1583.05	nm
Q93	BFLD-Q93-10XX-XX	1583.07	1583.27	1583.47	nm
L93	BFLD-L93-10XX-XX	1583.49	1583.69	1583.89	nm
Q92	BFLD-Q92-10XX-XX	1583.91	1584.11	1584.31	nm
L92	BFLD-L92-10XX-XX	1584.33	1584.53	1584.73	nm
Q91	BFLD-Q91-10XX-XX	1584.75	1584.95	1585.15	nm
L91	BFLD-L91-10XX-XX	1585.16	1585.36	1585.56	nm
Q90	BFLD-Q90-10XX-XX	1585.58	1585.78	1585.98	nm
L90	BFLD-L90-10XX-XX	1586.00	1586.20	1586.40	nm
Q89	BFLD-Q89-10XX-XX	1586.42	1586.62	1586.82	nm
L89	BFLD-L89-10XX-XX	1586.84	1587.04	1587.24	nm
Q88	BFLD-Q88-10XX-XX	1587.26	1587.46	1587.66	nm
L88	BFLD-L88-10XX-XX	1587.68	1587.88	1588.08	nm
Q87	BFLD-Q87-10XX-XX	1588.10	1588.30	1588.50	nm
L87	BFLD-L87-10XX-XX	1588.53	1588.73	1588.93	nm
Q86	BFLD-Q86-10XX-XX	1588.95	1589.15	1589.35	nm
L86	BFLD-L86-10XX-XX	1589.37	1589.57	1589.77	nm
Q85	BFLD-Q85-10XX-XX	1589.79	1589.99	1590.19	nm
L85	BFLD-L85-10XX-XX	1590.21	1590.41	1590.61	nm
Q84	BFLD-Q84-10XX-XX	1590.63	1590.83	1591.03	nm
L84	BFLD-L84-10XX-XX	1591.06	1591.26	1591.46	nm
Q83	BFLD-Q83-10XX-XX	1591.48	1591.68	1591.88	nm
L83	BFLD-L83-10XX-XX	1591.90	1592.10	1592.30	nm
Q82	BFLD-Q82-10XX-XX	1592.32	1592.52	1592.72	nm
L82	BFLD-L82-10XX-XX	1592.75	1592.95	1593.15	nm
Q81	BFLD-Q81-10XX-XX	1593.17	1593.37	1593.57	nm
L81	BFLD-L81-10XX-XX	1593.59	1593.79	1593.99	nm
Q80	BFLD-Q80-10XX-XX	1594.02	1594.22	1594.42	nm
L80	BFLD-L80-10XX-XX	1594.44	1594.64	1594.84	nm
Q79	BFLD-Q79-10XX-XX	1594.86	1595.06	1595.26	nm
L79	BFLD-L79-10XX-XX	1595.29	1595.49	1595.69	nm
Q78	BFLD-Q78-10XX-XX	1595.71	1595.91	1596.11	nm
L78	BFLD-L78-10XX-XX	1596.14	1596.34	1596.54	nm
Q77	BFLD-Q77-10XX-XX	1596.56	1596.76	1596.96	nm
L77	BFLD-L77-10XX-XX	1596.99	1597.19	1597.39	nm
Q76	BFLD-Q76-10XX-XX	1597.42	1597.62	1597.82	nm
L76	BFLD-L76-10XX-XX	1597.84	1598.04	1598.24	nm
Q75	BFLD-Q75-10XX-XX	1598.27	1598.47	1598.67	nm
L75	BFLD-L75-10XX-XX	1598.69	1598.89	1599.09	nm
Q74	BFLD-Q74-10XX-XX	1599.12	1599.32	1599.52	nm
L74	BFLD-L74-10XX-XX	1599.55	1599.75	1599.95	nm
Q73	BFLD-Q73-10XX-XX	1599.97	1600.17	1600.37	nm
L73	BFLD-L73-10XX-XX	1600.40	1600.60	1600.80	nm
Q72	BFLD-Q72-10XX-XX	1600.83	1601.03	1601.23	nm
L72	BFLD-L72-10XX-XX	1601.26	1601.46	1601.66	nm
Q71	BFLD-Q71-10XX-XX	1601.68	1601.88	1602.08	nm
L71	BFLD-L71-10XX-XX	1602.11	1602.31	1602.51	nm
Q70	BFLD-Q70-10XX-XX	1602.54	1602.74	1602.94	nm
L70	BFLD-L70-10XX-XX	1602.97	1603.17	1603.37	nm
Q69	BFLD-Q69-10XX-XX	1603.40	1603.60	1603.80	nm
L69	BFLD-L69-10XX-XX	1603.83	1604.03	1604.23	nm
Q68	BFLD-Q68-10XX-XX	1604.26	1604.46	1604.66	nm
L68	BFLD-L68-10XX-XX	1604.68	1604.88	1605.08	nm
Q67	BFLD-Q67-10XX-XX	1605.11	1605.31	1605.51	nm
L67	BFLD-L67-10XX-XX	1605.54	1605.74	1605.94	nm
Q66	BFLD-Q66-10XX-XX	1605.97	1606.17	1606.37	nm
L66	BFLD-L66-10XX-XX	1606.40	1606.60	1606.80	nm
Q65	BFLD-Q65-10XX-XX	1606.84	1607.04	1607.24	nm
L65	BFLD-L65-10XX-XX	1607.27	1607.47	1607.67	nm
Q64	BFLD-Q64-10XX-XX	1607.70	1607.90	1608.10	nm
L64	BFLD-L64-10XX-XX	1608.13	1608.33	1608.53	nm
Q63	BFLD-Q63-10XX-XX	1608.56	1608.76	1608.96	nm
L63	BFLD-L63-10XX-XX	1608.99	1609.19	1609.39	nm
Q62	BFLD-Q62-10XX-XX	1609.42	1609.62	1609.82	nm
L62	BFLD-L62-10XX-XX	1609.86	1610.06	1610.26	nm
Q61	BFLD-Q61-10XX-XX	1610.29	1610.49	1610.69	nm
L61	BFLD-L61-10XX-XX	1610.72	1610.92	1611.12	nm

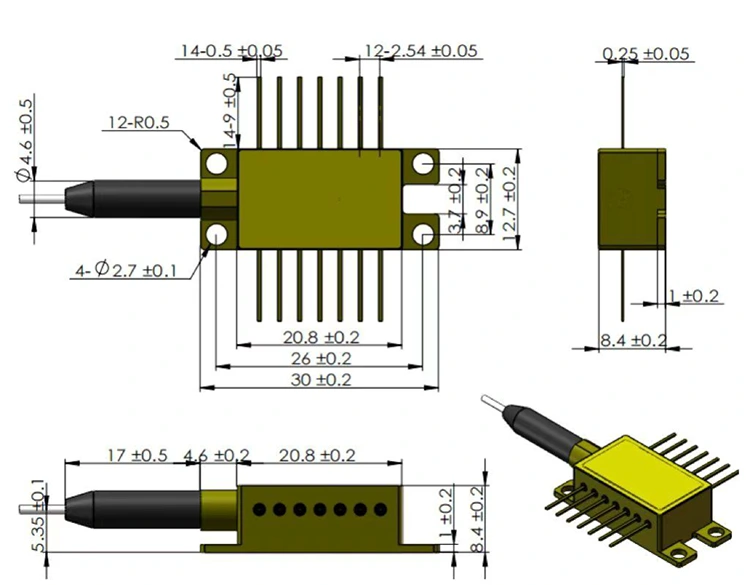

Package and Pin Definition

Package Type: 14-pin Hermetic Butterfly Package

Built-in Components: Optical isolator, thermoelectric cooler (TEC), thermistor, monitor photodiode

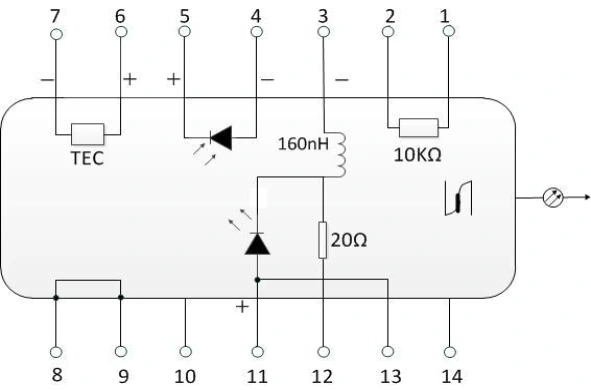

Type 1 Pin-out

Pin	Description	Pin	Description
1	Thermistor	14	NC (No Connection)
2	Thermistor	13	Laser Anode (+)
3	Laser DC Bias (Cathode) (-)	12	Laser RF Cathode (-)
4	PD Monitor Anode (-)	11	Laser Anode (+)
5	PD Monitor Cathode (+)	10	NC (No Connection)
6	TEC (+)	9	Case Ground
7	TEC (-)	8	Case Ground

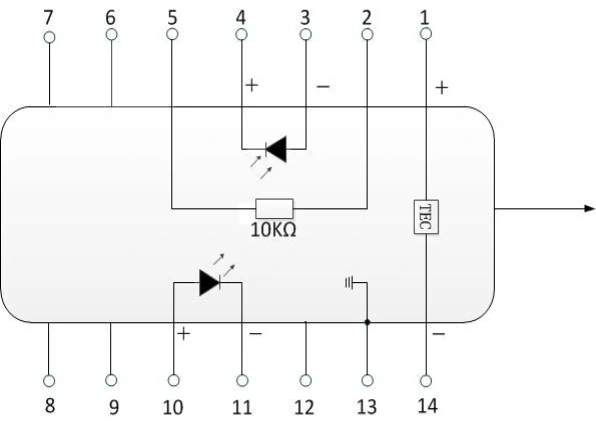

Type 2 Pin-out

Pin	Description	Pin	Description
1	TEC (+)	14	TEC (-)
2	Thermistor	13	Case Ground
3	PD Monitor Anode (-)	12	NC (No Connection)
4	PD Monitor Cathode (+)	11	Laser Cathode (-)
5	Thermistor	10	Laser Anode (+)
6	NC (No Connection)	9	NC (No Connection)
7	NC (No Connection)	8	NC (No Connection)

Ordering Information-10mW C+L Band DWDM DFB Laser Diode

Model Nomenclature

BFLD - XXXX - XX - XX - XX (-X)

Example: BFLD-C34-10SM-FA

Field	Code	Description
Laser Type	BFLD	ButterflyDFB Laser Diode
Wavelength	Cxx /Hxx/ Lxx/Qxx	C63-C01orH62-H01 or L00-L61 or Q00-Q61
Output Power	10	10mW
Fiber Type	SM / PM	SM = Single-mode (SMF-28e); PM = Polarization-maintaining (PM1550)
Connector Type	FA / SA	FA = FC/APC; SA = SC/APC; Other connectors available
Pinout	NULL / 2	NULL = Type 1 (default); 2 = Type 2 pump

Frequently Asked Questions (FAQ)

Q: What is the difference between Type 1 and Type 2 pinout configurations?

A: Type 1 follows the standard telecom butterfly pin configuration, commonly used for DWDM transmitters and high-speed optical communication applications. It provides dedicated connections for laser bias, RF modulation, TEC, thermistor, and monitor photodiode signals to ensure compatibility with telecom laser driver circuits.

Type 2 is optimized for pump laser applications, with a simplified electrical interface and a different TEC arrangement for high-power pump operation and thermal management.

Both configurations use the same 14-pin butterfly mechanical package, but their electrical pin assignments are different. They are mechanically compatible but require different PCB layouts and driver designs.

Q: Why is a built-in optical isolator important for DWDM and sensing applications?

A:In DWDM transmission and fiber sensing systems, optical reflections from connectors, fiber interfaces, and optical components may couple back into the laser cavity. This optical feedback can lead to mode instability, wavelength fluctuation, increased noise, and degraded system performance.

A built-in optical isolator with≥30 dB isolation suppresses these back-reflections, improving wavelength stability, reducing feedback-induced noise, and ensuring reliable operation in applications such as coherent detection, fiber sensing, and low-noise optical transmission.

Q: Can I get a custom wavelength outside the standard C+L band list?

A: Yes. We support customized wavelengths based on specific application requirements. For DWDM laser products, customized wavelengths are available within our qualified wavelength range (for example, 1527–1611 nm, depending on chip availability).

Other wavelength bands, including O-band (1260–1360 nm) and S-band (1460–1530 nm), can also be considered for specific applications.

Custom wavelength feasibility depends on laser chip availability, grating design, and production schedule. Please contact us with your target wavelength and application details for evaluation.

Related Products

· DWDM 14PIN Butterfly Analog Laser for CATV -ITU-T Grid CH18-64 1526.44~1563.05nm, high linearity RF-over-fiber transmission

· LAN-WDM 10mW Fiber Coupled Laser - 1266.5~1345.5nm optional, designed for 400G/800G optical transceivers

· CWDM 1270-1650nm DFB Laser Source - for optical communication and distributed fiber-optic sensing

· 1550nm 1W Fiber Coupled Laser - high-power source for fiber-laser seeding, optical amplification, and industrial photonics

· 1550nm DFB 100KHz BTF Narrow Linewidth Laser - low phase noise source for coherent communication, LiDAR, and precision sensing

Datasheet-10mW C+L Band DWDM DFB Laser Diode

Datasheet

Bookmark this page for easy future reference.

Related Category

Send Inquiry

Contact Info



Address

Room 901, Building A, Rongchao New Era Plaza, No. 3 Lanqing 1st Road, Luhu Community, Guanhu Subdistrict, Longhua District, Shenzhen, 518110, China


Tel

+86-13322933691


Email

sales06@boxoptronics.com

Looking for competitive pricing on bulk orders? Send an inquiry to Box Optronics for high-performance DFB lasers, SLEDs, and PM fiber devices. Get a professional price quotation within 24 hours.
