1. Introduction of the FP Coaxial Pigtail Laser Diode
2. Technical Specifications
3. Product Features
4. Applications

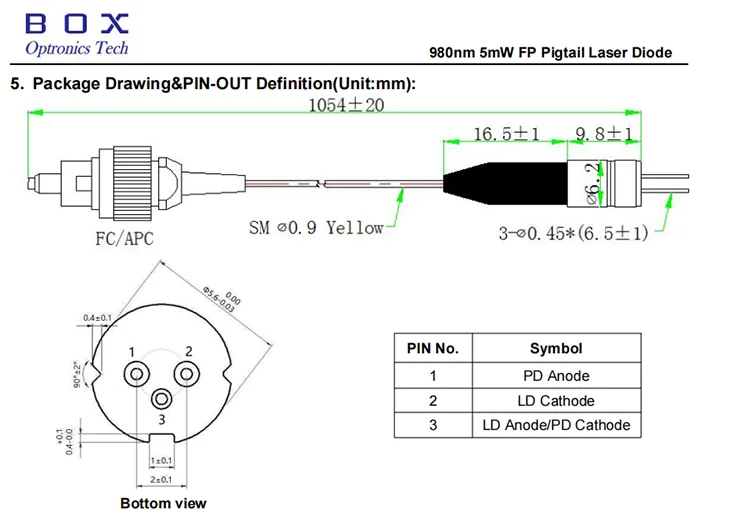

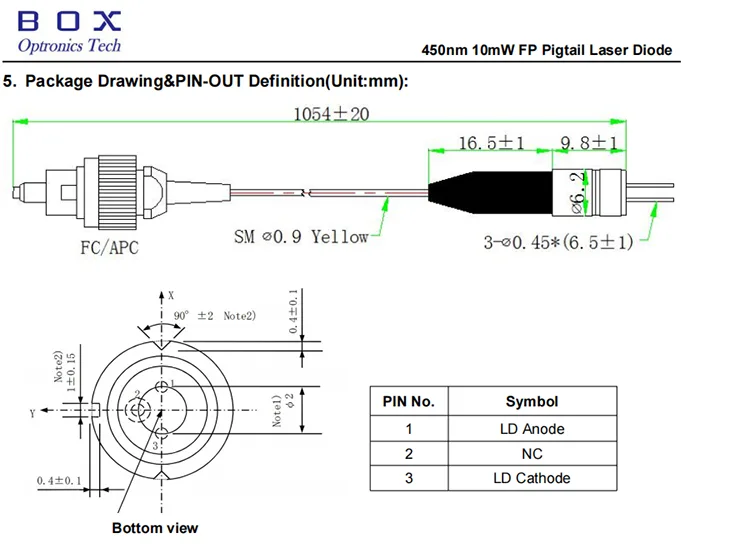

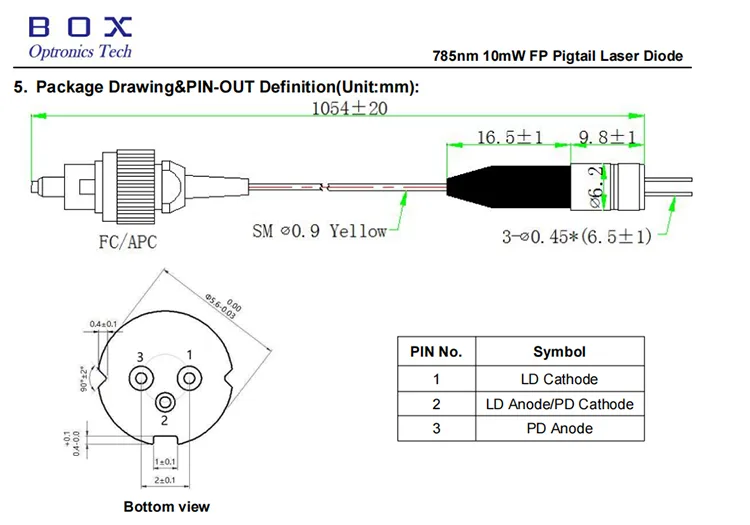

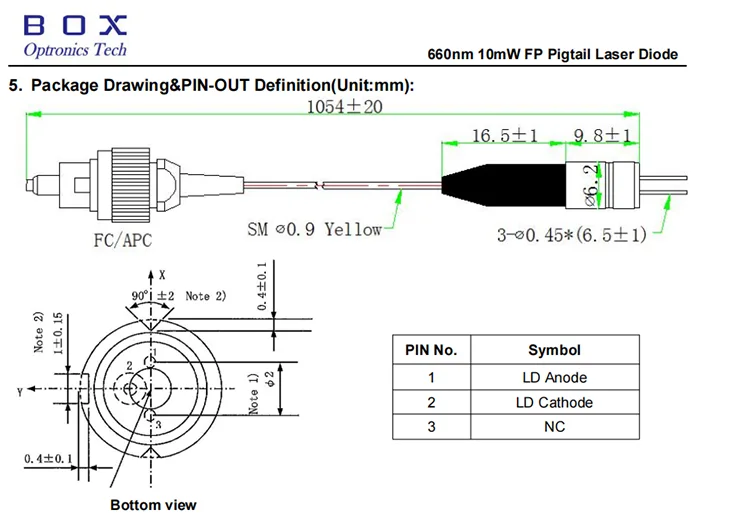

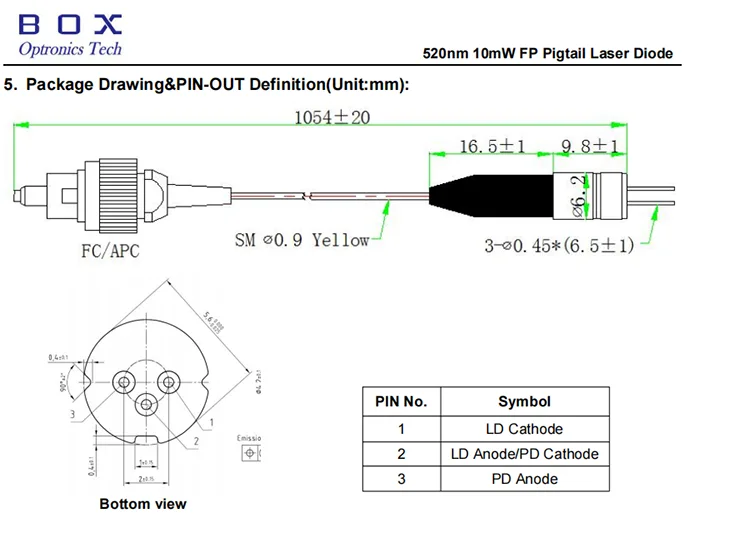

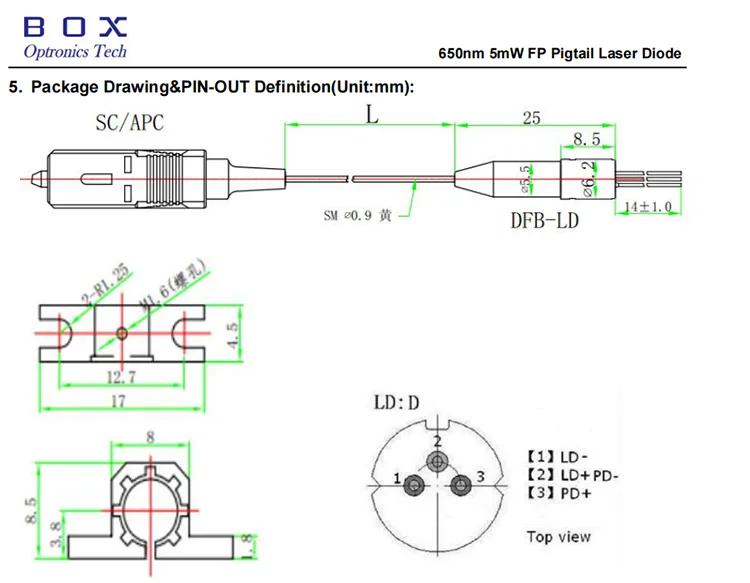

5. Package Drawing&PIN-OUT Definition(Unit:mm)
6. Ordering Information
7. Datasheet
8. Terms of quote and payment
9. Lead time
10. Quality Assurance and After-Sales Service
This FP Coaxial Pigtail Laser Diode is a single-mode Fabry-Perot laser diode, wavelength 450nm, 520nm, 650nm, 660nm, 785nm, 850nm, and 980nm are available, and output power is 5 mW or 10 mW. The connector is FC/APC or SC/APC. High reliability and long life. Telcordia GR-468 reliability test standard. These multi-wavelength FP laser diodes provide flexible, reliable, and high-performance solutions for a variety of visible and near-infrared applications.
|
Parameter |
Symbol |
Test Condition |
Min |
Typ |
Max |
Unit |
|
Center wavelength |
λC |
POP = PF |
440 |
450 |
460 |
nm |
|
Optical output power |
PF |
IF = 65mA |
10 |
20 |
- |
mW |
|
Threshold current |
ITH |
CW |
- |
22 |
40 |
mA |
|
Operating voltage |
VF |
CW |
- |
5.1 |
6.0 |
V |
|
Operating current |
IF |
CW |
- |
70 |
90 |
mA |
|
Fiber type |
- |
- |
460-HP |
|||
|
Parameter |
Symbol |
Test Condition |
Min |
Typ |
Max |
Unit |
|
Center wavelength |
λC |
POP = PF |
510 |
520 |
530 |
nm |
|
Optical output power |
PF |
IF = 65mA |
5.0 |
- |
- |
mW |
|
Threshold current |
ITH |
CW |
- |
22 |
40 |
mA |
|
Operating voltage |
VF |
CW |
- |
5.8 |
6.5 |
V |
|
Operating current |
IF |
CW |
- |
60 |
80 |
mA |
|
Fiber type |
- |
- |
460-HP |
|||
|
Parameter |
Symbol |
Test Condition |
Min |
Typ |
Max |
Unit |
|
Center wavelength |
λC |
POP = PF |
640 |
650 |
660 |
nm |
|
Optical output power |
PF |
IF = 65mA |
- |
5 |
- |
mW |
|
Threshold current |
ITH |
CW |
- |
55 |
- |
mA |
|
Operating voltage |
VF |
CW |
- |
2.1 |
2.5 |
V |
|
Operating current |
IF |
CW |
- |
- |
105 |
mA |
|
Parameter |
Symbol |
Test Condition |
Min |
Typ |
Max |
Unit |
|
Center wavelength |
λC |
POP = PF |
652 |
660 |
670 |
nm |
|
Optical output power |
PF |
IF =70mA |
10 |
- |
- |
mW |
|
Threshold current |
ITH |
CW |
- |
40 |
90 |
mA |
|
Operating voltage |
VF |
CW |
- |
2.4 |
3.0 |
V |
|
Operating current |
IF |
CW |
- |
70 |
120 |
mA |
|
Fiber type |
- |
- |
630HP |
|||
|
Parameter |
Symbol |
Test Condition |
Min |
Typ |
Max |
Unit |
|
Center wavelength |
λC |
POP = PF |
780 |
790 |
800 |
nm |
|
Optical output power |
PF |
IF =70mA |
10 |
- |
-- |
mW |
|
Threshold current |
ITH |
CW |
- |
30 |
45 |
mA |
|
Operating voltage |
VF |
CW |
- |
1.9 |
2.2 |
V |
|
Operating current |
IF |
CW |
- |
70 |
120 |
mA |
|
Slope efficiency |
SE |
CW |
1 |
1.1 |
1.2 |
W/A |
|
Monitor PD |
IM |
- |
- |
0.2 |
0.2 |
mA |
|
Fiber type |
- |
- |
780HP |
|||
|
Parameter |
Symbol |
Test Condition |
Min |
Typ |
Max |
Unit |
|
Center wavelength |
λC |
POP = PF |
840 |
850 |
860 |
nm |
|
Optical output power |
PF |
IF =60mA |
10 |
- |
- |
mW |
|
Threshold current |
ITH |
CW |
- |
16 |
20 |
mA |
|
Operating voltage |
VF |
CW |
- |
2.1 |
2.3 |
V |
|
Operating current |
IF |
CW |
- |
45 |
60 |
mA |
|
Slope efficiency |
SE |
CW |
- |
0.95 |
- |
W/A |
|
Monitor PD |
IM |
- |
0.05 |
0.13 |
0.5 |
mA |
|
Fiber type |
- |
- |
780HP |
|||
|
Parameter |
Symbol |
Test Condition |
Min |
Typ |
Max |
Unit |
|
Center wavelength |
λC |
POP = PF |
965 |
980 |
990 |
nm |
|
Optical output power |
PF |
IF =60mA |
5 |
- |
- |
mW |
|
Threshold current |
ITH |
CW |
- |
12 |
20 |
mA |
|
Operating voltage |
VF |
CW |
- |
1.55 |
2.0 |
V |
|
Operating current |
IF |
CW |
- |
30 |
50 |
mA |
|
Slope efficiency |
SE |
CW |
0.64 |
0.8 |
- |
W/A |
|
Monitor PD |
IM |
- |
0.08 |
0.3 |
0.5 |
mA |
|
Fiber type |
- |
- |
Hi1060 |
|||
● Single mode Fabry-Perot(FP) laser diode;
● Wavelength options: 450–980nm;
● Coaxial fiber-coupled output, CW operation;
● High reliability, long life;
● Telcordia GR-468 reliability test standard.
● Indication;
● Light pen;
● Printers;
● Laboratory and biomedical laser;
● Optical sensing.
|
BLD |
-X |
XX |
XX |
X |
-XX |
|
LD |
Chiptype |
Wavelength |
Output power |
PIN-OUT |
Connector |
|
Laser diode |
F: FP |
450: 450nm 520: 520nm |
10: 10mW Other |
F: Type F |
FA: FC/APC |
|
650: 650nm |
02: 2mW 05: 5mW Other |
D: Type D |
FA: FC/APC SA: SC/APC Other |
||
|
660: 660nm 785: 785nm 850: 850nm |
10: 10mW Other |
D: Type D |
FA: FC/APC |
||
|
980: 980nm |
5: 5mW Other |
D: Type D |
FA: FC/APC |
eg: BLD-F78510D-FA
(Order information: FP Coaxial Pigtail Laser Diode, 785nm 10mW, type D pin-out, with FC/APC connector).
● Terms of quote
(1) EXW:
If you have a DHL/ UPS/ FedEx account, Box Optronics suggest using the EXW. We ship via your account; we don't charge the shipping cost.
(2) DAP:
If you don't have an account, please prepay the shipping cost for the products.
(3) Other
● Terms of payment
PayPal and T/T are available.
Production: around 10 working days. (If there are some in stock, it will be faster shipped.)
The international logistics: 3-5 working days.
● Warranty Period:
Free repair or replacement for non-human-induced defects within 1 year from purchase. Paid maintenance services available after 1 year.
● Exclusions from Free Warranty:
During the free warranty period, free repair or replacement services will be provided for faults caused by product quality issues. However, Box Optronics retains the right to refuse free repair services in the following cases within the warranty period:
(1) Damage caused by natural factors (e.g., lightning, dust) or environmental influences.
(2) Malfunctions due to improper operation by the user.
(3) Obvious physical damage caused by human error.
(4) Unauthorized disassembly, modification, or repair.
(5) Altered or incomplete warranty labels on the housing.
(6) Damage or loss during transportation.
