1064nm 200mW DFB Butterfly Laser Diode

Table of Contents

1 Introduction of the 1064nm 200mW DFB Butterfly Laser Diode

2 Technical Specifications

3 Product Features

4 Typical Applications

5 Product details

6 Ordering Information

7 Datasheet and testsheet

8 Terms of quote and payment

9 Lead time

10 Operation Notes

11 Quality Assurance and After-Sales Service

Product Introduction

1064nm 200mW DFB Butterfly Laser Diode with a multi-quantum well DFB structure and 14-pin butterfly package. +/-2nm wavelength tolerance. It integrates TEC, a monitor photodiode, and a thermistor, supports SM Hi1060 or PM980 fiber, with a typical 200mW output power. Ideal for seed source, spectroscopy, and optical sensing. Note ESD protection, and do not exceed absolute maximum ratings.

Product Specifications

Product Features

● SM fiber or PM fiber pigtail;

● 200mW high output power;

● High reliability;

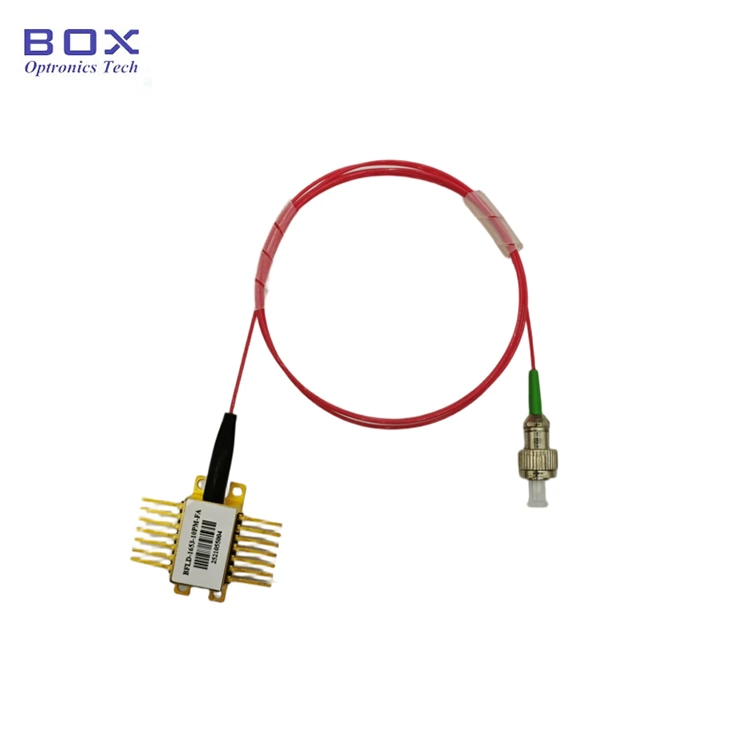

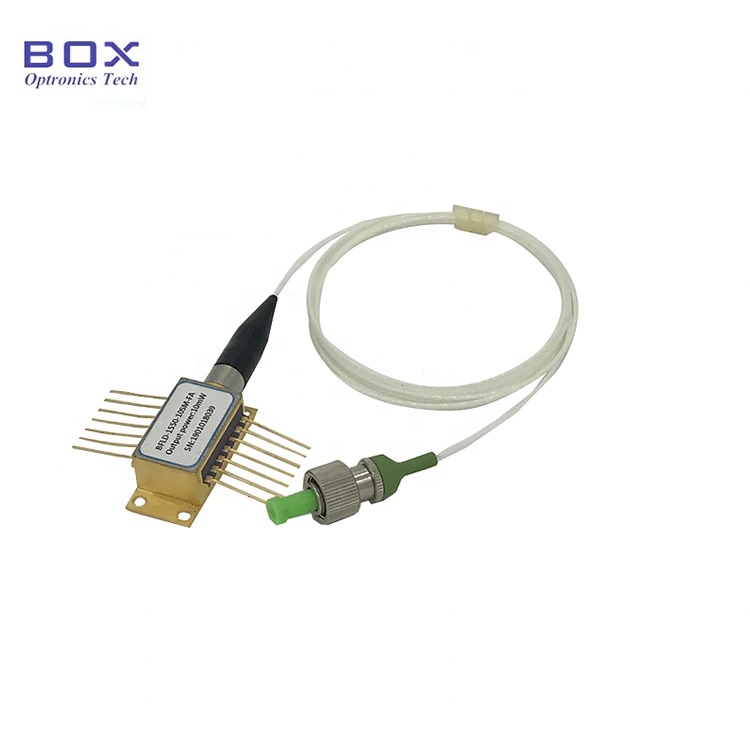

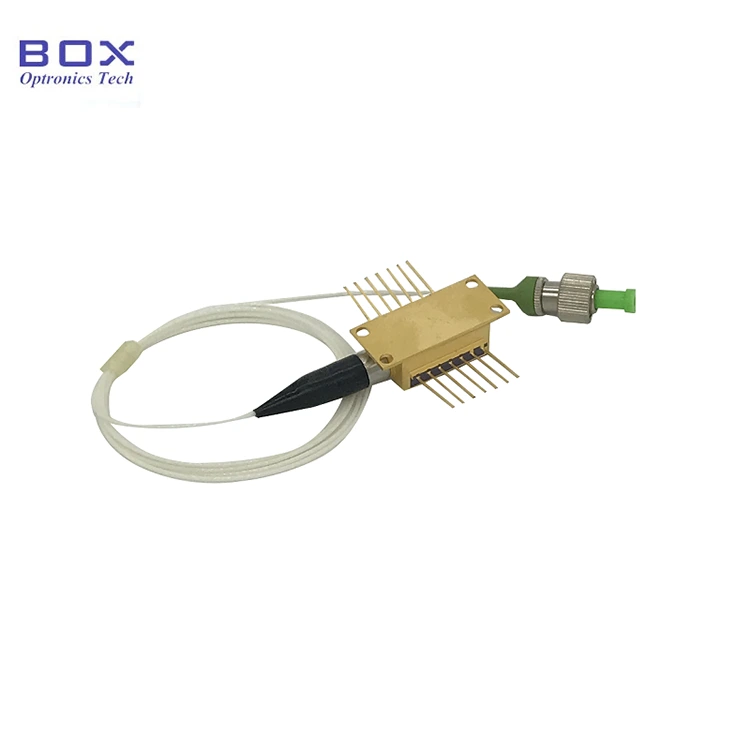

● 14-pin BTF package with thermoelectric cooler and monitor photodiode.

Product Applications

● Seed source for lasers;

● Spectroscopy;

● Optical sensing.

Product Details

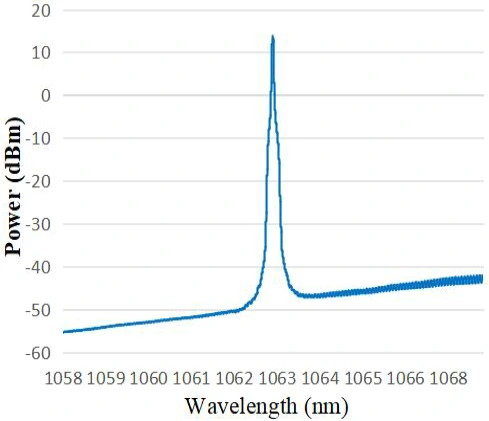

● Typical spectrum: 1064nm, +/-2nm WL tolerance.

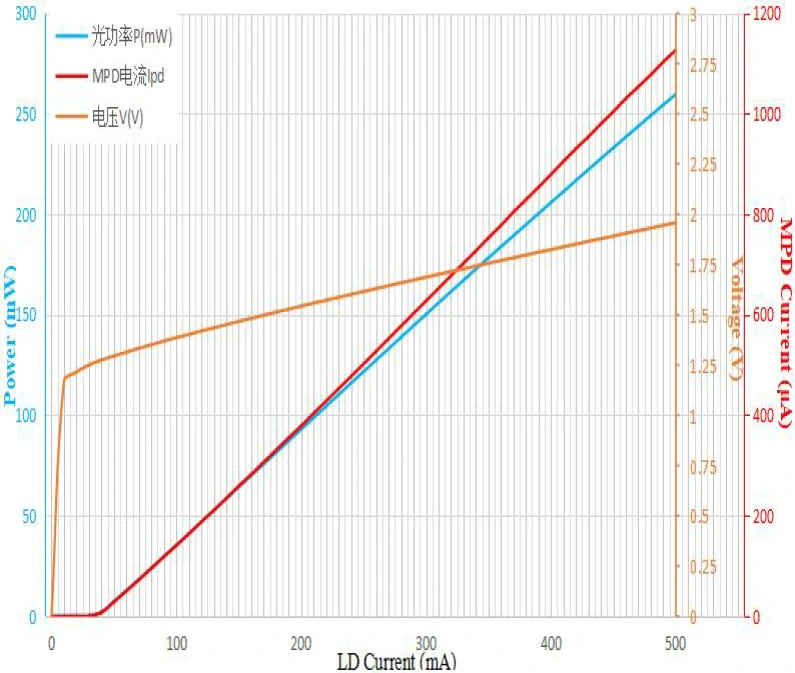

● PIV

● Standard accessories

*Standalone device; no built-in driver (external driver optional).

Ordering information

eg: BFLD-1064-2HPM-FA

(Order information: 1064nm 200mW DFB Butterfly Laser Diode, with PM fiber, FC/APC connector, pump pin).
