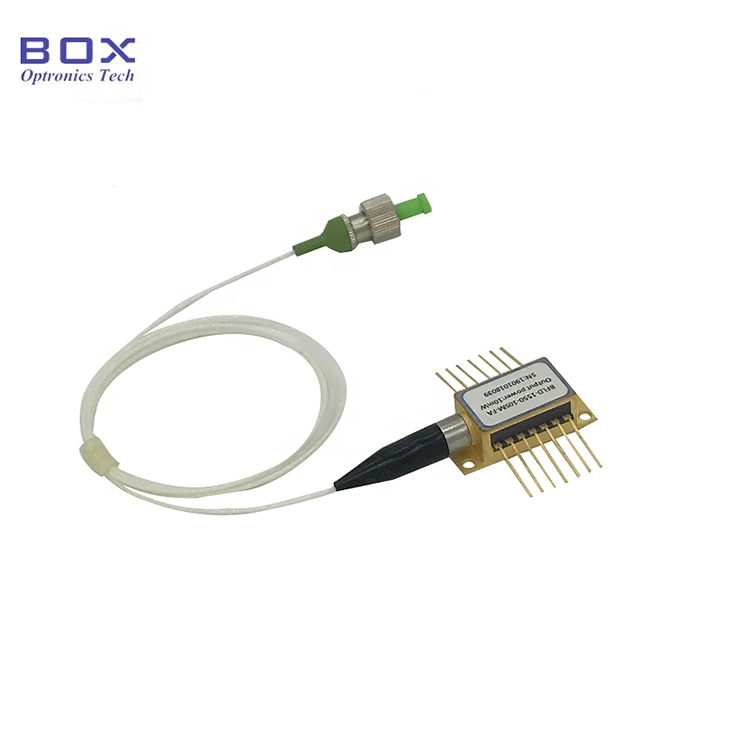

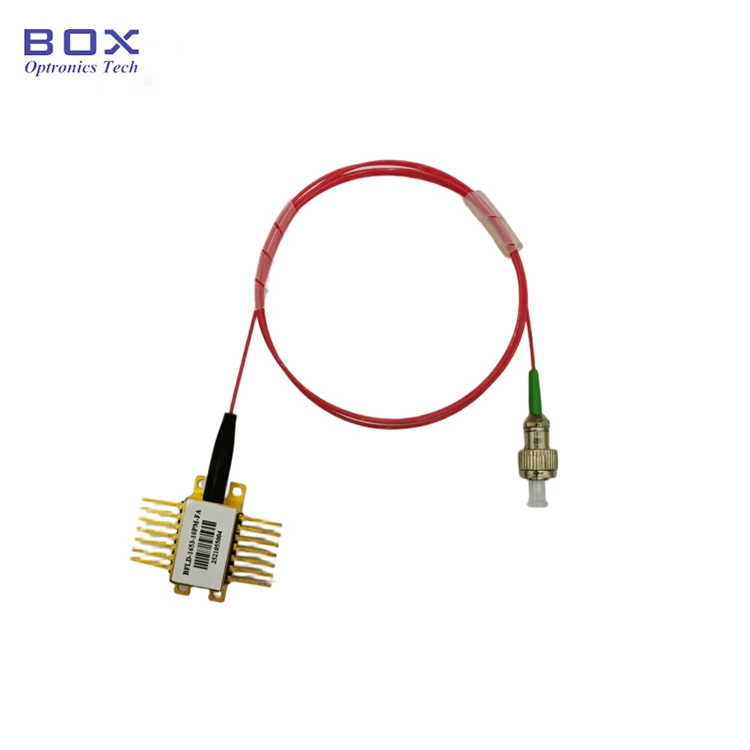

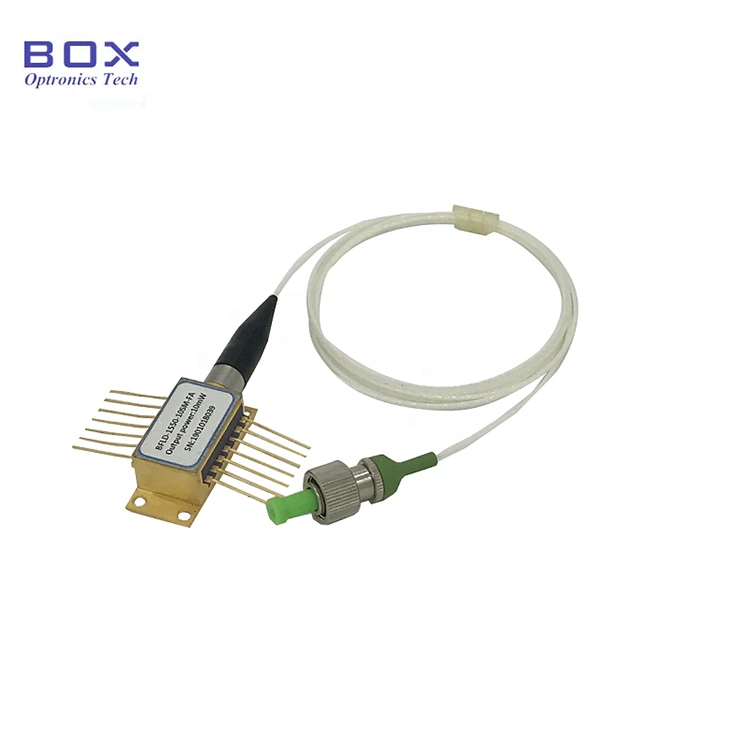

1550nm 10mW DFB Butterfly Laser Diode

Table of Contents

1. Introduction of the 1550nm 10mW DFB Butterfly Laser Diode

2. Technical Specifications

3. Product Features

4. Typical Applications

5. Product details

6. Ordering Information

7. Datasheet and testsheet

8. Terms of quote and payment

9. Lead time

10. Operation Notes

11. Quality Assurance and After-Sales Service

Product Introduction

This is a 1550nm DFB laser with a 14-pin butterfly package, built-in TEC, and thermistor. It features a stable wavelength, 10mW output power, a typical 40dB side mode suppression ratio, and low threshold current. Optional with SM/PM fiber, wide operating temperature, and high reliability, suitable for fiber communication, optical instruments, and fiber sensing. Please control the drive current and temperature strictly, and avoid overcurrent damage.

Product Specifications

Product Features

● Multi-Quantum Well (MQW) Distributed Feedback (DFB) lasers;

● SMF-28e or PMF-1550 pigtail;

● 14-pin BTF package with TEC and Monitor PD;

● Wide operating temperature range -20~+70℃.

Product Applications

● Optical fiber communications;

● Optical instrument;

● Optical fiber sensor;

● Light source.

Product Details

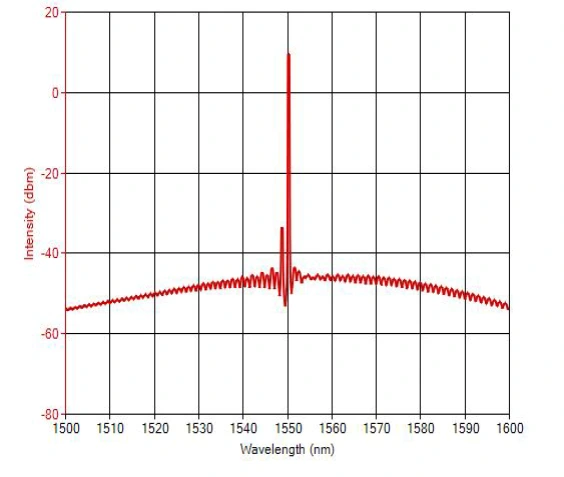

● Typical spectrum: 1550nm, WL tolerance +/-3nm.

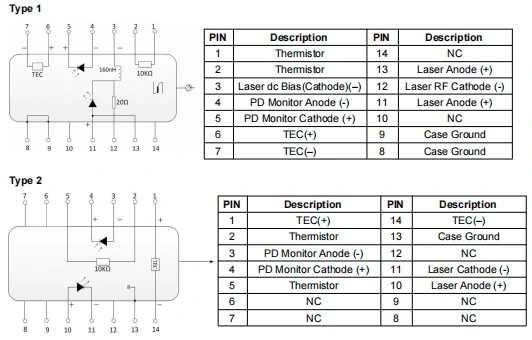

● PIN-OUT Definition-1550nm 10mW DFB Butterfly Laser Diode

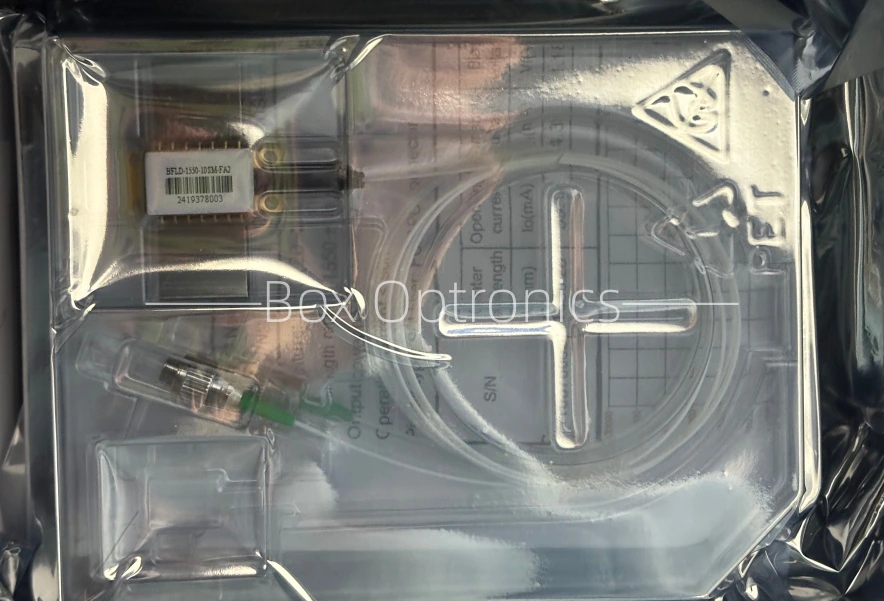

● Packing example

*Standalone device without drive; a module package integrated with driver circuits is optional.

Ordering information

eg: BFLD-1550-10SM-FA2

(Order information: 1550nm 10mW DFB Butterfly Laser Diode, SM fiber, with FC/APC connector, type2 pin-out).
