1625nm DFB BTF Laser Diode

Table of Contents

1. Introduction of the 1625nm DFB BTF Laser Diode

2. Technical Specifications

3. Product Features

4. Typical Applications

5. Product details

6. Ordering Information

7. Datasheet and testsheet

8. Terms of quote and payment

9. Lead time

10. Operation Notes

11. Quality Assurance and After-Sales Service

Product Introduction

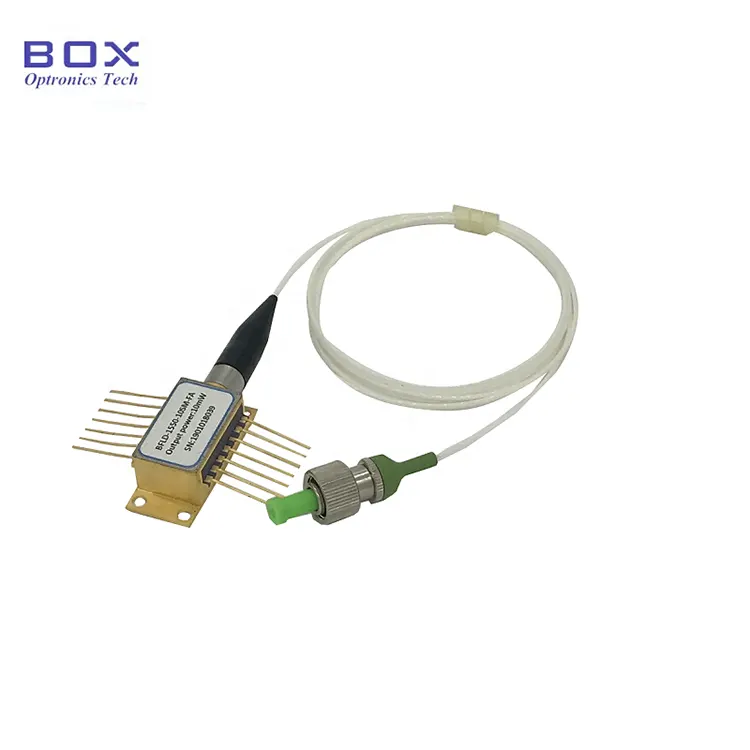

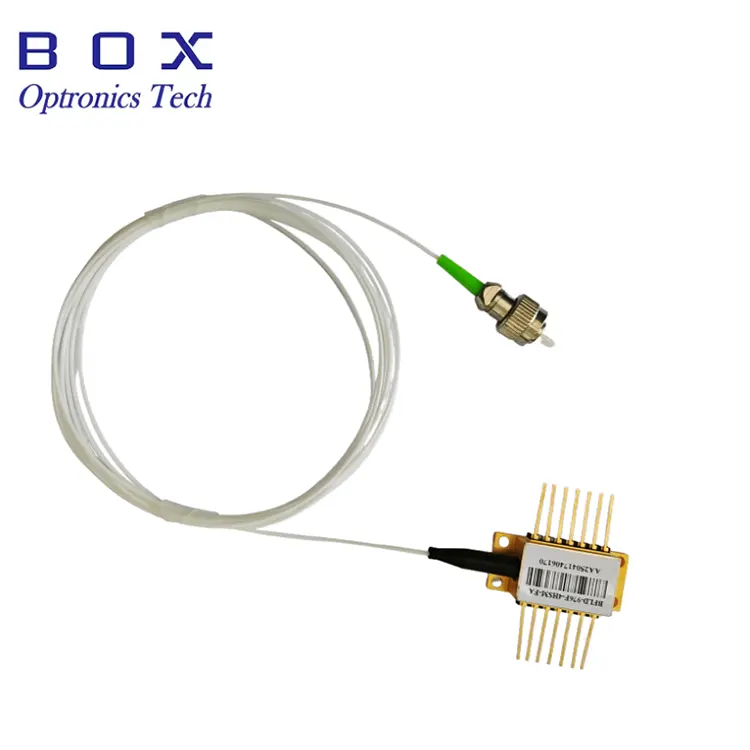

1625nm 10mW DFB butterfly laser diode with multi-quantum well DFB structure and 14-pin butterfly package. It integrates TEC and thermistor, supports SMF-28e single-mode or polarization-maintaining fiber output, with a central wavelength of 1625nm and a typical output power 10mW. It features high SMSR and excellent spectral performance. Please control drive current, voltage, and fusion temperature, provide ESD and temperature protection, and do not exceed absolute maximum ratings.

Product Specifications

Product Features-

● Multi-Quantum Well (MQW) Distributed Feedback(DFB) lasers;

● Fiber type can be SMF-28e or PM fiber;

● Stable 10mW output, high SMSR and good optical isolation;

● Wide temperature range: -20~ +70℃.

Product Applications

● Optical fiber communications;

● Optical fiber sensor;

● Ethylene(C2H4) gas sensing.

Product Details

● Typical spectrum: 1625nm, +/-3nm WL tolerance.

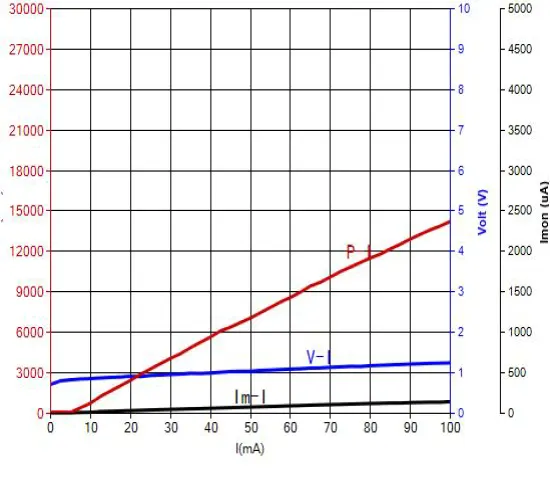

● PIV-1625nm 10mW DFB BTF Laser Diode

Ordering information

eg: BFLD-1625-10SM-FA

(Order information: 1625nm DFB BTF Laser Diode, 10mW output power, with SM fiber, FC/APC connector, type1 pin-out).
