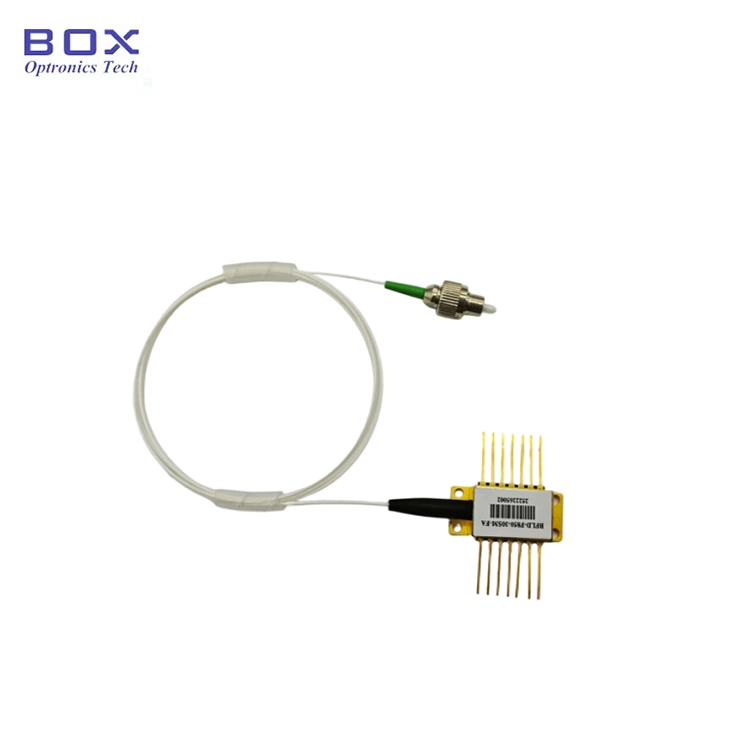

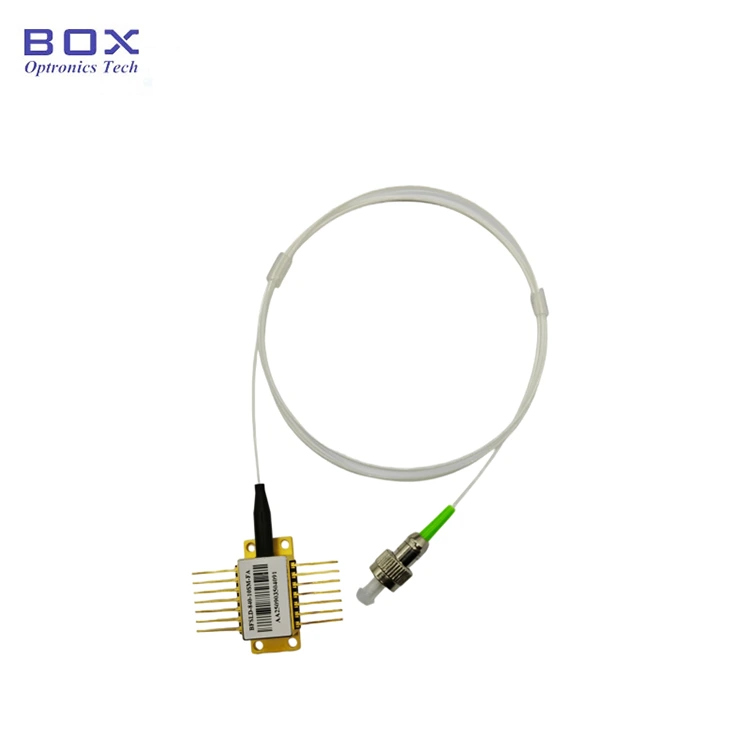

1580nm DFB SM PM Laser Diode features a premium MQW DFB chip with 1580nm center wavelength (±1nm tolerance) and a typical 40dB side-mode suppression ratio. Designed with low threshold current, low power consumption, and high reliability, it comes fully integrated with a thermistor, TEC, and monitoring diode for continuous stable performance. Perfectly suited for gas detection, passive device testing, and fiber optic sensing applications.
|
Parameter |
Symbol |
Condition |
Min. |
Typ. |
Max. |
Unit |
|
Operating wavelength |
λ |
CW, 25℃ |
1579 |
1580 |
1581 |
nm |
|
Optical output power |
PF |
- |
- |
10 |
- |
mW |
|
Threshold current |
ITH |
25℃ |
- |
8 |
15 |
mA |
|
Operating current |
IOP |
CW |
- |
- |
90 |
mA |
|
Operating voltage |
VOP |
25℃ |
- |
1.1 |
2.0 |
V |
|
Side mode suppression ratio |
SMSR |
- |
35 |
40 |
- |
dB |
|
Optical isolation |
ISO |
25℃ |
35 |
- |
- |
dB |
|
Spectral width |
Δλ |
- |
- |
- |
10 |
Mhz |
|
Polarization extinction ratio |
ER |
PM fiber |
18 |
- |
- |
dB |
|
Wavelength temp. coefficient |
Δλ/ΔT |
- |
- |
0.08 |
0.12 |
nm/℃ |
|
Monitor Current |
IMON |
VRM=5V |
50 |
- |
1500 |
uA |
|
MPD Dark current |
ID |
VRM=5V |
- |
- |
50 |
uA |
|
Thermistor resistance |
RTH |
25℃ |
9.5 |
10 |
10.5 |
kΩ |
|
Thermistor B-value |
β |
25℃/80℃ |
- |
3950 |
- |
K |
● Multi-Quantum Well (MQW) Distributed Feedback (DFB) lasers;
● 14-pin butterfly package with high stability;
● Integrated thermistor, TEC and monitor photodiode;
● Low threshold current and low power consumption;
● Fiber type can be SMF-28e or PM fiber.
● Optical fiber sensor;
● Light source for test and measurement;
● Gas detection systems;
● Passive optical device testing;
● Optical fiber communications.

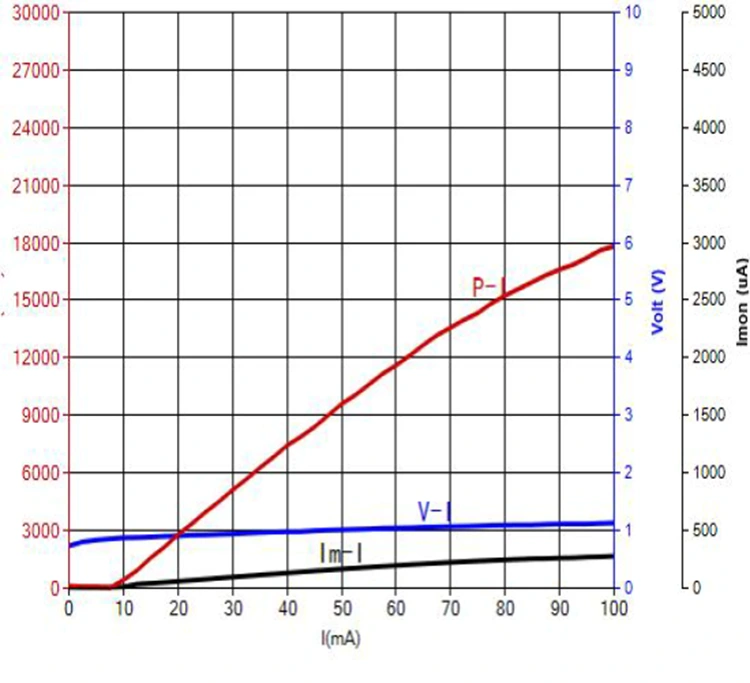

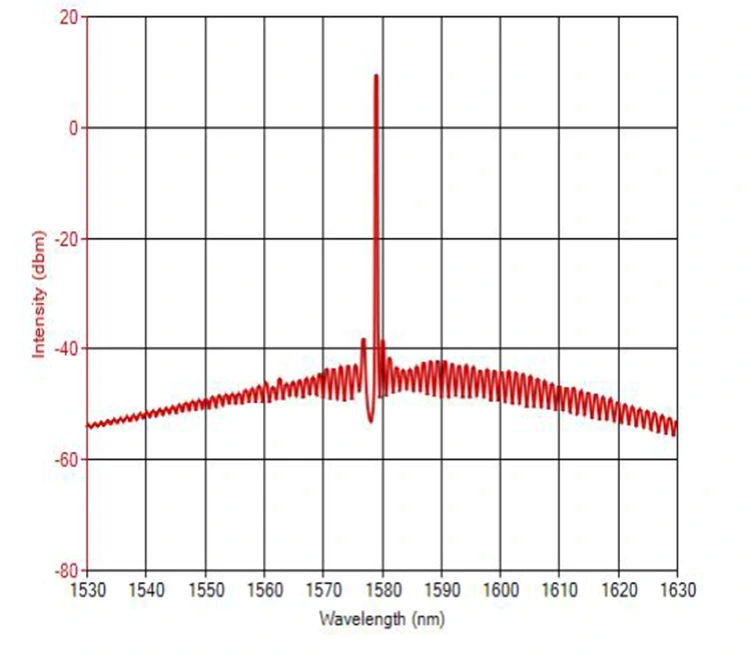

● Typical spectrum and PIV: 1580nm 10mW, +/-1nm WL tolerance.
● Package drawing&PIN-OUT Definition(Unit:mm)-1580nm DFB SM PM Laser Diode

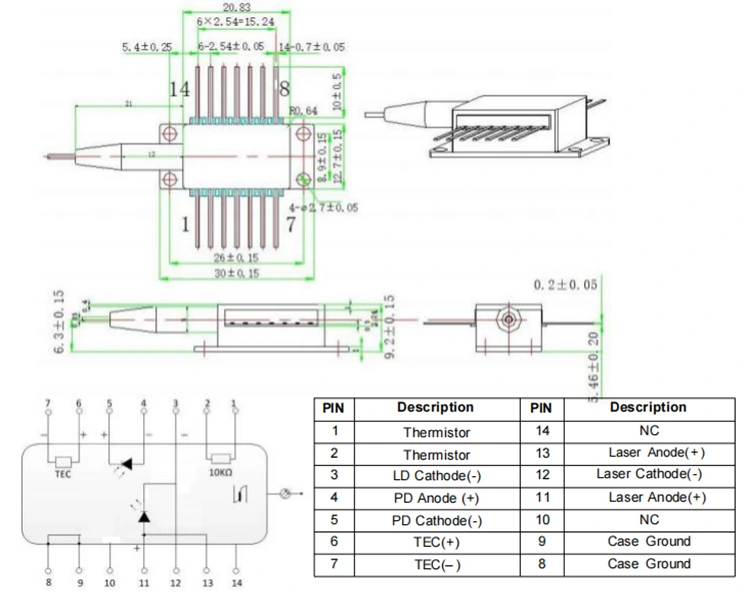

>>>Type1 pin-out

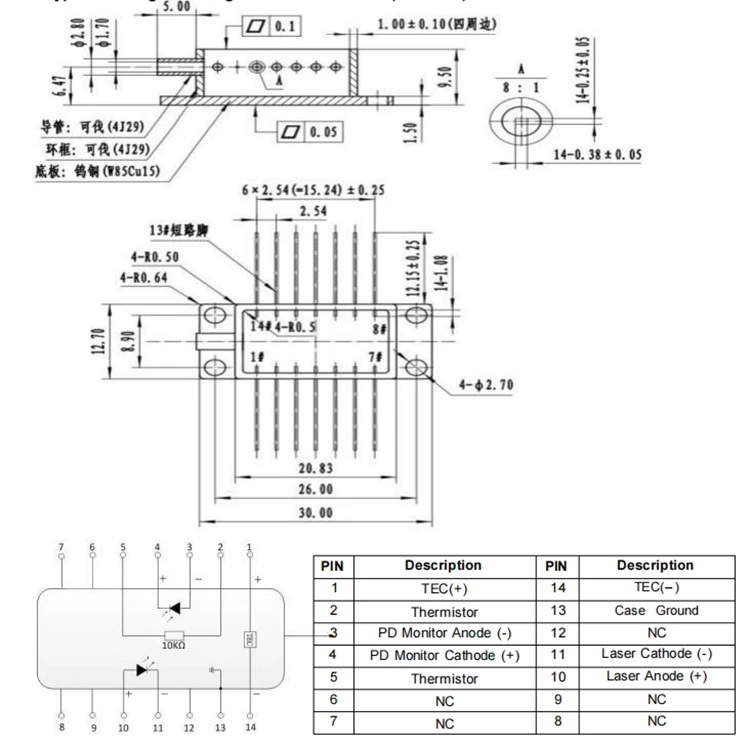

>>>Type2 pin-out
|
Name |
Wavelength |
Output power |
Fiber type |
Connector |
PIN-OUT |
|
BFLD |
-XXXX |
-XX |
XX |
-XX |
X |
|
DFB laser diode |
1580:1580nm 1512:1512nm 760:760nm 1683:1683nm Other |
10:10mW Other |
SM:Single mode PM: Polarization maintaining
|
FA: FC/APC SA: SC/APC Other |
NULL:Type 1 2:Type 2 |
eg: BFLD-1580-10SM-FA2
(Order information: 1580nm DFB Laser diode, 14-pin butterfly package, 10mW output power, with SM fiber, FC/APC connector, type2 pin-out).
● Terms of quote
(1) EXW:
If you have a DHL/ UPS/ FedEx account, Box Optronics suggest using the EXW. We ship via your account; we don't charge the shipping cost.
(2) DAP:
If you don't have an account, please prepay the shipping cost for the products.
(3)Other
● Terms of payment
PayPal and T/T are available.
Production: 10 working days. (If there are some in stock, it will be faster shipped.)
The international logistics: 3-5 working days.
● Optical fibers are fragile; do not use the fiber to pull the device. When inserting or removing a device from its socket, do not apply pressure to or pull on the sleeve located at the rear of the device housing. For devices equipped with connectors, ensure that both the device and the fiber connector are lifted simultaneously during installation or removal.
● If the pins require soldering, the soldering temperature must not exceed 260°C, and the soldering time must not exceed 10 seconds. Particular attention must be paid to the following: during the soldering process, the device must be in an unpowered state, and the soldering iron must be properly grounded.
● Before powering up the device, first activate the cooler, and then apply power in small increments to prevent the chip from overheating or becoming overloaded.
● Warranty Period:
Free repair or replacement for non-human-induced defects within 1 year from purchase. Paid maintenance services available after 1 year.
● Exclusions from Free Warranty:
During the free warranty period, free repair or replacement services will be provided for faults caused by product quality issues. However, Box Optronics retains the right to refuse free repair services in the following cases within the warranty period:
(1) Damage caused by natural factors (e.g., lightning, dust) or environmental influences.
(2) Malfunctions due to improper operation by the user.
(3) Obvious physical damage caused by human error.
(4) Unauthorized disassembly, modification, or repair.
(5) Altered or incomplete warranty labels on the housing.
(6) Damage or loss during transportation.
