1512nm 10mW DFB 14-PIN Butterfly Laser

Table of Contents

1. Introduction of the 1512nm 10mW DFB 14-PIN Butterfly Laser

2. Technical Specifications

3. Product Features

4. Typical Applications

5. Product details

6. Ordering Information

7. Datasheet

8. Terms of quote and payment

9. Lead time

10. Operation Notes

11. Quality Assurance and After-Sales Service

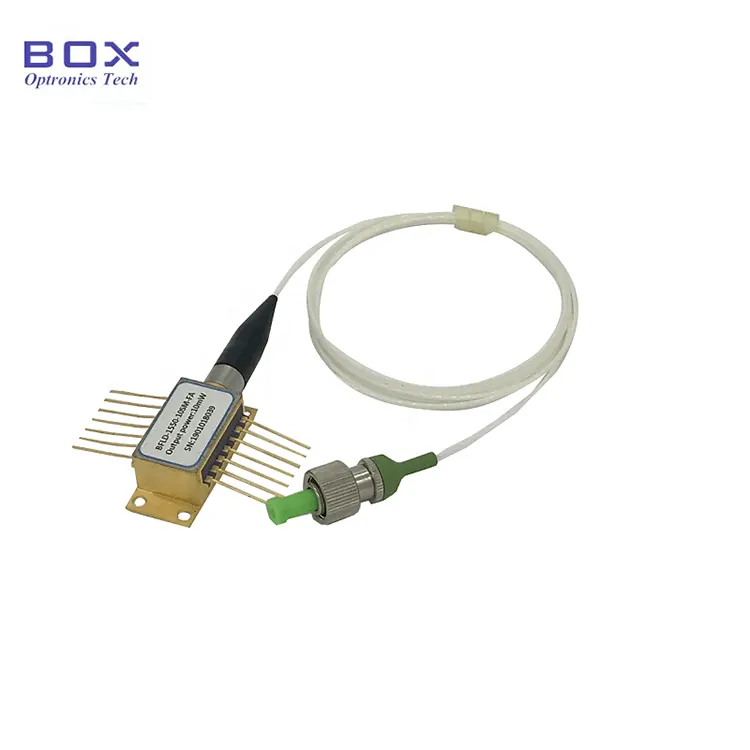

Product Introduction

1512nm 10mW DFB 14-PIN Butterfly Laser adopts a DFB single-mode chip structure with a center wavelength of 1512nm, typical output power 10mW, featuring high SMSR and low threshold. Built-in TEC cooler ensures long-term wavelength stability, suitable for NH₃gas detection, optical measurement, environmental monitoring, and special optical sensing. Strictly follow electrical specifications and take ESD and heat dissipation measures during use for long-term reliability.

Product Specifications

Product Features

● Low threshold, high-efficiency output;

● Built-in thermistor, and TEC;

● Fiber type can be SMF-28e or PM fiber;

● High reliability, fast response, good stability.

Product Applications

● H₃ ammonia monitoring and gas analysis;

● Optical detection and spectral analysis;

● Industrial environmental toxic gas optical detection;

● Light source for high-precision gas sensing and analyzers.

Product Details

● Package drawing&PIN-OUT Definition(Unit:mm)-1512nm 10mW DFB 14-PIN Butterfly Laser

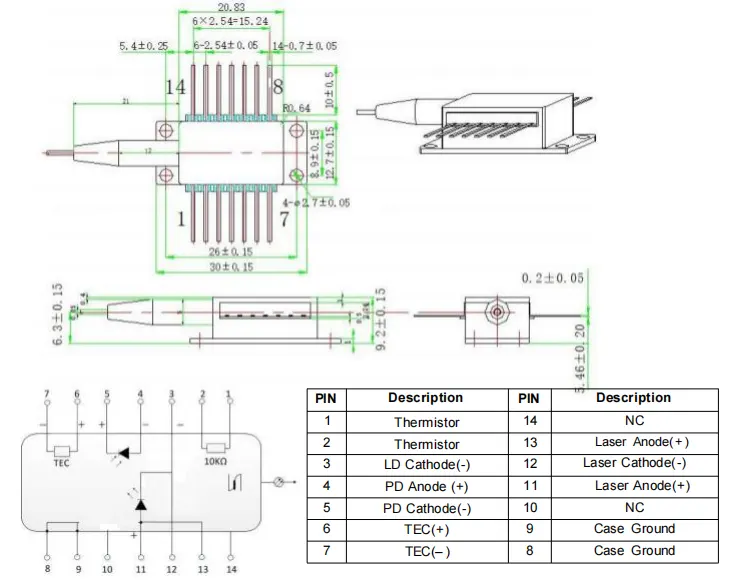

>>>Type1 pin-out

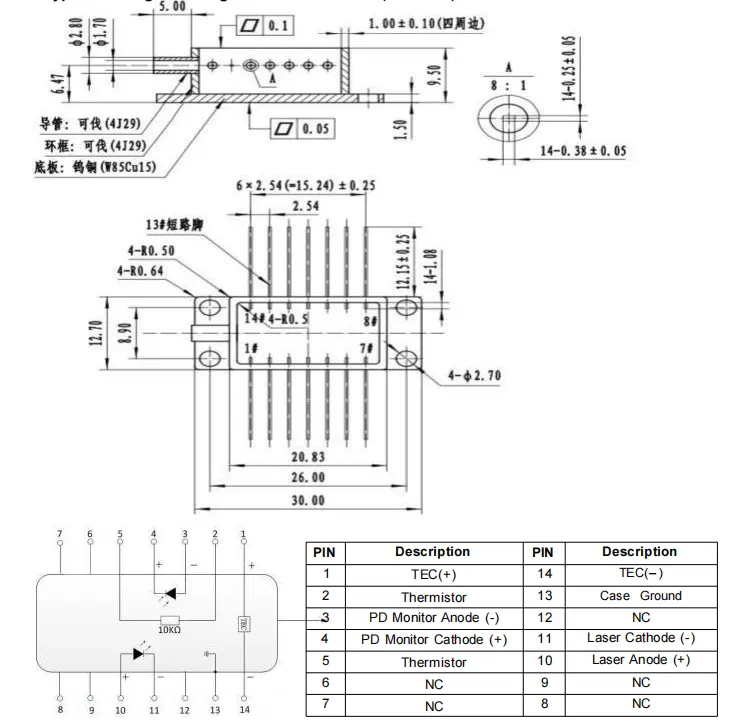

>>>Type2 pin-out

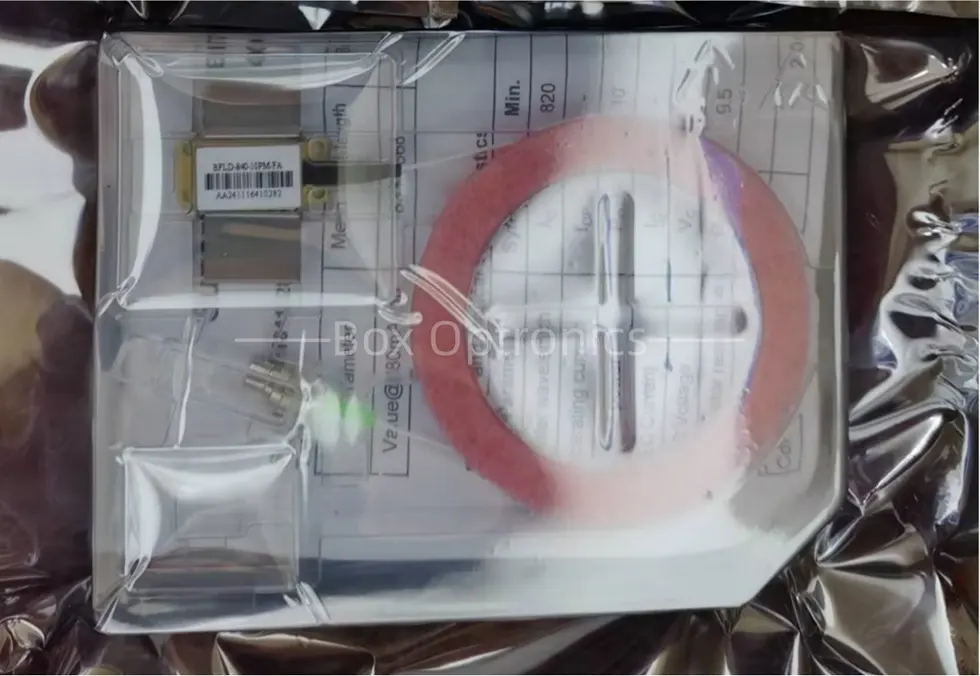

● Packing example

*Standalone device; no built-in driver (external driver optional).

Ordering information

eg: BFLD-1512-10SM-FA2

(Order information: 1512nm 10mW DFB 14-PIN Butterfly Laser, with SM fiber, FC/APC connectortype2 pin-out).

Datasheet

Datasheet

Terms of quote and payment

● Terms of quote

(1) EXW:

If you have a DHL/ UPS/ FedEx account, Box Optronics suggest using the EXW. We ship via your account; we don't charge the shipping cost.

(2) DAP:

If you don't have an account, please prepay the shipping cost for the products.

● Terms of payment

PayPal and T/T are available.

Lead time

It takes around 10 working days for production. (If there are some in stock, it will be faster shipped.)

The international logistics might take 3-5 working days.

Operation Notes

● When operating, this device emits a high-intensity laser beam; do not look directly into the fiber end face, as doing so may cause eye injury.

● This device is electrostatic-sensitive; therefore, strict adherence to anti-static protection measures is required during packaging, transportation, and usage. Additionally, precautions must be taken to prevent power supply surges, as failure to do so may result in permanent damage to the device (e.g., ensuring proper equipment grounding and wearing an anti-static wrist strap).

● Optical fibers are fragile; do not use the fiber to pull the device. When inserting or removing a device from its socket, do not apply pressure to or pull on the sleeve located at the rear of the device housing. For devices equipped with connectors, ensure that both the device and the fiber connector are lifted simultaneously during installation or removal.

● Before powering up all components, first activate the cooler, and then proceed with incremental power-up steps to prevent chip overheating and overload.

Quality Assurance and After-Sales Service

● Warranty Period:

Free repair or replacement for non-human-induced defects within 1 year from purchase. Paid maintenance services available after 1 year.

● Exclusions from Free Warranty:

During the free warranty period, free repair or replacement services will be provided for faults caused by product quality issues. However, Box Optronics retains the right to refuse free repair services in the following cases within the warranty period:

(1) Damage caused by natural factors (e.g., lightning, dust) or environmental influences.

(2) Malfunctions due to improper operation by the user.

(3) Obvious physical damage caused by human error.

(4) Unauthorized disassembly, modification, or repair.

(5) Altered or incomplete warranty labels on the housing.

(6) Damage or loss during transportation.
