1683nm 10mW Fiber Coupled Laser

Table of Contents

1. Introduction of the 1683nm 10mW Fiber Coupled Laser

2. Technical Specifications

3. Product Features

4. Typical Applications

5. Product details

6. Ordering Information

7. Datasheet and testsheet

8. Terms of quote and payment

9. Lead time

10. Operation Notes

11. Quality Assurance and After-Sales Service

Product Introduction

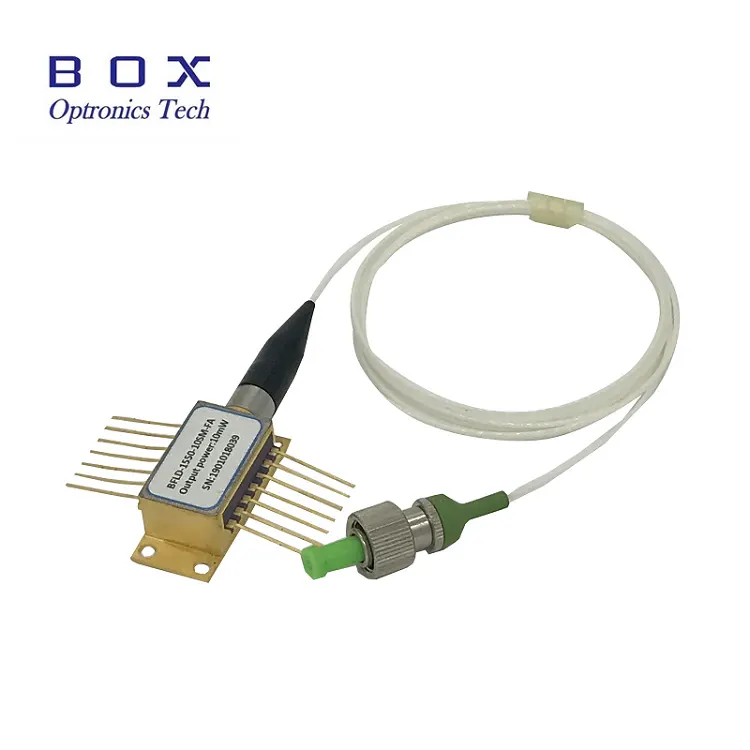

1683nm 10mW Fiber Coupled Laser adopts the MQW DFB chip, central wavelength 1683nm, wavelength tolerance is +/-1nm, typical output power 10mW, 14-pin BTF package, compliant with Telcordia GR-468 and RoHS. With a single-mode fiber and an FC/APC connector, it is ideal for TDLAS and C2H6 gas detection systems.

Product Specifications

Product Features

● High stable 10mW optical output;

● Industry-standard, 14PIN butterfly package;

● Built-in TEC and optical isolator;

● Multiquantum well (MQW) distributed-feedback (DFB) laser

●

Product Applications

● Tunable diode laser absorption spectroscopy;

● C2H6 Monitoring;

● Environmental air quality monitoring;

● Optical fiber sensing & laser detection.

Product Details

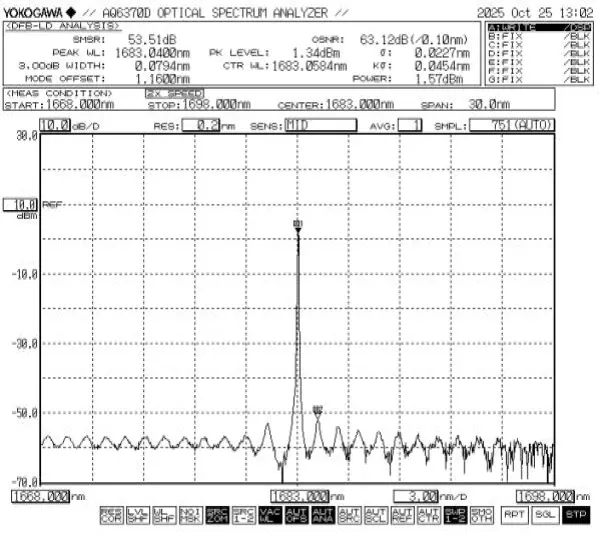

● Typical spectrum: 1683nm, +/-1nm WL tolerance.

● FAQ

(1) What is the fiber type and connector specification?

--Standard configuration uses single-mode fiber with an FC/APC connector.

(2) What is the package type and mounting method?

--1683nm 10mW Fiber Coupled Laser is housed in a standard 14-pin butterfly package, compatible with mainstream laser sockets and mounting fixtures. Mounting holes are provided for screw fixation or thermal pad attachment.

(3) Is sample testing available? What services are offered for bulk procurement?

--Sample testing and small-volume trial production are supported. For bulk procurement, we offer volume pricing, factory test reports, customized parameters (such as fiber length, jacket type, and connector type).

Ordering information

eg: BFLD-1683-10SM-FA

(Order information: 1683nm 10mW Fiber Coupled Laser, 14-pin butterfly package, with SM fiber, FC/APC connector, type1 pin-out).
