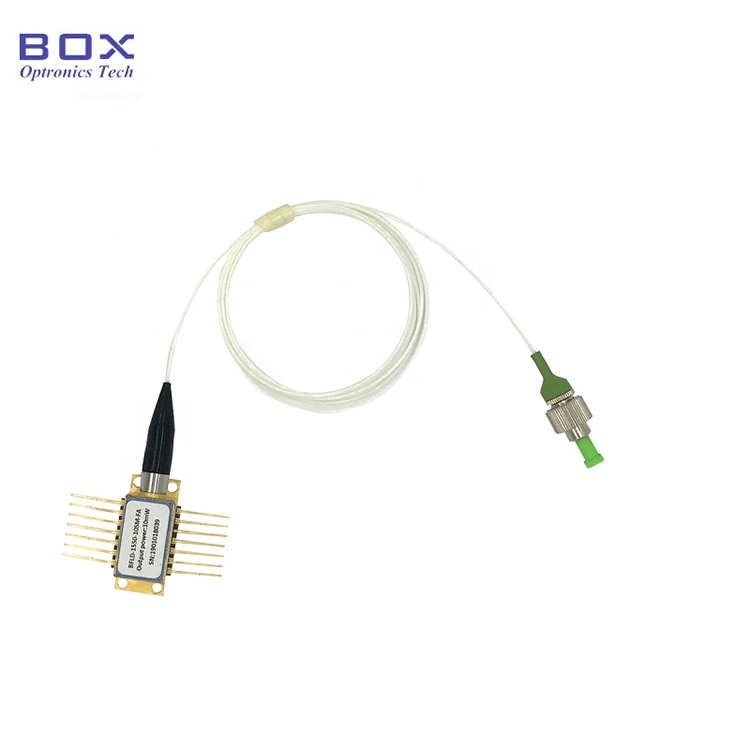

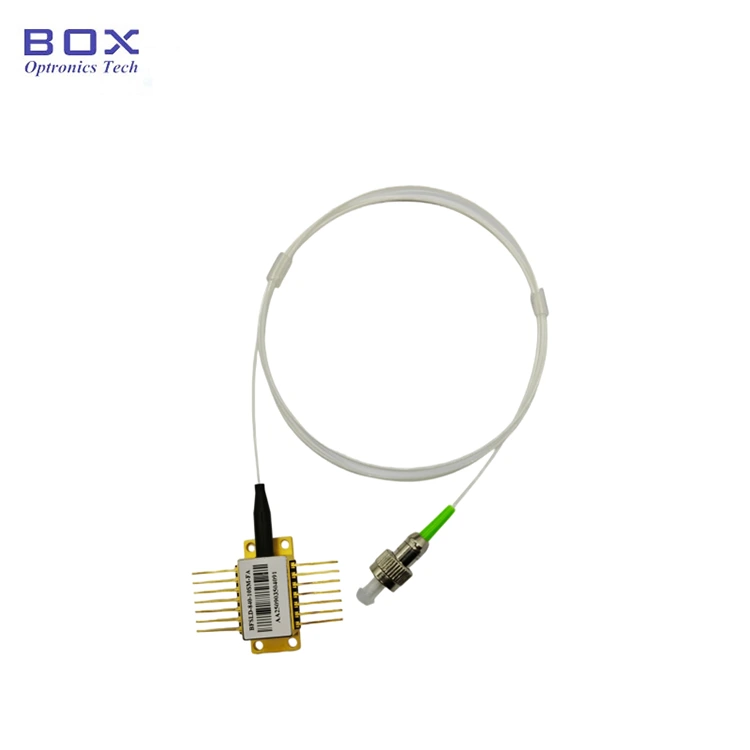

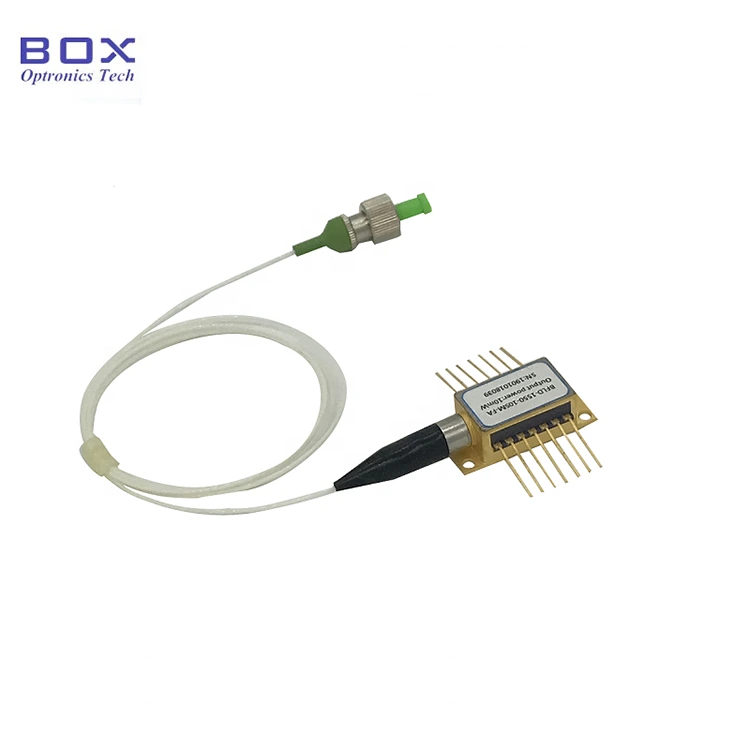

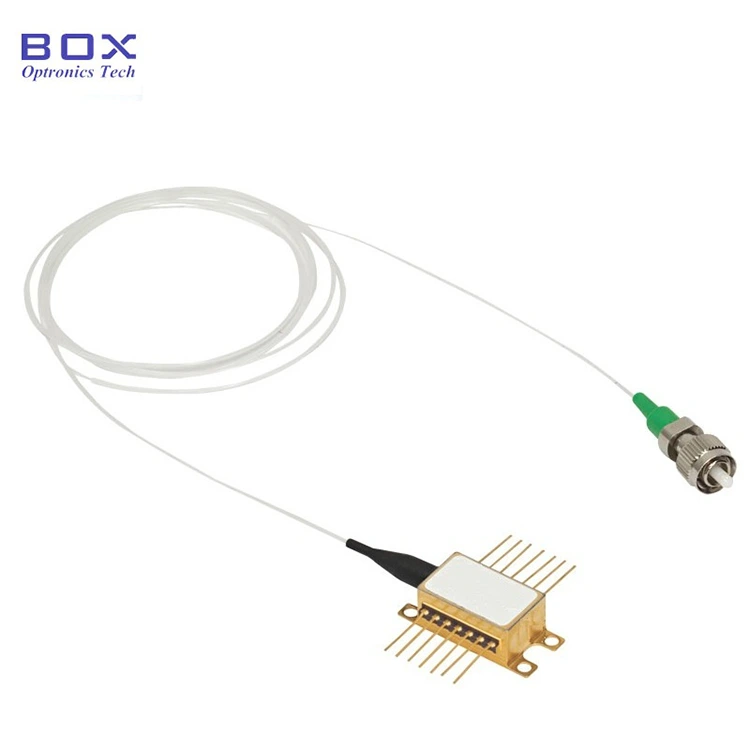

1550nm DFB 100mW High Power Butterfly Laser
Box Optronics is a professional manufacturer and supplier of the 1550nm DFB 100mW High Power Butterfly Lasers. It features high optical output power and a high side-mode suppression ratio. We provide high-performance, highly reliable laser components to customers worldwide. Our products are exported to over 30 countries and regions, including North America, Europe, and Southeast Asia, supporting applications in testing systems and high optical power systems.
Table of Contents
1. Introduction of the 1550nm DFB 100mW High Power Butterfly Laser
2. Technical Specifications
3. Product Features
4. Typical Applications
5. Product details
6. Ordering Information
7. Datasheet and testsheet
8. Terms of quote and payment
9. Lead time
10. Operation Notes
11. Quality Assurance and After-Sales Service
Product Introduction
1550nm DFB 100mW High Power Butterfly Laser is based on MQW (Multi-Quantum Well) DFB chip, adopting the industry-standard 14-pin butterfly package, it integrates a TEC (Thermoelectric Cooler), thermistor, backlight monitoring PD (Photodiode). If the pins require soldering, the soldering temperature must not exceed 260°C, and the soldering time must not exceed 10 seconds.
Product Specifications
|
Parameter |
Symbol |
Condition |
Min. |
Typ. |
Max. |
Unit |
|
Operating wavelength |
λC |
CW, 25℃ |
1540 |
1550 |
1560 |
nm |
|
Optical output power |
PF |
SM Fiber |
85 |
100 |
- |
mW |
|
PM Fiber |
60 |
70 |
- |
|||
|
Threshold current |
ITH |
25℃ |
14 |
20 |
50 |
mA |
|
Operating current |
IOP |
CW |
- |
250 |
400 |
mA |
|
Operating voltage |
VOP |
25℃ |
- |
- |
3.0 |
V |
|
Side mode suppression ratio |
SMSR |
- |
35 |
- |
- |
dB |
|
TEC Current |
ITEC |
- |
-1.5 |
- |
2.5 |
A |
|
TEC Voltage |
VTEC |
- |
-2.5 |
- |
3.8 |
V |
|
Thermistor resistance |
RTH |
25℃ |
9.5 |
10 |
10.5 |
kΩ |
|
Thermistor B-value |
β |
25℃/80℃ |
- |
3950 |
- |
K |
Product Features
● SM fiber or PM fiber pigtail;
● High output power up to 100mW;
● High side-mode suppression ratio;
● 14-pin BTF package with TEC, thermistor, and monitor PD.
Product Applications
● Fiber optic communications;
● Laboratory optical test;
● Fiber optic sensing.
Product Details

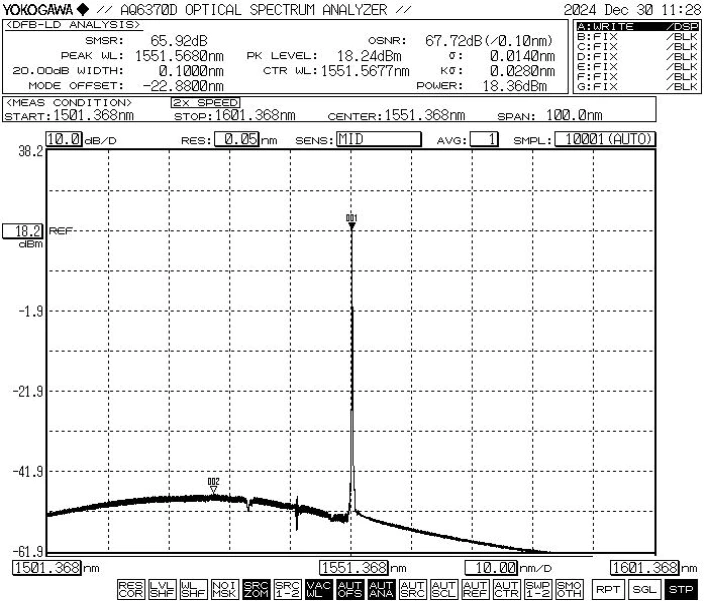

● Typical spectrum: 1550nm, +/-2 WL tolerance.

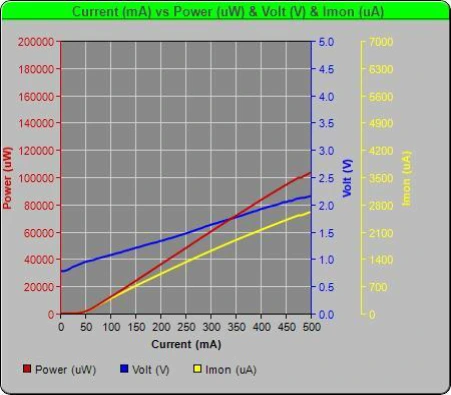

● PIV-1550nm DFB 100mW High Power Butterfly Laser

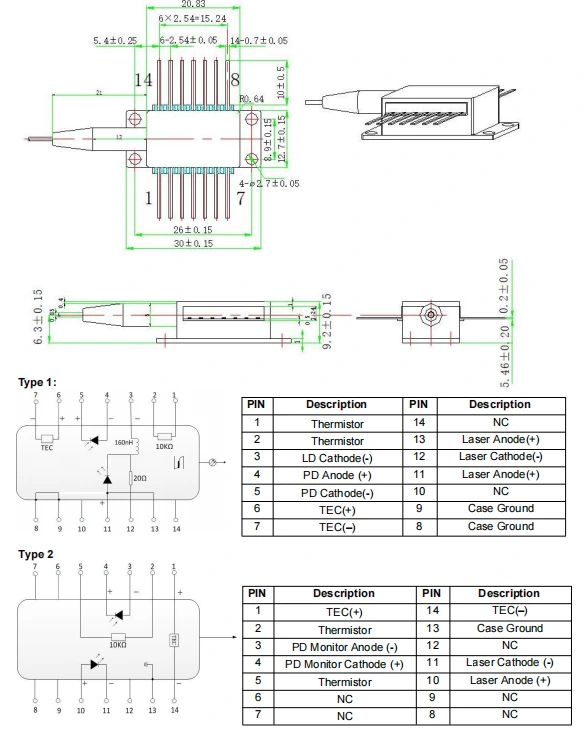

● Package drawing&PIN-OUT Definition(Unit:mm)-1550nm DFB 100mW High Power Butterfly Laser
Ordering information
|
Name |
Wavelength |
Output power |
Fiber type |
Connector |
PIN-OUT |
|
BFLD |
-XXX |
-XX |
XX |
-XX |
X |
|
DFB laser diode |
1550: 1550nm |
10: 10mW 20:20mW 40:40mW 80:80mW 1H:100mW |
SM :Single mode PM :Polarization maintaining |
FA: FC/APC SA: SC/APC Other |
1:Type 1 2:Type 2 |
eg: BFLD-1550-1HSM-FA2
(Order information: 1550nm DFB 100mW High Power Butterfly Laser, SM fiber, with FC/APC connector, pump pin).
For other customized requirements, please contact: sales06@boxoptronics.com
Datasheet and Testsheet
Terms of quote and payment
● Terms of quote
(1) EXW:
If you have a DHL/ UPS/ FedEx account, Box Optronics suggest using the EXW. We ship via your account; we don't charge the shipping cost.
(2) DAP:
If you don't have an account, please prepay the shipping cost for the products.
(3)Other
● Terms of payment
PayPal and T/T are available.
Lead time
It takes around 10 working days for production. (If there are some in stock, it will be faster shipped.)
The international logistics might take 3-5 working days.
Operation Notes
● This device is electrostatic-sensitive; therefore, strict adherence to anti-static protection measures is required during packaging, transportation, and usage. Additionally, precautions must be taken to prevent power supply surges, as failure to do so may result in permanent damage to the device (e.g., ensuring proper equipment grounding and wearing an anti-static wrist strap).
● Optical fibers are fragile; do not use the fiber to pull the device. When inserting or removing a device from its socket, do not apply pressure to or pull on the sleeve located at the rear of the device housing. For devices equipped with connectors, ensure that both the device and the fiber connector are lifted simultaneously during installation or removal.
● When using the device, strictly adhere to the operating voltage and current ranges specified in the datasheet. Key parameters—including Ith (Threshold Current), Iop max (Maximum Operating Current), Vop max (Maximum Operating Voltage), and λc (Center Wavelength)—should be referenced specifically in the test report provided at the time of shipment.Note:Operation beyond the absolute maximum ratings may cause permanent damage to the device.
Quality Assurance and After-Sales Service
● Warranty Period:
Free repair or replacement for non-human-induced defects within 1 year from purchase. Paid maintenance services available after 1 year.
● Exclusions from Free Warranty:
During the free warranty period, free repair or replacement services will be provided for faults caused by product quality issues. However, Box Optronics retains the right to refuse free repair services in the following cases within the warranty period:
(1) Damage caused by natural factors (e.g., lightning, dust) or environmental influences.
(2) Malfunctions due to improper operation by the user.
(3) Obvious physical damage caused by human error.
(4) Unauthorized disassembly, modification, or repair.
(5) Altered or incomplete warranty labels on the housing.
(6) Damage or loss during transportation.
