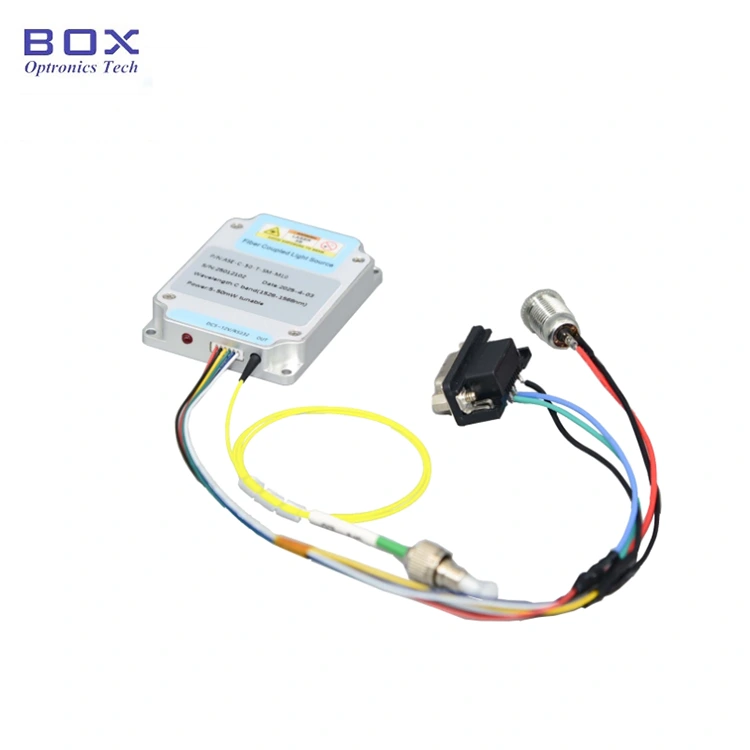

C-band ASE Broadband Light Source Micro-Module
Box Optronics is a leading supplier of C-band ASE Broadband Light Source Micro-Modules. With ultra-small size for limited space applications, a wideband spectrum, and high-stability output power. We provide global clients with customized RS232 or TTL control mode ASE light sources, supporting applications in medical imaging and fiber sensing scenarios.
Table of Contents
1. Introduction of the C-band ASE Broadband Light Source Micro-Module
2. Technical Specifications
3. Product Features
4. Typical Applications
5. Product details
6. Operation steps
7. Ordering Information
8. Datasheet
9. Terms of quote and payment
10. Lead time
11. Operation Notes and Maintenance
12. Quality Assurance and After-Sales Service

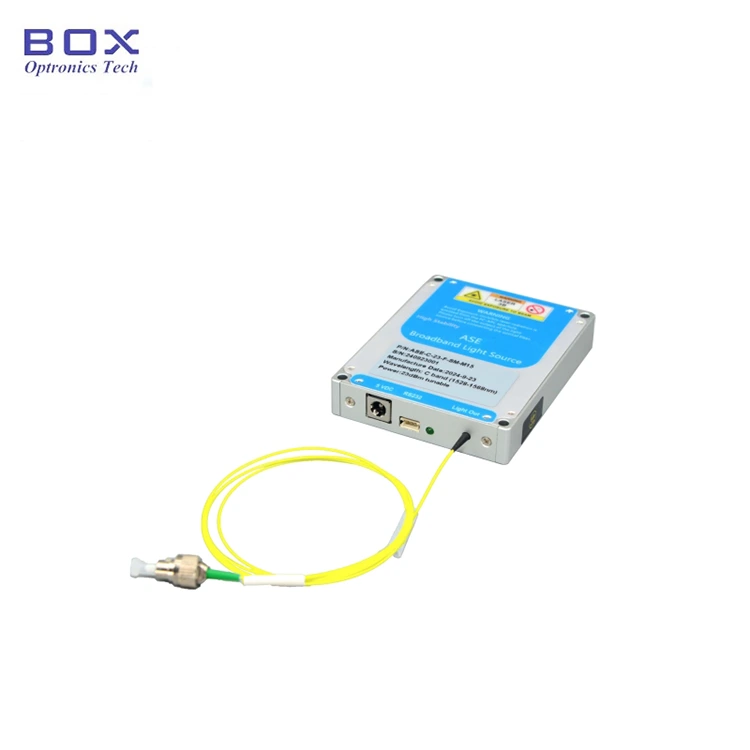

Product Introduction
The C-band ASE Broadband Light Source Micro-Module is designed for applications requiring compact size, broadband spectrum, and high output stability. Featuring an ultra-small footprint, it is ideal for space-constrained systems while maintaining excellent optical performance. The module supports RS232 or TTL control, with 10/20/50mW fixed output power. Please use with control temperature and humidity, ensure good heat dissipation, and avoid output overload.
Product Specifications
|
Item |
Unit |
Values |
Notes |
||
|
Spectral range |
nm |
1528~1568 |
|
||
|
Output power |
mW |
10 |
20 |
50 |
Non-adjustable |
|
Power spectral density |
dBm/nm |
-6 |
-3 |
1 |
|
|
Spectral flatness |
dB |
≤2 |
|
||
|
Output isolation |
dB |
≥35 |
|
||
|
Power instability |
dB |
≤±0.02(15min.); ≤±0.05(8hrs) |
≤±0.5%; |
||
|
PER |
dB |
≤0.2 |
|
||
|
Pigtail fiber |
- |
SMF-28 |
FC/APC |
||
|
Control mode |
- |
RS232 or TTL |
|
||
|
Communication interface |
- |
PIN1~4: +5V/GND/TX/RX |
ZH2.54-4PIN |
||
|
Power supply |
- |
5VDC, <10W |
|
||
|
Dimensions |
mm |
50(W)×50(D)×15(H) |
|
||
|
Operating temperature |
℃ |
-5 ~ +55 |
|
||
|
Operating humidity |
℃ |
0~70% |
|
||
Product Features
● Ultra small size 50*50*15mm;
● High stability 10/20/50mW output power;
● Spectral flatness ≤2dB;
● Supports RS232 / TTL control for easy integration.
1. Product Applications-C-band ASE Broadband Light Source Micro-Module
● Optical component testing;
● Optical communication R&D;
● Fiber optic sensing.
Product Details
● Typical spectrum

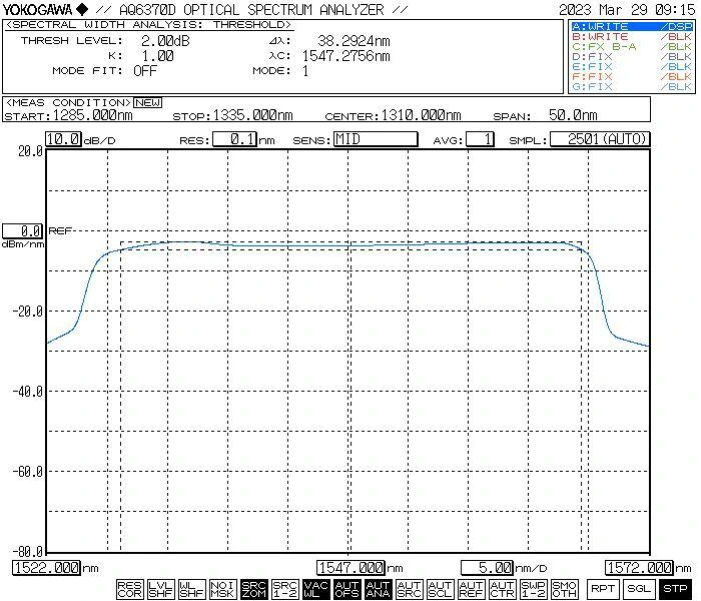

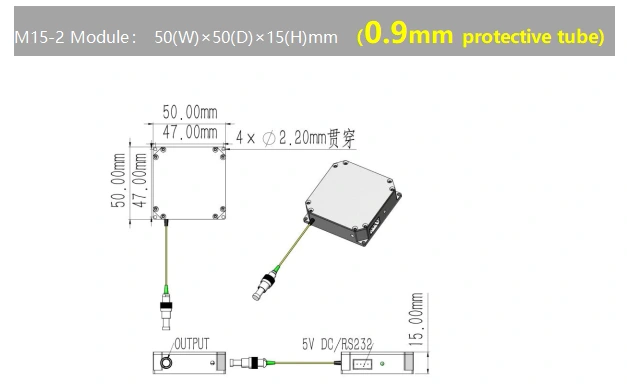

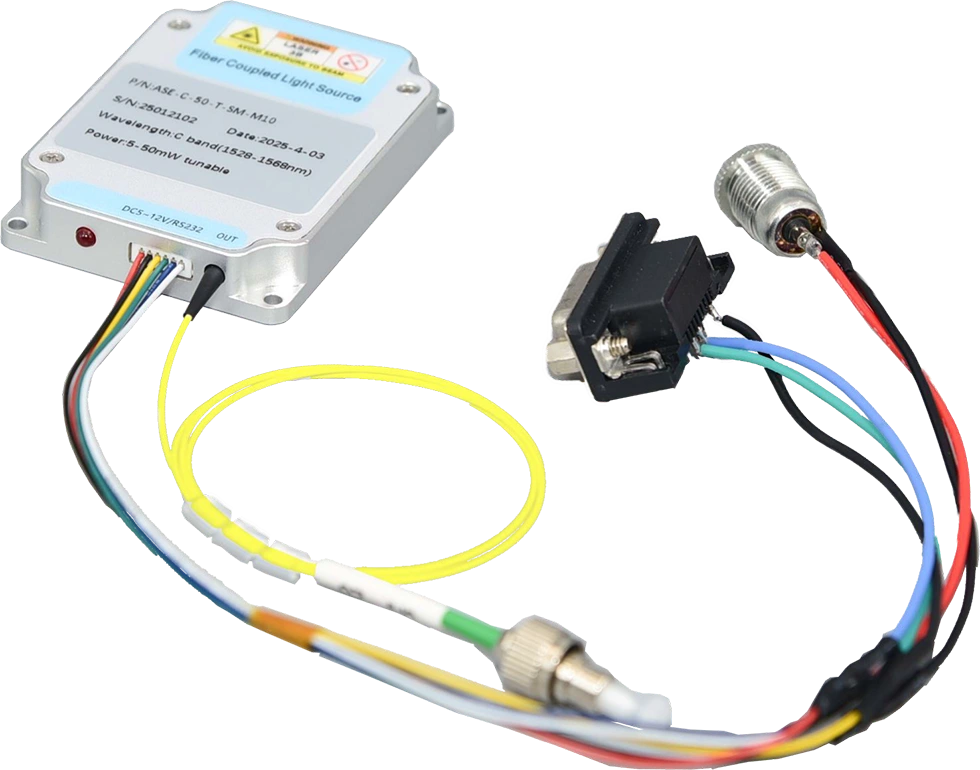

● Dimension(mm): micro-module
Operation Steps
Step1.Unpacking
Before assembly, check whether all accessories are complete.
Step2.Connect Power and Fiber Patch Cord
Turn on the power supply; connect the light source output port using a fiber patch cord.
Step3.Activate Light Source
Turn on the light source power supply. Note: At this stage, the operating current and power correspond to the parameters set by the host computer during the most recent shutdown; if adjustment is required, these settings can be modified via the software. Warning: It is strictly prohibited to connect or disconnect fiber optic connectors while the light source is active.
Setp4.Shut Down
After use, disconnect the power cord.
Ordering information
|
Name |
Wavelength |
Output power |
Fiber type |
Dimension |
|
ASE |
-C |
-XX |
-XX |
-MC |
|
ASE light source |
C: C-band |
10:10 mW 20:20 mW 50:50mW |
SM:SMF-28 |
MC:Module |
eg: ASE-C-20-SM-MC
(Order information: C-band ASE Broadband Light Source Micro-Module, 20mW output power, with SM fiber, micro-module package).
For other customized requirements, please contact: sales06@boxoptronics.com
