980nm ASE Broadband Light Source
Box Optronics supplies the 980nm ASE Broadband Light Source with a DB9 Female RS232/ touch screen communication interface. It features 10mW output power and Hi1060 SM fiber. With years of expertise in optoelectronic devices, we provide global clients with broadband and stable spectrum light source solutions, supporting efficient system integration in fiber optic device testing and optical grating testing applications.
Table of Contents
1. Introduction of the 980nm ASE Broadband Light Source
2. Technical Specifications
3. Product Features
4. Typical Applications
5. Product details
6. Ordering Information
7. Datasheet and testsheet
8. Terms of quote and payment
9. Lead time
10. Operation Notes and Maintenance
11. Quality Assurance and After-Sales Service
Product Introduction
The 980nm ASE light source is based on the spontaneous emission of rare-earth optical fibers, which have good optical power and low polarization. The spectral range is 973~982nm. The output power is 10mW fixed. It features Hi1060 fiber and 35dB isolation. Suitable for testing fiber optic device loss, polarization degree, and FBG grating production.
Product Specifications
|
Item |
Unit |
Values |
Notes |
|
Spectral range |
nm |
973~982 |
20dB range |
|
Output power |
mW |
10 |
Unadjustable |
|
Power spectral density |
dBm/nm |
≥-20 |
|
|
Output isolation |
dB |
≥35 |
|
|
Power instability |
dB |
≤±0.02(15min.); ≤±0.05(8hrs) |
≤±0.5%; ≤±1.2% |
|
Polarization state |
- |
Natural polarization |
|
|
PER |
dB |
≤0.2 |
|
|
Degree of polarization |
- |
≤2.5% |
|
|
Pigtail fiber |
- |
Hi1060 |
FC/APC |
|
Communication interface |
- |
Touch screen / DB9 Female (RS232) |
Benchtop |
|
Power supply |
- |
AC 110~240V, <30W |
Benchtop |
|
Dimensions |
mm |
255(W)×285(D)×115(H) |
Benchtop |
|
Operating temperature |
℃ |
-5 ~ +55 |
|
|
Operating humidity |
℃ |
0~70% |
|
Product Features
● Wide spectral range;
● High stability;
● Low polarization degree;
● Color LCD touch screen control.
Product Applications
● Fiber laser;
● Optical grating testing;
● Fiber optic device testing.
Product Details

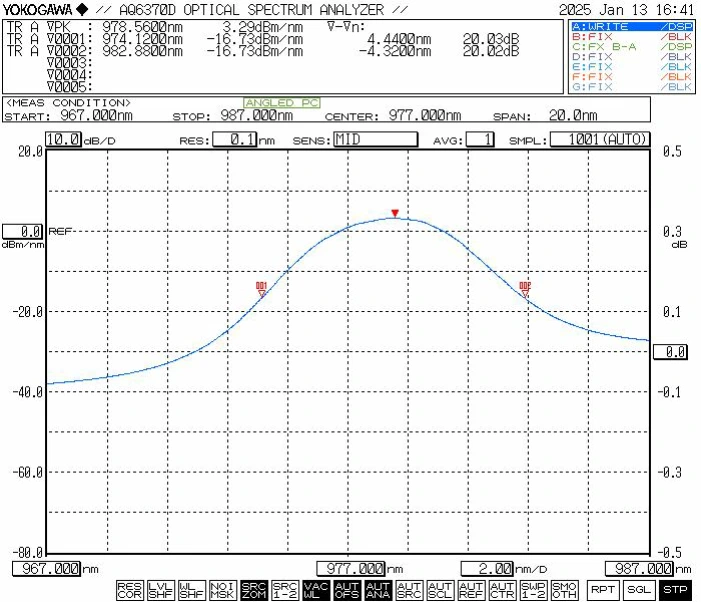

● Typical spectral curve
Ordering information
|
Name |
Wavelength |
Output power |
Fiber type |
Dimension |
|
ASE |
-XXX |
-XX |
XX |
-X |
|
ASE Light source |
980: 980nm |
10: 10mW |
SM: Hi1060 |
B:Benchtop |
eg: ASE-980-10-SM-B
(Order information: 980nm ASE Broadband Light Source, 10mW output power, with SM Hi1060 fiber, benchtop package).
Datasheet
Terms of quote and payment
● Terms of quote
(1) EXW:
If you have a DHL/ UPS/ FedEx account, Box Optronics suggest using the EXW. We ship via your account; we don't charge the shipping cost.
(2) DAP:
If you don't have an account, please prepay the shipping cost for the products.
(3)Other
● Terms of payment
PayPal and T/T are available.
Lead time
It takes around 10-15 working days for production. (If there are some in stock, it will be faster shipped.)
The international logistics might take 3-5 working days.
Operation Notes and Maintenance
● It is not recommended to frequently insert and unplug the output fiber connectors to avoid dust contamination, which may lead to increased insertion loss or burning of the fiber connector end face.
● When starting up, first confirm that the power switch and key switch are turned off, and then connect the power supply. When shutting down, first turn off the key switch, and then disconnect the power supply after the output indicator light goes out. Do not directly cut off the power supply when the light source is working.
● Please pay attention to moisture-proof, dust-proof, and anti-corrosion properties, and store it in a dry place.
Quality Assurance and After-Sales Service
● Warranty Period:
Free repair or replacement for non-human-induced defects within 1 year from purchase. Paid maintenance services available after 1 year.
● Exclusions from Free Warranty:
During the free warranty period, free repair or replacement services will be provided for faults caused by product quality issues. However, Box Optronics retains the right to refuse free repair services in the following cases within the warranty period:
(1) Damage caused by natural factors (e.g., lightning, dust) or environmental influences.
(2) Malfunctions due to improper operation by the user.
(3) Obvious physical damage caused by human error.
(4) Unauthorized disassembly, modification, or repair.
(5) Altered or incomplete warranty labels on the housing.
(6) Damage or loss during transportation.
