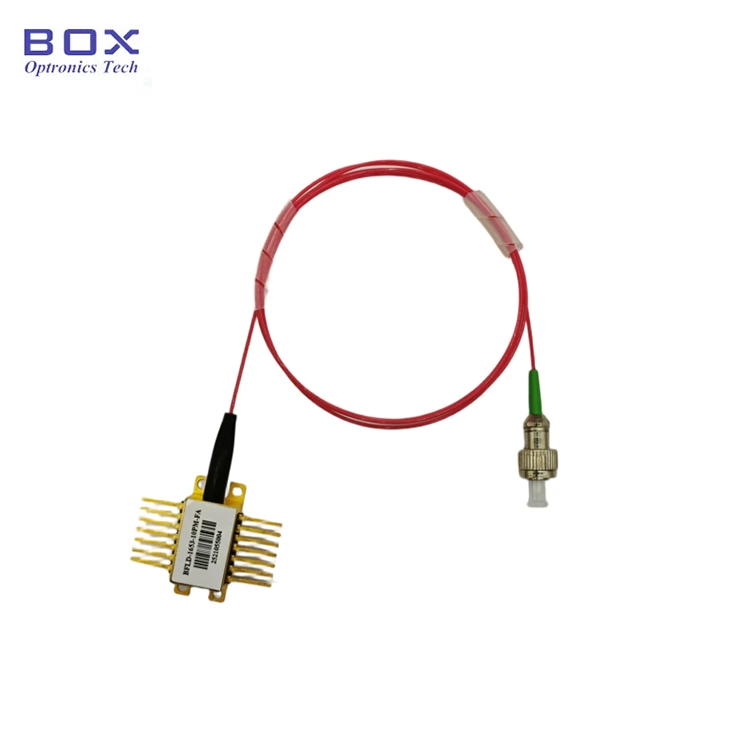

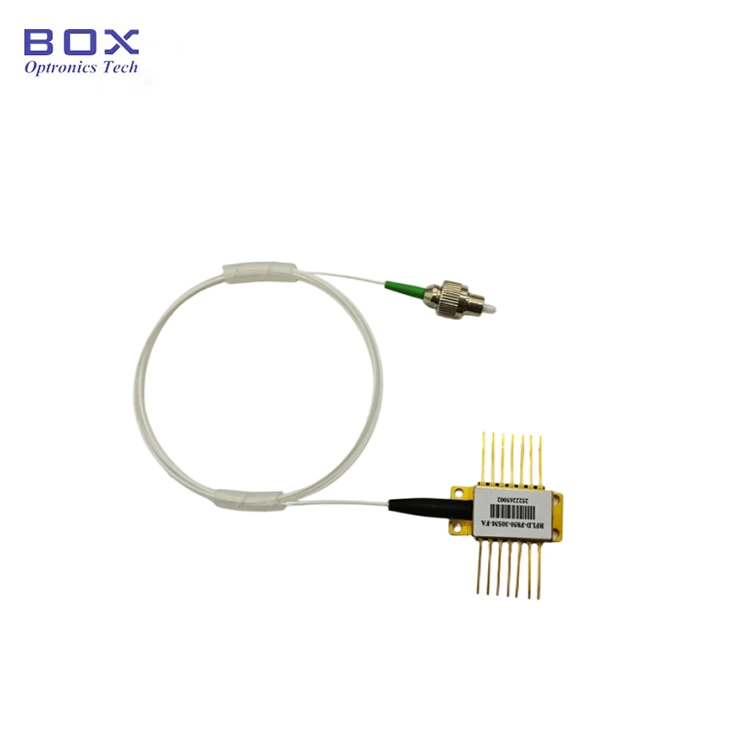

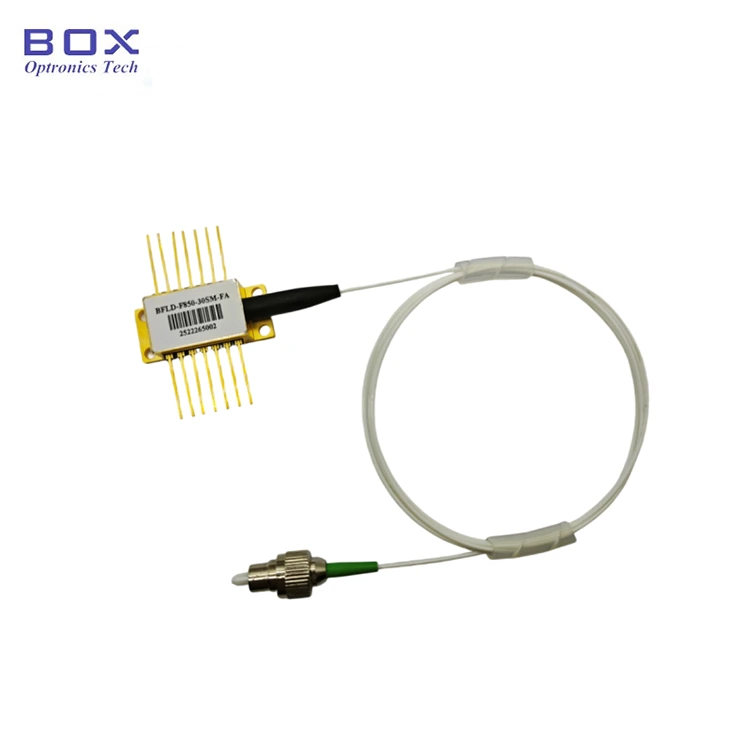

850nm FP Butterfly Laser Diode
Box Optronics is a professional manufacturer and supplier of 850nm FP Butterfly Laser Diodes. We offer customized package options for global customers to meet the requirements of different scenarios. We provide modular integration solutions, efficiently integrating laser diodes with related components. This simplifies the system design for customers and accelerates product implementation.
Table of Contents
1. Introduction of the 850nm FP Butterfly Laser Diode
2. Technical Specifications
3. Product Features
4. Typical Applications
5. Product details
6. Ordering Information
7. Datasheet and testsheet
8. Terms of quote and payment
9. Lead time
10. Operation Notes
11. Quality Assurance and After-Sales Service
Product Introduction
850nm FP Butterfly Laser Diode has an output power of up to 30mW, good beam quality for efficient coupling with optical fibers and other optical components, and integrates a Thermoelectric Cooler (TEC), monitoring PD, and a thermistor. It is suitable for fields such as short-range optical communication and fiber sensing.
Product Specifications
|
Parameter |
Symbol |
Condition |
Min. |
Typ. |
Max. |
Unit |
|
Operating wavelength |
λC |
CW, 25℃ |
840 |
850 |
860 |
nm |
|
Optical output power |
PF |
— |
30 |
— |
— |
mW |
|
Threshold current |
ITH |
25℃ |
— |
18 |
30 |
mA |
|
Operating current |
IOP |
CW |
— |
255 |
275 |
mA |
|
Operating voltage |
VOP |
25℃ |
— |
2.1 |
2.3 |
V |
|
Monitor Current |
IMON |
VRM=5V |
50 |
— |
1500 |
μA |
|
MPD Dark current |
ID |
VRM=5V |
— |
— |
50 |
μA |
|
Thermistor resistance |
RTH |
25℃ |
9.5 |
10 |
10.5 |
kΩ |
|
Thermistor B-value |
β |
25℃/80℃ |
— |
3950 |
— |
K |
Product Features
● SM Hi780 fiber pigtail;
● High output power up to 30mW;
● 14-pin BTF package with TEC, thermistor, and monitor PD.
Product Applications-850nm FP Butterfly Laser Diode
● Short-Distance Optical Communication;
● Laboratory light sources and optical test;
● Biological imaging;
● Optical fiber sensing.

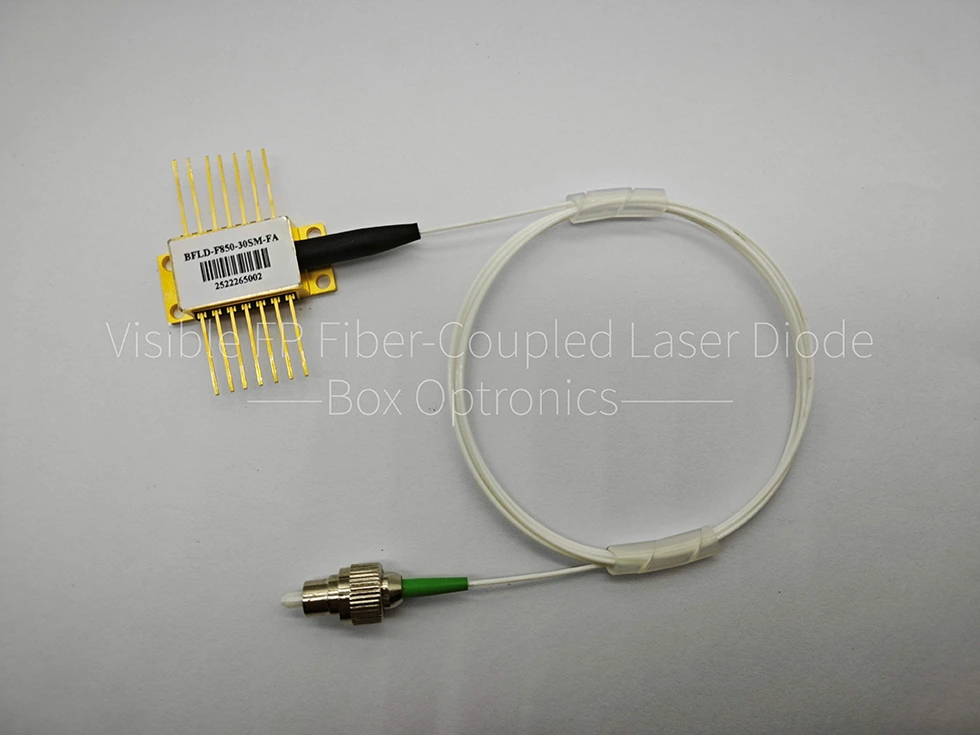

Product Details

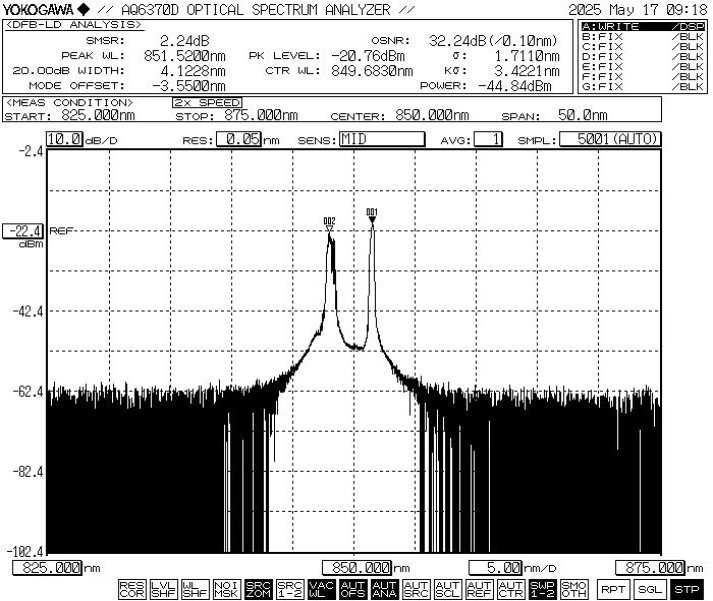

● Typical spectrum: 850nm, WL tolerance +/-10nm.

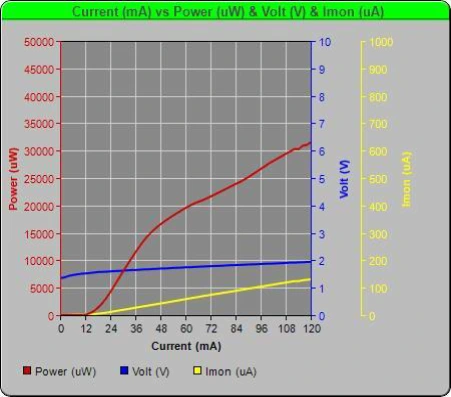

● PIV-850nm 30mW FP Butterfly Laser Diode
● Standard accessories
|
|
Accessories |
Quantity |
|
1 |
850nm FP Butterfly Laser Diode |
1 |
|
2 |
Product Test Report |
1 |
*Standalone device; no built-in driver (module package with a driver circuit is optional).
Ordering information
|
Name |
Wavelength |
Output power |
Fiber type |
Connector |
PIN-OUT |
|
BFLD |
-FXXX |
-XX |
XX |
-XX |
X |
|
FP laser diode |
F488:488nm F520:520nm F532:532nm F660:660nm F785:785nm F850:850nm F1064:1064nm |
30:30mW Customized |
SM: Single mode PM:Polarization maintaining
|
FA: FC/APC SA: SC/APC Other |
NULL: pump pin |
eg: BFLD-F785-30SM-FA
(Order information: 850nm FP Butterfly Laser Diode, 30mW output power, with SM fiber, FC/APC connector, pump pin).
For other customized requirements, please contact: sales06@boxoptronics.com
Datasheet and Testsheet
Terms of quote and payment
● Terms of quote
(1) EXW:
If you have a DHL/ UPS/ FedEx account, Box Optronics suggest using the EXW. We ship via your account; we don't charge the shipping cost.
(2) DAP:
If you don't have an account, please prepay the shipping cost for the products.
(3)Other
● Terms of payment
PayPal and T/T are available.
Lead time
It takes around 10 working days for production. (If there are some in stock, it will be faster shipped.)
The international logistics might take 3-5 working days.
Operation Notes
● When operating, this device emits a high-intensity laser beam; do not look directly into the fiber end face, as doing so may cause eye injury.
● This device is electrostatic-sensitive; therefore, strict adherence to anti-static protection measures is required during packaging, transportation, and usage. Additionally, precautions must be taken to prevent power supply surges, as failure to do so may result in permanent damage to the device (e.g., ensuring proper equipment grounding and wearing an anti-static wrist strap).
● If the pins require soldering, the soldering temperature must not exceed 260°C, and the soldering time must not exceed 10 seconds. Particular attention must be paid to the following: during the soldering process, the device must be in an unpowered state, and the soldering iron must be properly grounded.
● When using the device, strictly adhere to the operating voltage and current ranges specified in the datasheet. Key parameters—including Ith (Threshold Current), Iop max (Maximum Operating Current), Vop max (Maximum Operating Voltage), and λc (Center Wavelength)—should be referenced specifically in the test report provided at the time of shipment.Note:Operation beyond the absolute maximum ratings may cause permanent damage to the device.
Quality Assurance and After-Sales Service
● Warranty Period:
Free repair or replacement for non-human-induced defects within 1 year from purchase. Paid maintenance services available after 1 year.
● Exclusions from Free Warranty:
During the free warranty period, free repair or replacement services will be provided for faults caused by product quality issues. However, Box Optronics retains the right to refuse free repair services in the following cases within the warranty period:
(1) Damage caused by natural factors (e.g., lightning, dust) or environmental influences.
(2) Malfunctions due to improper operation by the user.
(3) Obvious physical damage caused by human error.
(4) Unauthorized disassembly, modification, or repair.
(5) Altered or incomplete warranty labels on the housing.
(6) Damage or loss during transportation.
