1651nm DFB Fiber Coupled Laser Diode

Table of Contents

1. Introduction of the 1651nm DFB Fiber Coupled Laser Diode

2. Technical Specifications

3. Product Features

4. Typical Applications

5. Product details

6. Ordering Information

7. Datasheet

8. Terms of quote and payment

9. Lead time

10. Operation Notes

11. Quality Assurance and After-Sales Service

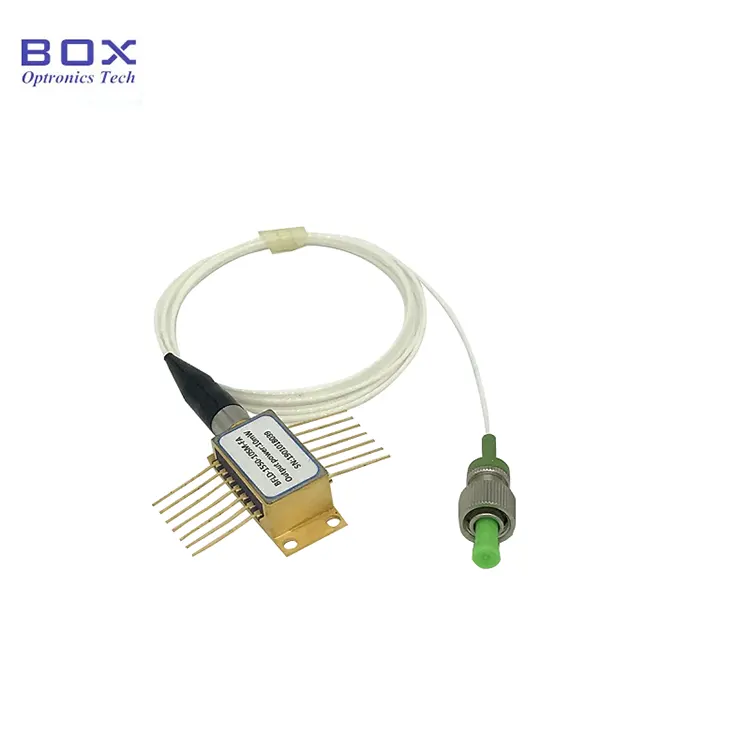

Product Introduction-1651nm DFB Fiber Coupled Laser Diode

This is a 1651nm DFB fiber-coupled laser diode with a multi-quantum well DFB chip and a 14-pin butterfly package. It integrates TEC temperature control and thermistor, supports single-mode/ polarization-maintaining fiber output, with typical output power of 10mW and center wavelength of 1651nm. Suitable for fiber communication, fiber sensing, optical instruments, and dedicated light source systems, it is easy to operate and highly reliable. Please strictly control drive current, voltage, and soldering temperature, provide ESD protection, and avoid exceeding absolute maximum ratings.

Product Specifications-1651nm DFB Fiber Coupled Laser Diode

Product Features-1651nm DFB Fiber Coupled Laser Diode

● Supports SMF-28e or PMF-1550 fiber coupling, FC/APC connector;

● 14-pin Butterfly package;

● Built-in thermistor, and TEC;

● Wide operating temperature range.

Product Applications-1651nm DFB Fiber Coupled Laser Diode

● Optical fiber communication;

● Optical instrument;

● CH4 Methane gas analysis;

● Fiber optic sensing.

Product Details-1651nm DFB Fiber Coupled Laser Diode

● Package drawing&PIN-OUT Definition(Unit:mm)-1651nm DFB Fiber Coupled Laser Diode

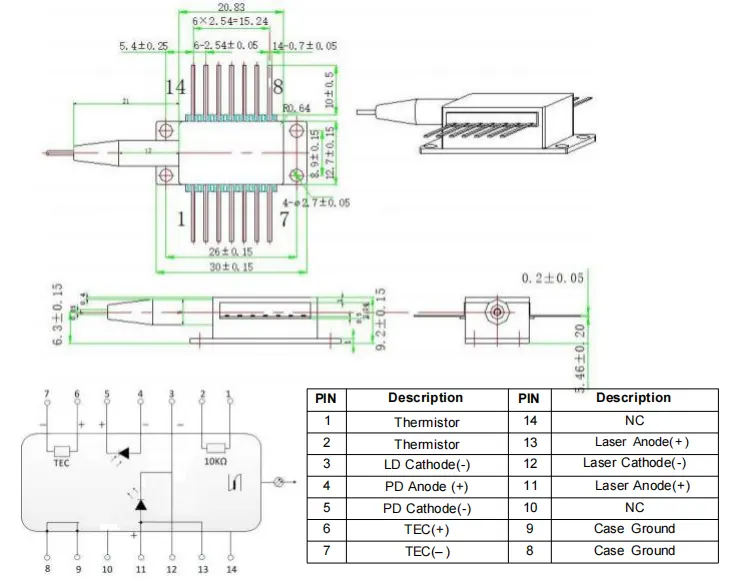

>>>Type1 pin-out

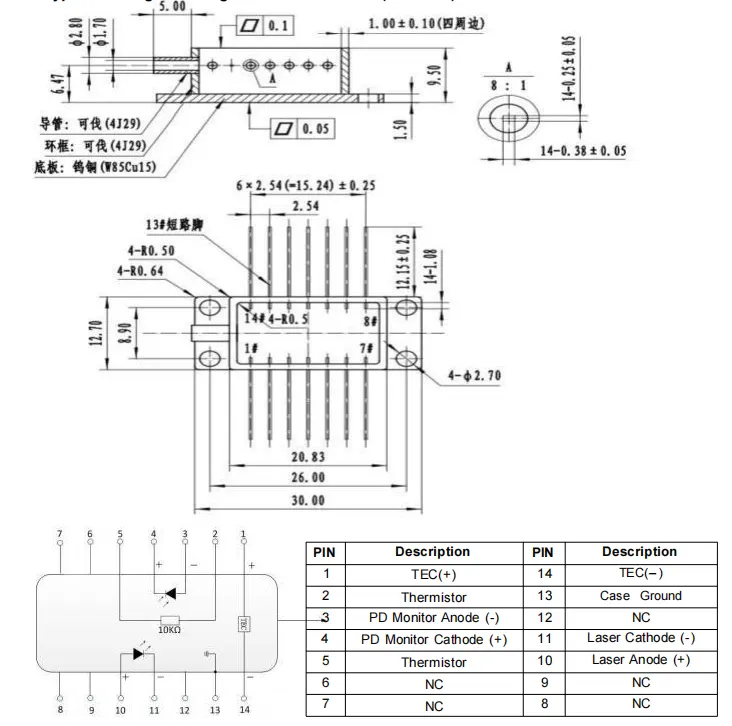

>>>Type2 pin-out

● Packing example

*Standalone device; no built-in driver (external driver optional).

Ordering information-1651nm DFB Fiber Coupled Laser Diode

eg: BFLD-1651-10SM-FA2

(Order information: 1651nm DFB Fiber Coupled Laser Diode, 14-pin butterfly package, with SM fiber, FC/APC connector, type2 pin-out).

Datasheet-1651nm DFB Fiber Coupled Laser Diode

Datasheet

1. Terms of quote and payment-1651nm DFB Fiber Coupled Laser Diode

● Terms of quote

(1) EXW:

If you have a DHL/ UPS/ FedEx account, Box Optronics suggest using the EXW. We ship via your account; we don't charge the shipping cost.

(2) DAP:

If you don't have an account, please prepay the shipping cost for the products.

● Terms of payment

PayPal and T/T are available.

Lead time-1651nm DFB Fiber Coupled Laser Diode

It takes around 10 working days for production. (If there are some in stock, it will be faster shipped.)

The international logistics might take 3-5 working days.

Operation Notes-1651nm DFB Fiber Coupled Laser Diode

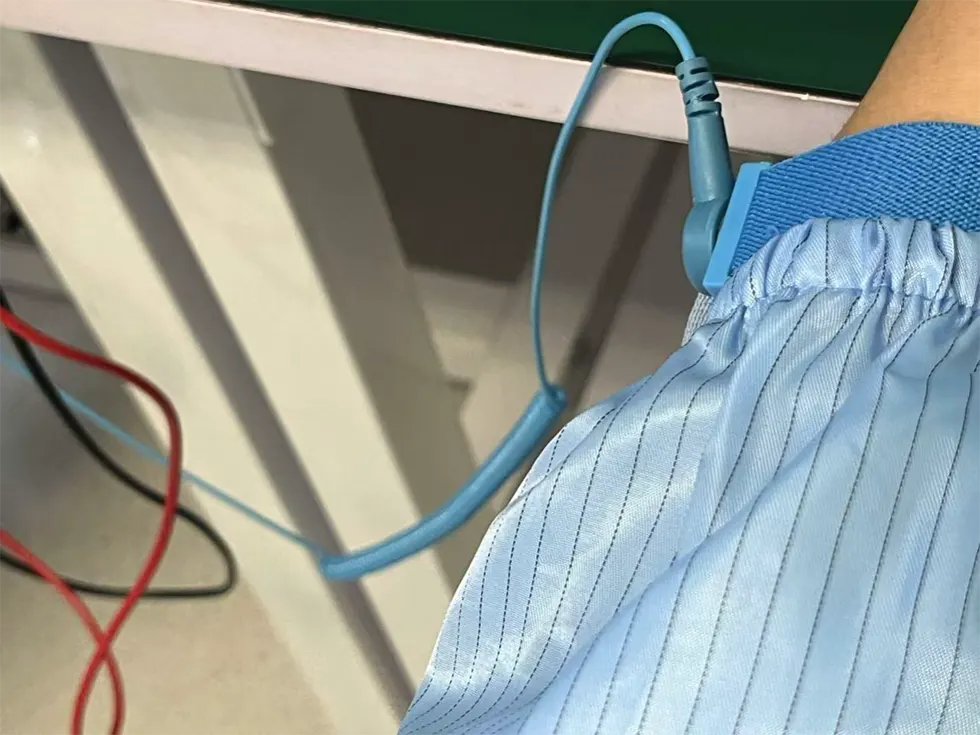

● This device is electrostatic-sensitive; therefore, strict adherence to anti-static protection measures is required during packaging, transportation, and usage. Additionally, precautions must be taken to prevent power supply surges, as failure to do so may result in permanent damage to the device (e.g., ensuring proper equipment grounding and wearing an anti-static wrist strap).

● Optical fibers are fragile; do not use the fiber to pull the device. When inserting or removing a device from its socket, do not apply pressure to or pull on the sleeve located at the rear of the device housing. For devices equipped with connectors, ensure that both the device and the fiber connector are lifted simultaneously during installation or removal.

● If the pins require soldering, the soldering temperature must not exceed 260°C, and the soldering time must not exceed 10 seconds. Particular attention must be paid to the following: during the soldering process, the device must be in an unpowered state, and the soldering iron must be properly grounded.

● Before powering up all components, first activate the cooler, and then proceed with incremental power-up steps to prevent chip overheating and overload.

Quality Assurance and After-Sales Service-1651nm DFB Fiber Coupled Laser Diode

● Warranty Period:

Free repair or replacement for non-human-induced defects within 1 year from purchase. Paid maintenance services available after 1 year.

● Exclusions from Free Warranty:

During the free warranty period, free repair or replacement services will be provided for faults caused by product quality issues. However, Box Optronics retains the right to refuse free repair services in the following cases within the warranty period:

(1) Damage caused by natural factors (e.g., lightning, dust) or environmental influences.

(2) Malfunctions due to improper operation by the user.

(3) Obvious physical damage caused by human error.

(4) Unauthorized disassembly, modification, or repair.

(5) Altered or incomplete warranty labels on the housing.

(6) Damage or loss during transportation.
