High-power 1653.7nm 40mW DFB Butterfly Laser
Box Optronics is a professional manufacturer and supplier of high-power 1653.7nm 40mW DFB butterfly lasers in China. With years of expertise in optoelectronic devices, we offer reliable bulk delivery and technical support to global clients through mature manufacturing processes and strict quality control, helping to accelerate their project implementation.
Table of Contents
1. Introduction of the High-power 1653.7nm 40mW DFB Butterfly Laser
2. Technical Specifications
3. Product Features
4. Typical Applications
5. Product details
6. Ordering Information
7. Datasheet and testsheet
8. Terms of quote and payment
9. Lead time
10. Operation Notes
11. Quality Assurance and After-Sales Service
Product Introduction
High-power 1653.7nm 40mW DFB Butterfly Laser utilizes a high-performance MQW DFB chip with a center wavelength of 1653.7nm, a wavelength tolerance of +/-1nm, and a side-mode rejection ratio (SMSR) >35dB. It features low threshold voltage, low power consumption, and high reliability. Integrating a thermistor, thermoelectric cooler (TEC), and monitoring diode, it supports long-term stable operation and is widely used in gas detection systems, passive device testing, and fiber optic sensing. Proper wiring, temperature and current control are required during operation to prevent fiber bending and damage.
Product Specifications
|
Parameter |
Symbol |
Condition |
Min. |
Typ. |
Max. |
Unit |
|
Storage temperature |
Ts |
– |
-40 |
– |
85 |
℃ |
|
Operating case temperature |
Top |
– |
-20 |
– |
70 |
℃ |
|
LD Forward Current |
IF |
CW |
– |
– |
500 |
mA |
|
LD Reverse Current |
Ir |
– |
– |
– |
2 |
mA |
|
LD Reverse Voltage |
VLR |
– |
– |
– |
3 |
V |
|
PD Forward Current |
IFPD |
– |
– |
– |
-10 |
mA |
|
PD Reverse Voltage |
VRPD |
– |
– |
– |
20 |
V |
|
TEC current |
ITEC |
– |
– |
– |
2 |
A |
|
TEC voltage |
VTEC |
– |
– |
1.5 |
3.5 |
V |
|
Fiber Bend Radius |
– |
– |
30 |
– |
– |
mm |
|
Relative Humidity |
RH |
Non Condensing |
0 |
– |
95% |
– |
|
Lead Soldering Time |
– |
260℃ |
– |
– |
10 |
Second |
|
Fiber Axial Pull Force |
– |
– |
– |
– |
5 |
N |
|
Fiber Side Pull Force |
– |
– |
– |
– |
2.5 |
N |
Product Features
● Industry-standard 14-pin butterfly package;
● Built-in TEC and monitor PD;
● High stability 40mW optical output;
● High-performance, multiquantum well (MQW) distributed-feedback (DFB) laser.
Product Applications
● Tunable diode laser absorption spectroscopy TDLAS;
● CH4 Monitoring;
● Light source for environmental monitoring and gas analyzers.
Product Details

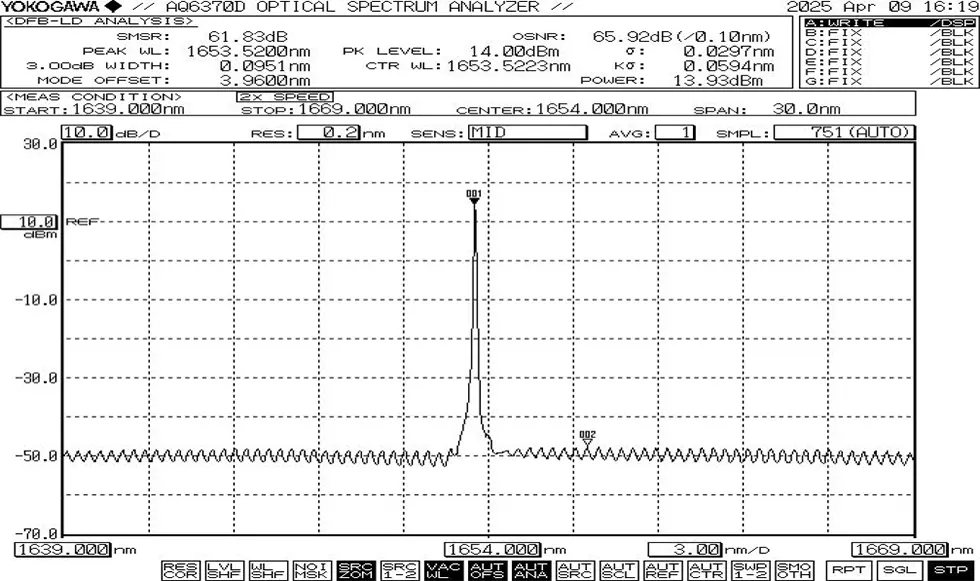

● Typical spectrum: 1653.7nm, +/-1nm WL tolerance.

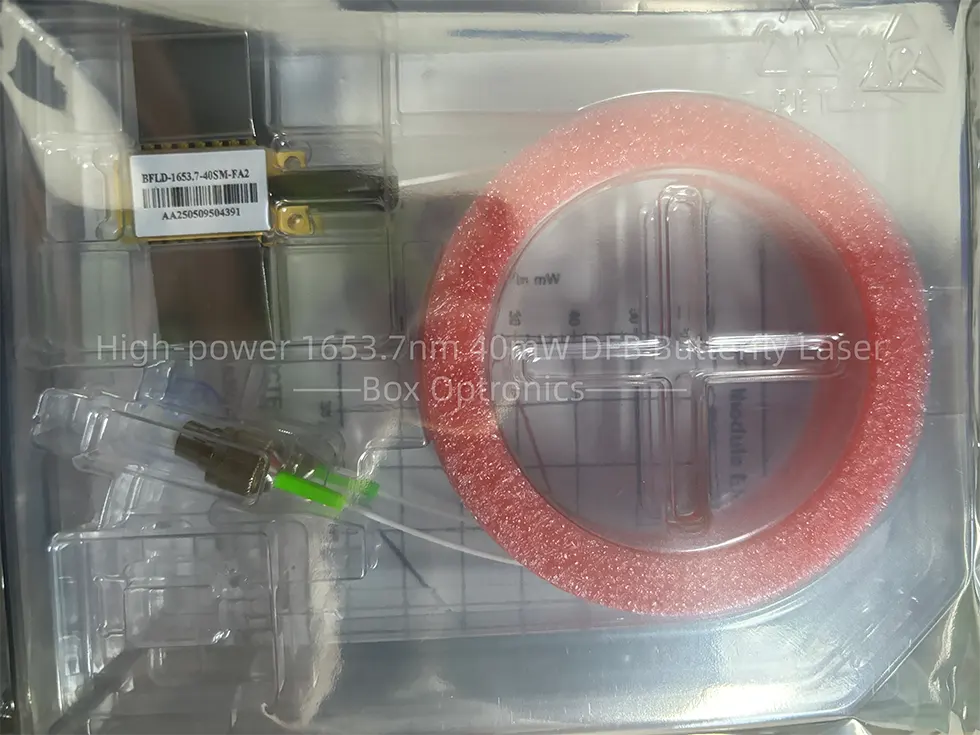

● Packing example
|
|
Accessories |
Quantity |
|
1 |
High-power 1653.7nm 40mW DFB Butterfly Laser |
1 |
|
2 |
Product Test Report |
1 |
Ordering information
|
Name |
Wavelength |
Output power |
Fiber type |
Connector |
PIN-OUT |
|
BFLD |
-XXXX |
-XX |
XX |
-XX |
X |
|
DFB laser diode |
1653:1653.7nm Other |
10:10mW 40:40mW Other |
SM:Single mode PM: Polarization maintaining
|
FA: FC/APC SA: SC/APC Other |
NULL:Type 1 2:Type 2 |
eg: BFLD-1653-40SM-FA
(Order information: High-power 1653.7nm 40mW DFB Butterfly Laser, with SM fiber, FC/APC connector, type1 pin-out).
Datasheet and Testsheet
Terms of quote and payment
● Terms of quote
(1) EXW:
If you have a DHL/ UPS/ FedEx account, Box Optronics suggest using the EXW. We ship via your account; we don't charge the shipping cost.
(2) DAP:
If you don't have an account, please prepay the shipping cost for the products.
(3)Other
● Terms of payment
PayPal and T/T are available.
Lead time
It takes around 10 working days for production. (If there are some in stock, it will be faster shipped.)
The international logistics might take 3-5 working days.
Operation Notes
● Optical fibers are fragile; do not use the fiber to pull the device. When inserting or removing a device from its socket, do not apply pressure to or pull on the sleeve located at the rear of the device housing. For devices equipped with connectors, ensure that both the device and the fiber connector are lifted simultaneously during installation or removal.
● If the pins require soldering, the soldering temperature must not exceed 260°C, and the soldering time must not exceed 10 seconds. Particular attention must be paid to the following: during the soldering process, the device must be in an unpowered state, and the soldering iron must be properly grounded.
● Before powering up the device, first activate the cooler, and then apply power in small increments to prevent the chip from overheating or becoming overloaded.
Quality Assurance and After-Sales Service
● Warranty Period:
Free repair or replacement for non-human-induced defects within 1 year from purchase. Paid maintenance services available after 1 year.
● Exclusions from Free Warranty:
During the free warranty period, free repair or replacement services will be provided for faults caused by product quality issues. However, Box Optronics retains the right to refuse free repair services in the following cases within the warranty period:
(1) Damage caused by natural factors (e.g., lightning, dust) or environmental influences.
(2) Malfunctions due to improper operation by the user.
(3) Obvious physical damage caused by human error.
(4) Unauthorized disassembly, modification, or repair.
(5) Altered or incomplete warranty labels on the housing.
(6) Damage or loss during transportation.
