Product Introduction

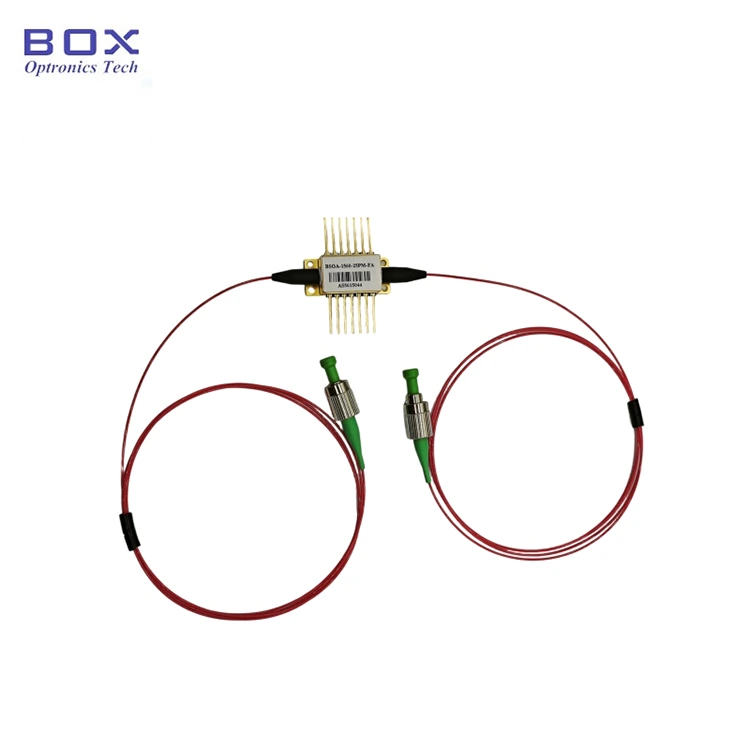

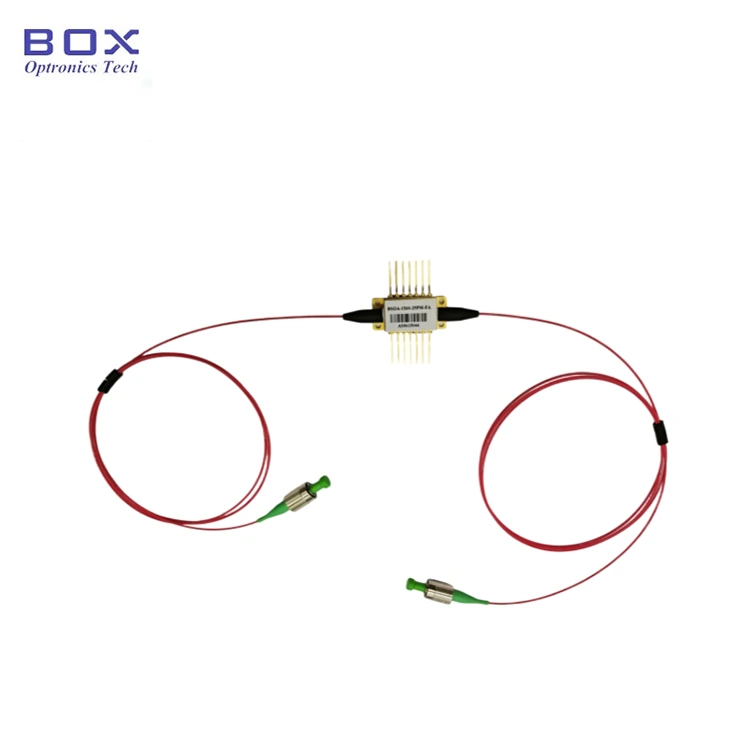

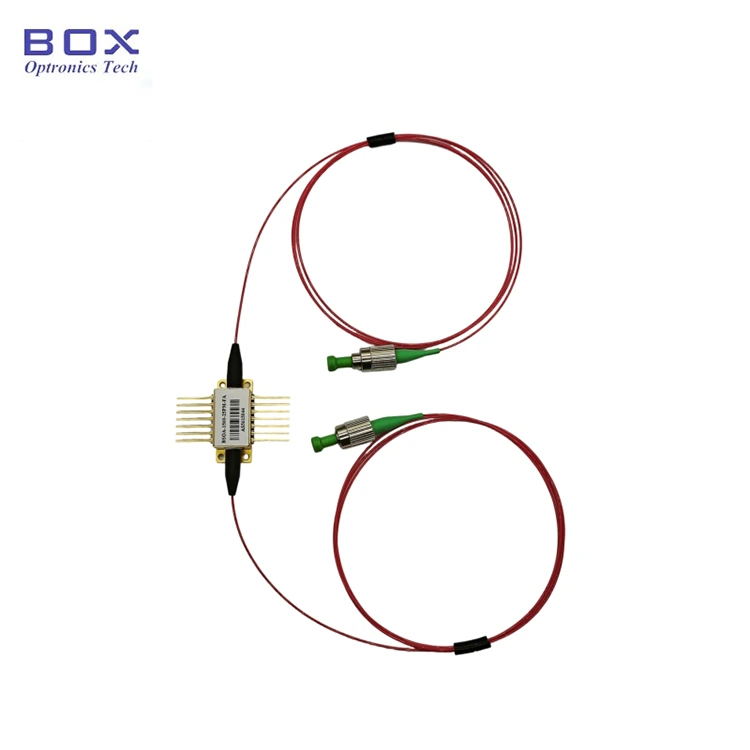

This is a 1550nm 23dBm Semiconductor Optical Amplifier with a 14-pin butterfly package. It features 23dBm saturation optical power, 30~35dB small signal gain, typical 100nm -3dB Gain bandwidth, and integrates TEC and thermistor for a stable and smooth spectrum. Suitable for Loss compensation for fiber optical connections and switches, WDM fiber optical networks, and MOPA lasers.

Product Specifications

Product Features

● 40G and 100G C-Band blocking shutter or modulation;

● Low Noise Figure &Low polarization dependence;

● 14-pin BTF package with TEC and thermistor.

Product Applications

● Loss compensation for fiber optical connection and switch;

● WDM fiber optical networks;

● MOPA (Master Oscillator Power Amplifier)laser.

Product Details

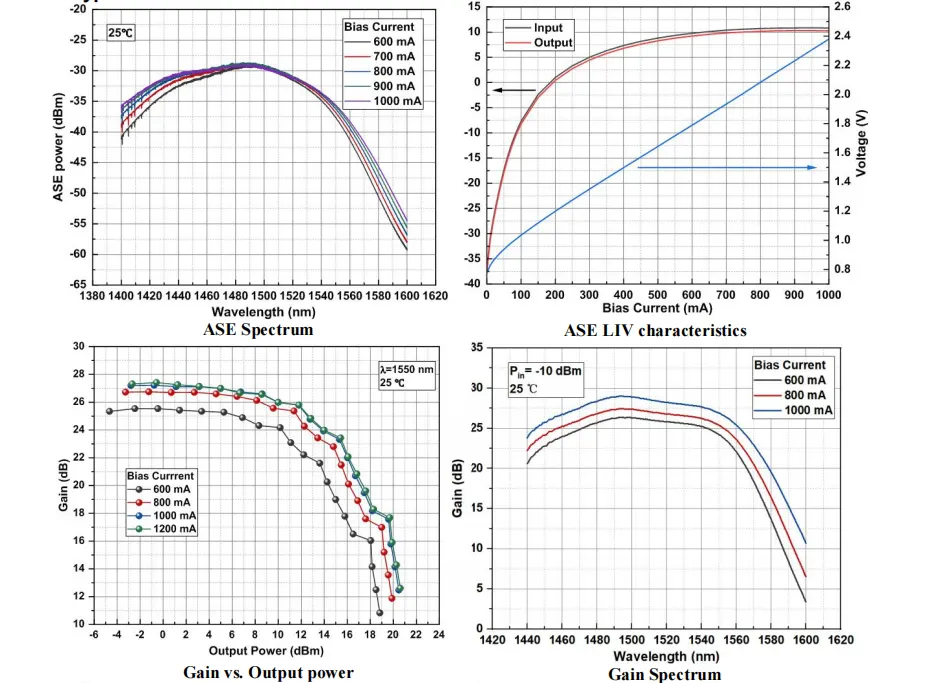

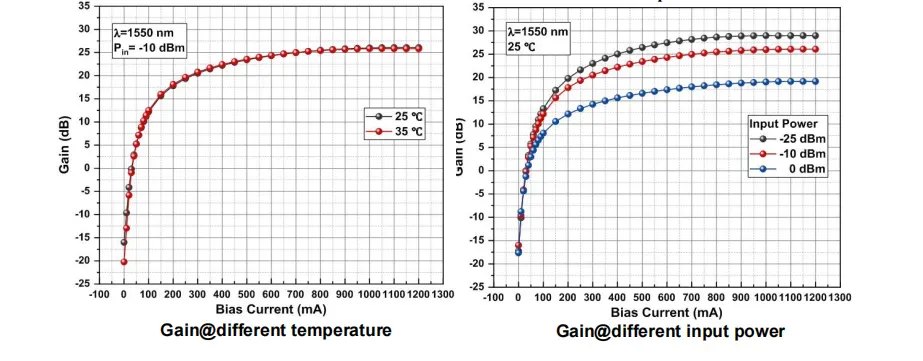

● Typical Characteristic Curve

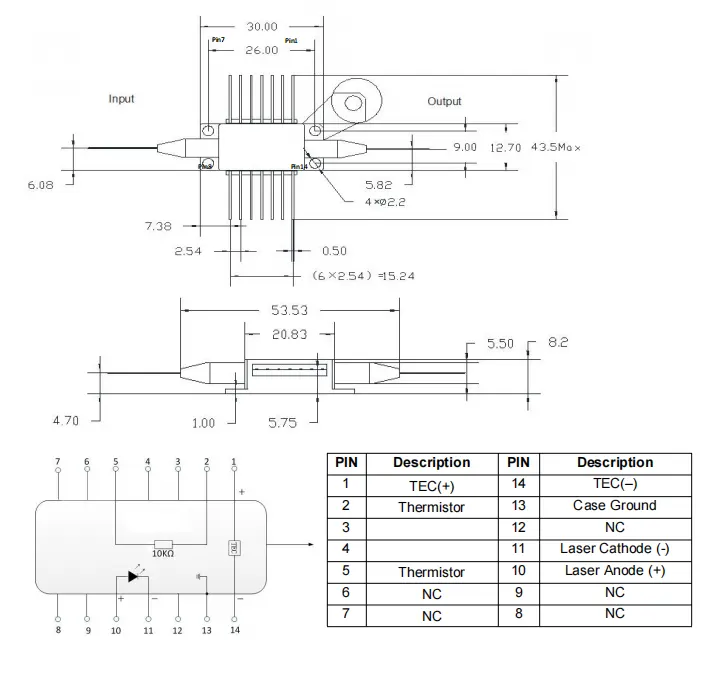

● Package drawing&PIN-OUT Definition(Unit:mm)-1550nm 23dBm Semiconductor Optical Amplifier

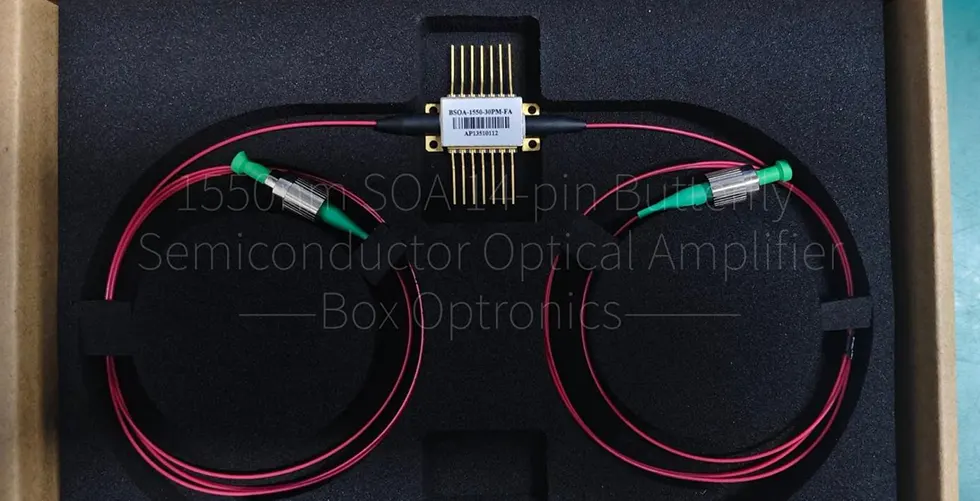

● Packing example

*Standalone device; no built-in driver (module package integrates with a driver is optional).

Ordering information

eg: BSOA-1550-35PM-FA

(Order information: 1550nm 23dBm Semiconductor Optical Amplifier, 30~35dB small signal gain, 23dBm saturation optical power, 14-pin butterfly package, with SM Hi1060 fiber, FC/APC connector).
