1270nm 10dBm Semiconductor Optical Amplifier

Tableof Contents

1. Introduction of the 1270nm 10dBm Semiconductor Optical Amplifier

2. Technical Specifications

3. Product Features

4. Typical Applications

5. Product details

6. Ordering Information

7. Datasheet

8. Terms of quote and payment

9. Lead time

10. Operation Notes

11. Quality Assurance and After-Sales Service

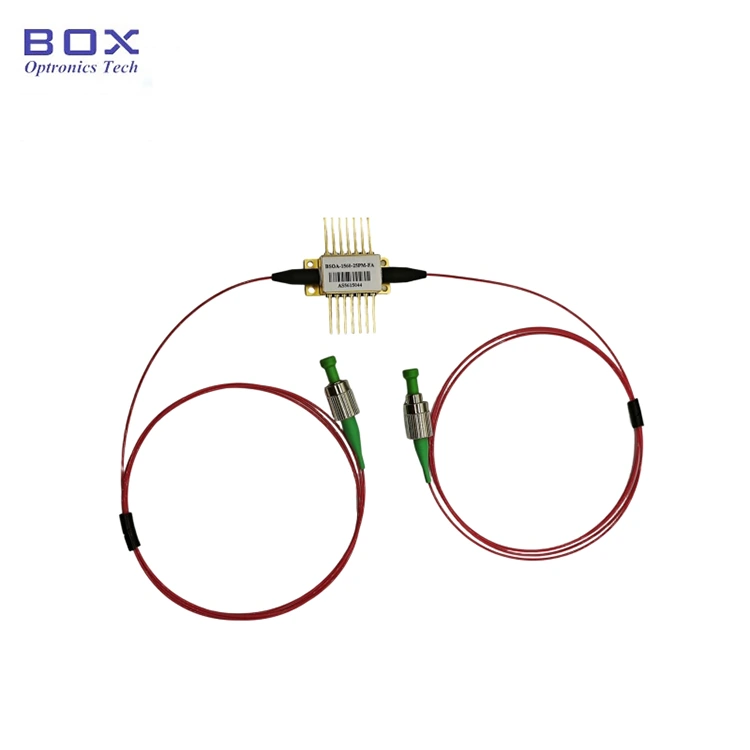

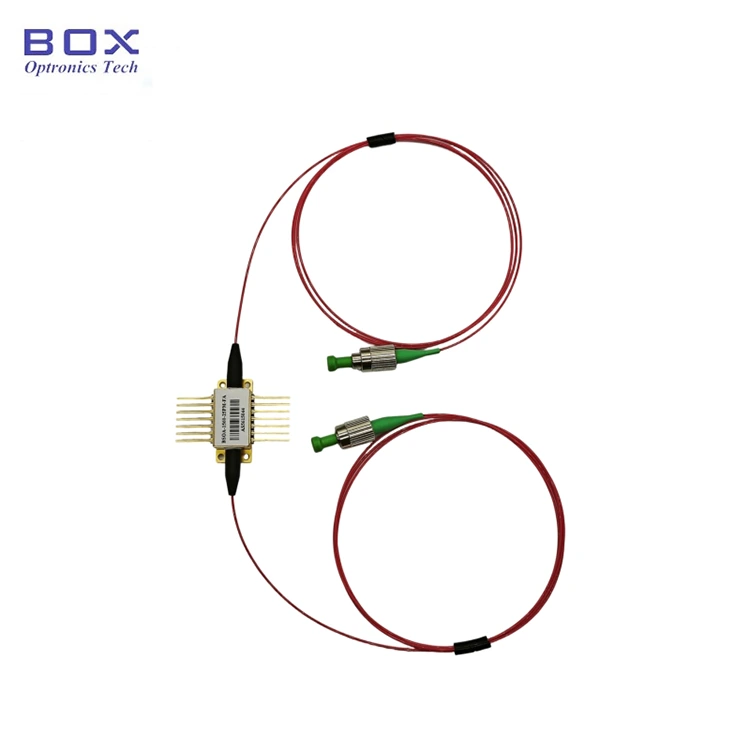

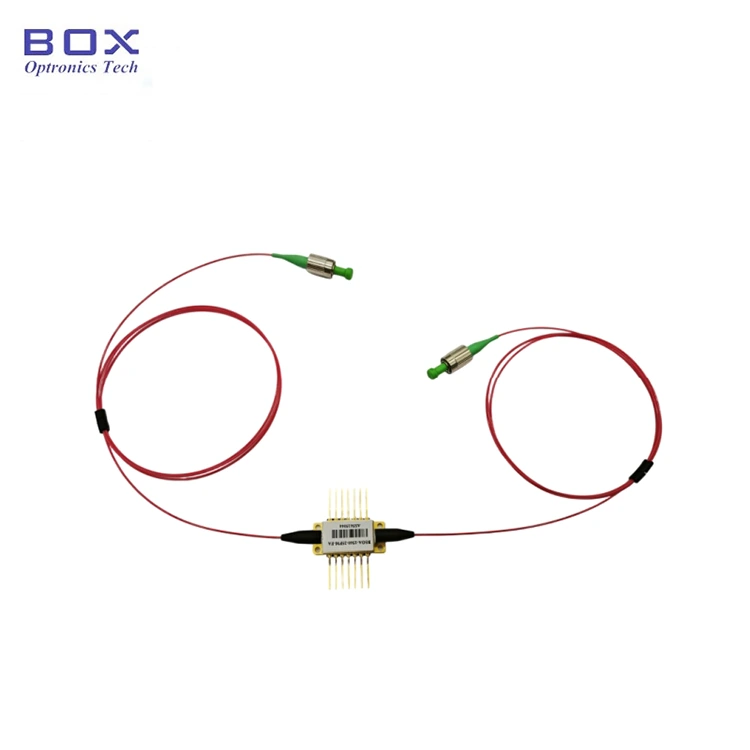

Product Introduction

This is a 1270nm 10dBm Semiconductor Optical Amplifier with a 14-pin butterfly package. It features 10~13dBm saturation optical power, 18dB small signal gain, over 60nm -3dB Gain bandwidth, and integrates TEC and thermistor for a stable and smooth spectrum. Suitable for Loss compensation for fiber optical connections and switches, WDM fiber optical networks, and MOPA lasers.

Product Specifications

Product Features

● 40G and 100G C-Band blocking shutter or modulation;

● Low Noise Figure &Low polarization dependence;

● 14-pin BTF package with TEC and thermistor.

Product Applications

● Loss compensation for fiber optical connection and switch;

● WDM fiber optical networks;

● MOPA (Master Oscillator Power Amplifier)laser.

Product Details

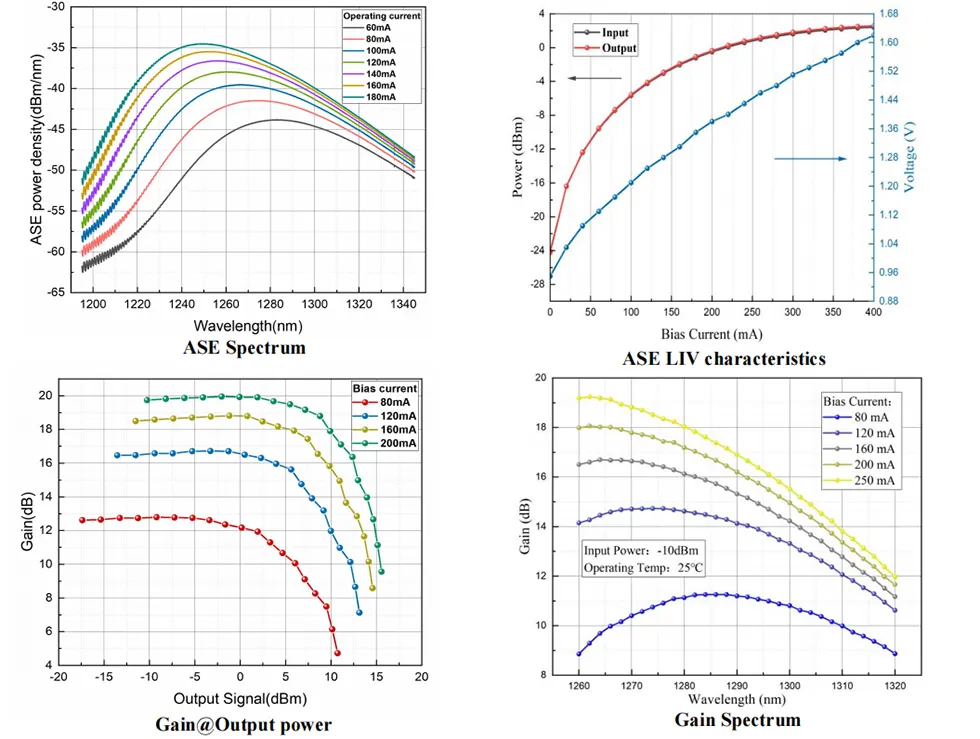

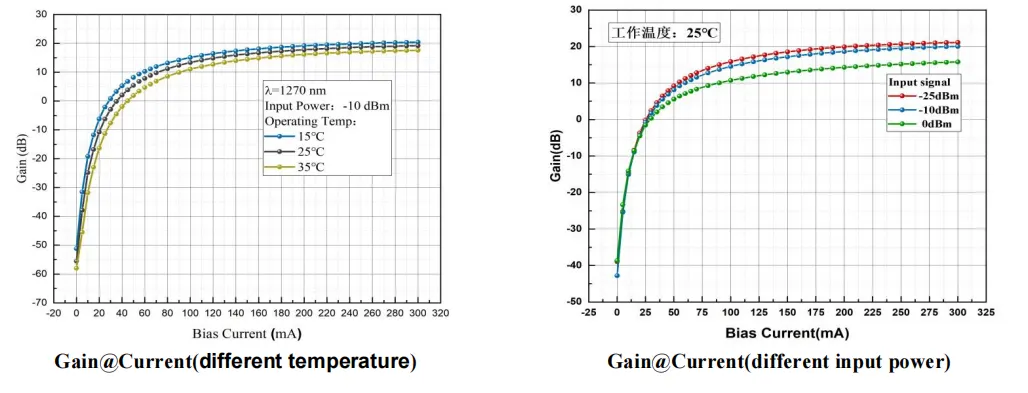

● Typical Characteristic Curve

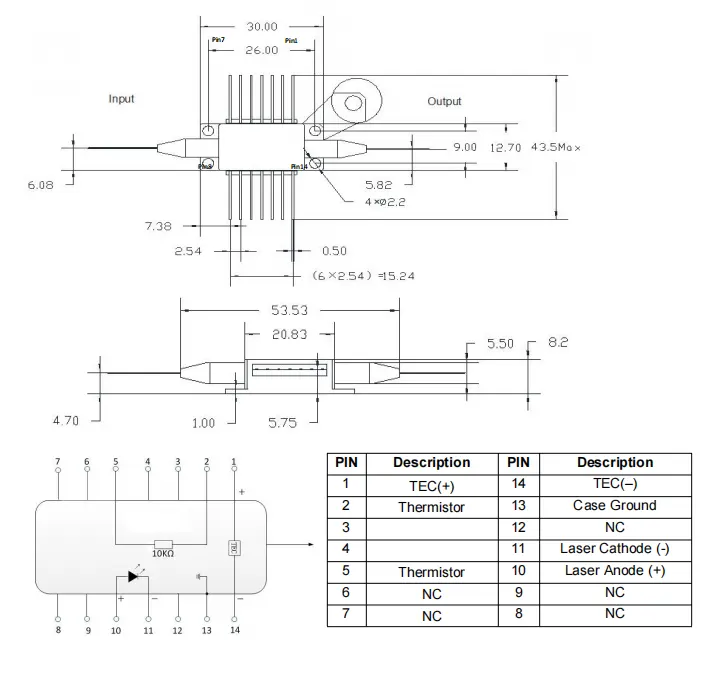

● Package drawing&PIN-OUT Definition(Unit:mm)-1270nm 10dBm Semiconductor Optical Amplifier

Ordering information

eg: BSOA-1270-18SM-FA

(Order information: 1270nm 10dBm Semiconductor Optical Amplifier, 18dB small signal gain, 10~13dBm saturation optical power, 14-pin butterfly package, with SM Hi1060 fiber, FC/APC connector).

For other customized requirements, please contact: sales06@boxoptronics.com

Datasheet

Datasheet

Terms of quote and payment

● Terms of quote

(1) EXW:

If you have a DHL/ UPS/ FedEx account, Box Optronics suggest using the EXW. We ship via your account; we don't charge the shipping cost.

(2) DAP:

If you don't have an account, please prepay the shipping cost for the products.

(3)Other

● Terms of payment

PayPal and T/T are available.

Lead time

It takes around 10-15 working days for production. (If there are some in stock, it will be faster shipped.)

The international logistics might take 3-5 working days.

Operation Notes

● When operating, this device emits a high-intensity laser beam; do not look directly into the fiber end face, as doing so may cause eye injury.

● This device is electrostatic-sensitive; therefore, strict adherence to anti-static protection measures is required during packaging, transportation, and usage. Additionally, precautions must be taken to prevent power supply surges, as failure to do so may result in permanent damage to the device (e.g., ensuring proper equipment grounding and wearing an anti-static wrist strap).

● Optical fibers are fragile; do not use the fiber to pull the device. When inserting or removing a device from its socket, do not apply pressure to or pull on the sleeve located at the rear of the device housing. For devices equipped with connectors, ensure that both the device and the fiber connector are lifted simultaneously during installation or removal.

● If the pins require soldering, the soldering temperature must not exceed 260°C, and the soldering time must not exceed 10 seconds. Particular attention must be paid to the following: during the soldering process, the device must be in an unpowered state, and the soldering iron must be properly grounded.

Quality Assurance and After-Sales Service

● Warranty Period:

Free repair or replacement for non-human-induced defects within 1 year from purchase. Paid maintenance services available after 1 year.

● Exclusions from Free Warranty:

During the free warranty period, free repair or replacement services will be provided for faults caused by product quality issues. However, Box Optronics retains the right to refuse free repair services in the following cases within the warranty period:

(1) Damage caused by natural factors (e.g., lightning, dust) or environmental influences.

(2) Malfunctions due to improper operation by the user.

(3) Obvious physical damage caused by human error.

(4) Unauthorized disassembly, modification, or repair.

(5) Altered or incomplete warranty labels on the housing.

(6) Damage or loss during transportation.
