1310nm DFB 100KHz BTF Narrow Linewidth Laser

Table of Contents

1. Introduction of the 1310nm DFB 100KHz BTF Narrow Linewidth Laser

2. Technical Specifications

3. Product Features

4. Typical Applications

5. Product details

6. Ordering Information

7. Datasheet

8. Terms of quote and payment

9. Lead time

10. Operation Notes

11. Quality Assurance and After-Sales Service

Product Introduction

The 1310nm DFB 100KHz BTF Narrow Linewidth Laser is a high-performance laser designed for applications in Lidar, wind radar, optical fiber sensing, and coherent communication. It features an output power up to 100mW, a 3dB bandwidth of less than 100kHz, and a low threshold current. Optional with SM/PM fiber, wide operating temperature, and high reliability. Please use under ESD protection and control the drive current & temperature strictly, and avoid overcurrent damage.

Product Specifications

Product Features

● SMF-28e or PM1310 pigtail;

● Output power >100mW

● Narrow linewidth <100KHz;

● 14-pin BTF package with TEC, optical isolator, and Monitor PD.

Product Applications

● Lidar;

● Wind radar;

● Optical fiber sensing;

● Coherent communication.

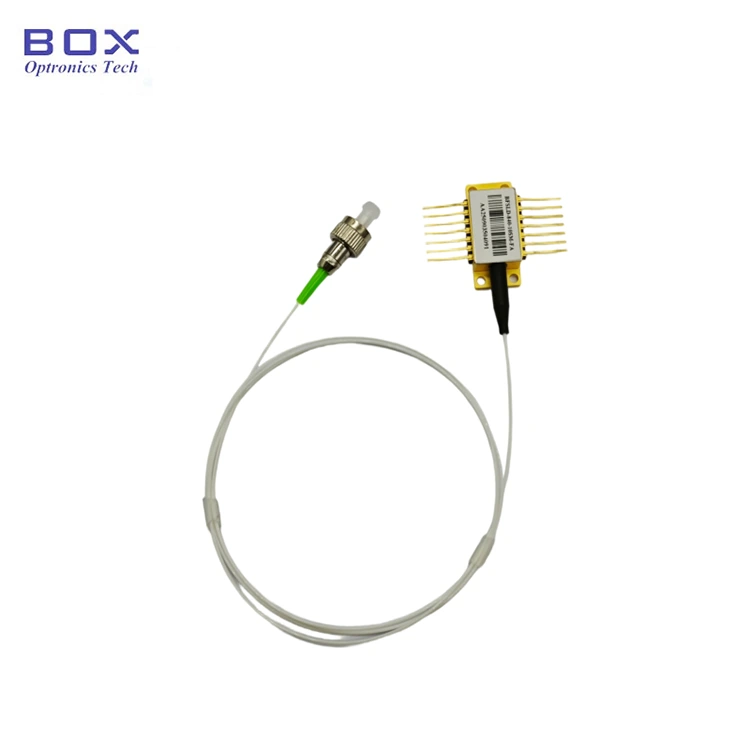

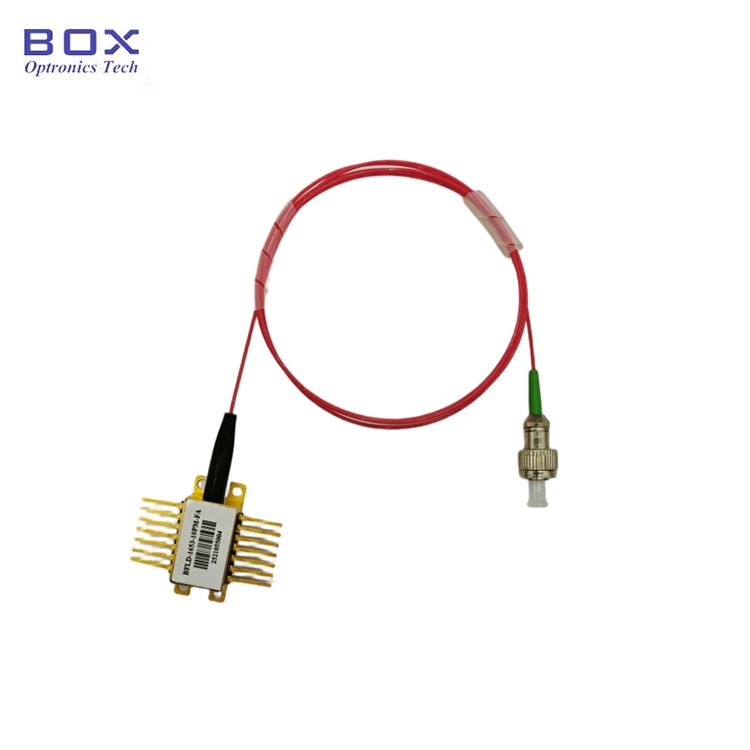

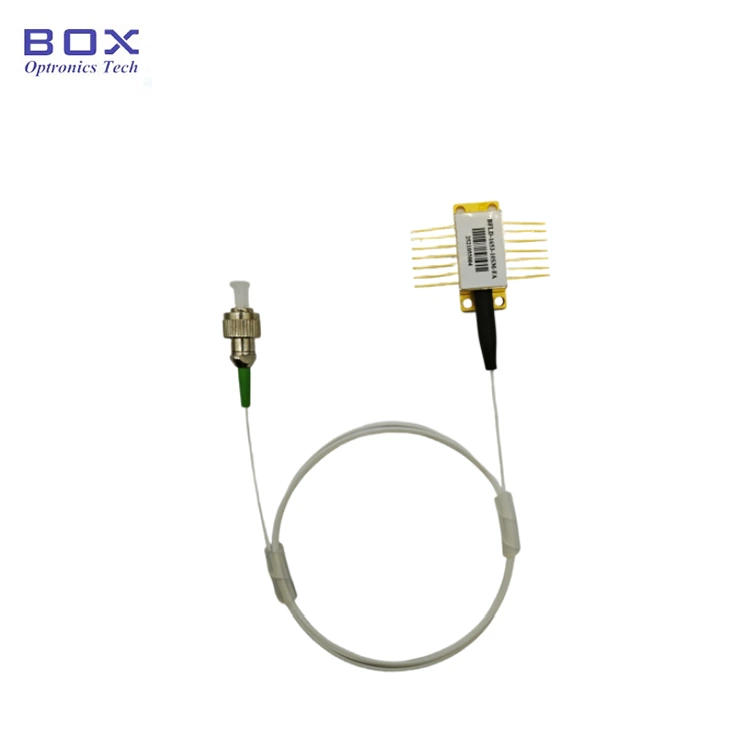

Product Details

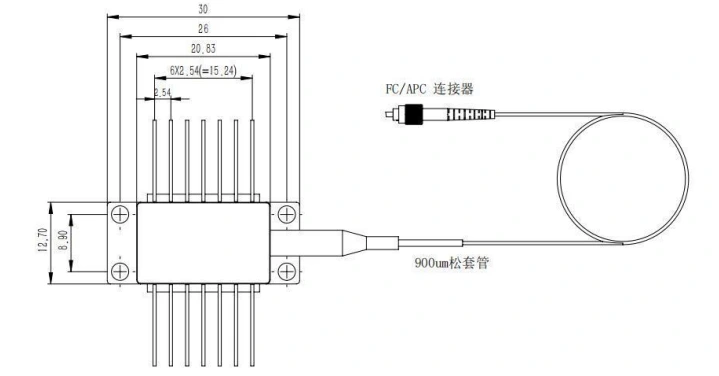

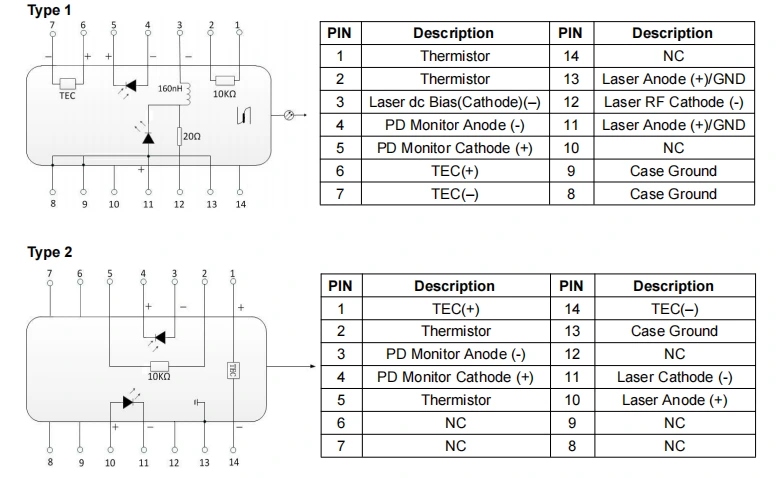

● Package drawing&PIN-OUT Definition(Unit:mm)-1310nm DFB 100KHz BTF Narrow Linewidth Laser

● FAQ

(1) Is it possible to change the wavelength by adjusting the current? What is the range?

--Yes. The current wavelength coefficient is 0.01 nm/mA, and the temperature wavelength coefficient is 0.1 nm/℃. The WL adjustable range is around ~center WL+/- 1 nm

(2) What's the line width? Do you provide a normal line width LD?

--3dB line width is less than 100kHz. MHz-level LD is available.

(3) What's the power regulation range?

--10~100%

(4) Do you provide a protective fiber tube and fiber connector?

--Yes. 900um loose tube and FC/APC, SC/APC, or other connectors are optional.

Ordering information

eg: BNLD-1310-11HPM-FA

(Order information: 1310nm DFB 100KHz BTF Narrow Line width Laser, 100mW output power, with PM fiber, FC/APC connector, type1 pin-out).

For other customized requirements, please contact: sales06@boxoptronics.com
