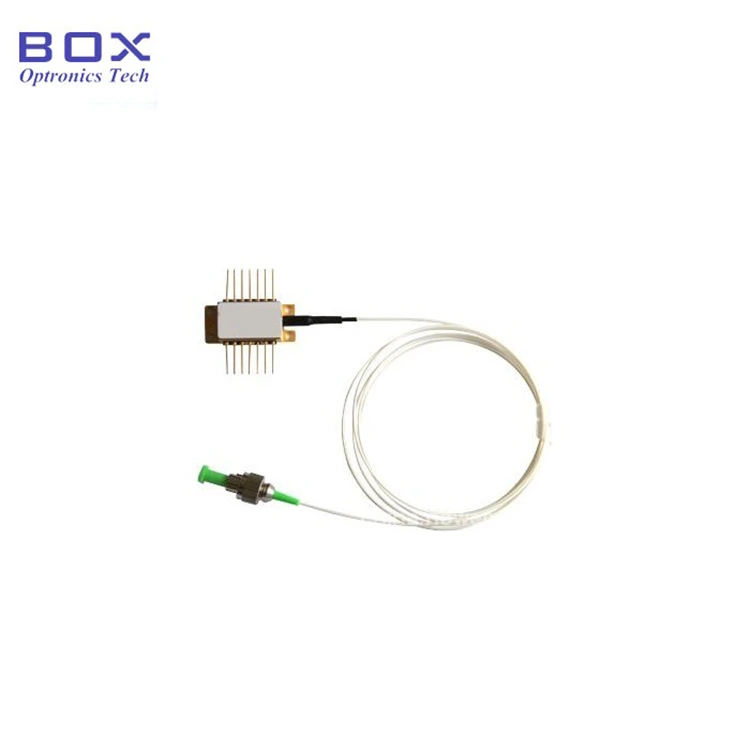

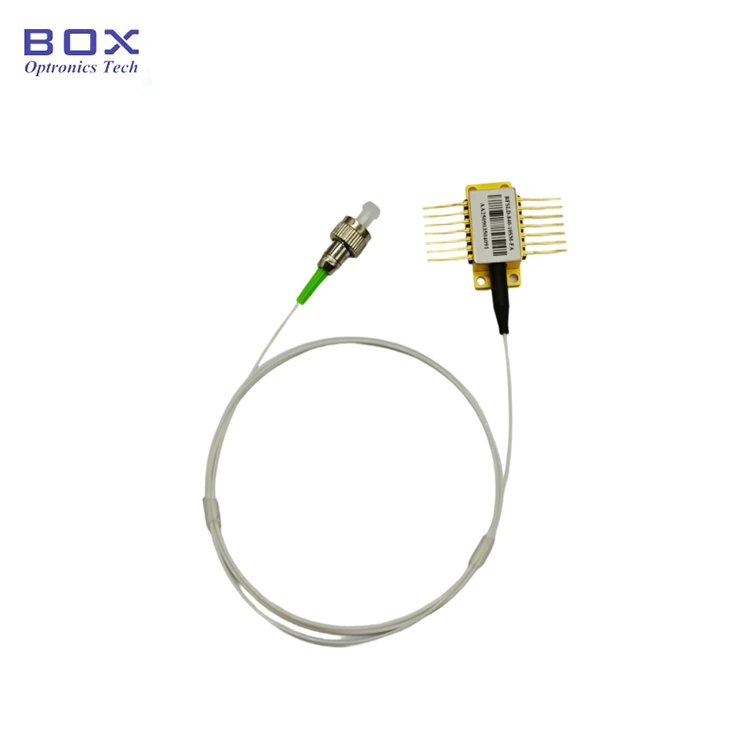

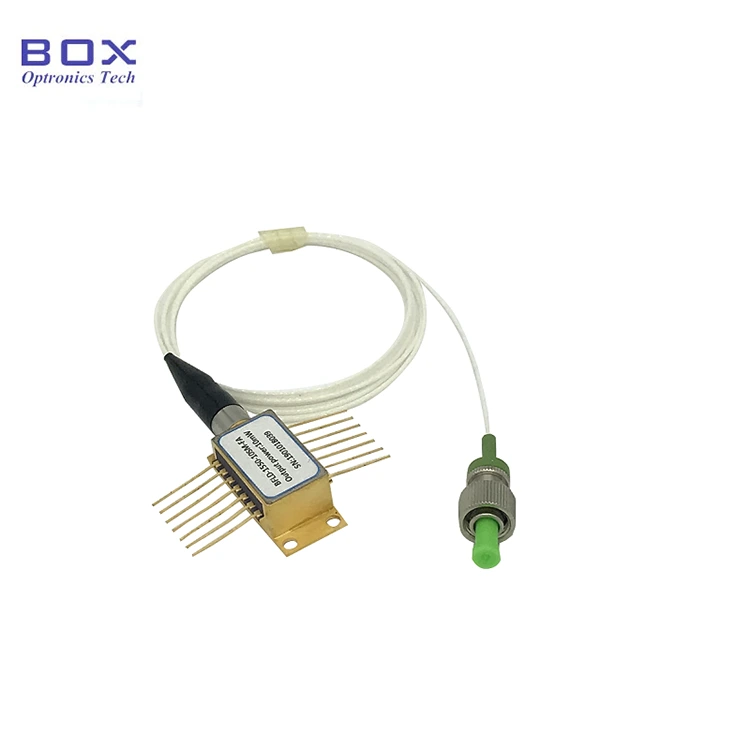

1030nm 200mW 100KHz DFB Butterfly Laser Diode

Table of Contents

1. Introduction of the 1030nm 200mW 100KHz DFB Butterfly Laser Diode

2. Technical Specifications

3. Product Features

4. Typical Applications

5. Product details

6. Ordering Information

7. Datasheet and testsheet

8. Terms of quote and payment

9. Lead time

10. Operation Notes

11. Quality Assurance and After-Sales Service

Product Introduction

This is a 1030nm 200mW 100KHz DFB Butterfly Laser Diode, with +/-2nm wavelength tolerance, a 14-pin standard butterfly package, and PM980 fiber. It features up a high output power and a narrow linewidth, and integrates TEC and thermistor. Suitable for optical sensing and imaging. Please use it under ESD protection.

Product Specifications

Product Features

● PM980 fiber pigtail;

● 200mW high output power;

● Below 100kHz narrow linewidth;

● 14-pin BTF package with TEC, thermistor and Monitor PD.

Product Applications

● Lidar;

● Fiber optic sensing;

● Spectroscopy;

● Seed source for lasers.

Product Details

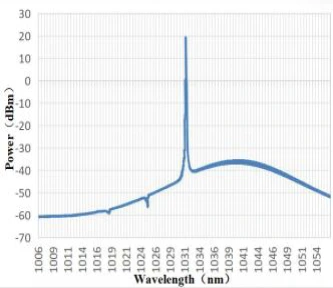

● Typical spectrum: 1030nm, +/-2nm wavelength tolerance.

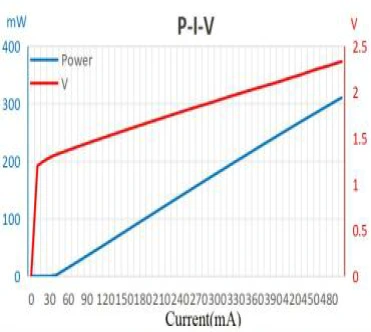

● PIV-1030nm 200mW 100KHz DFB Butterfly Laser Diode

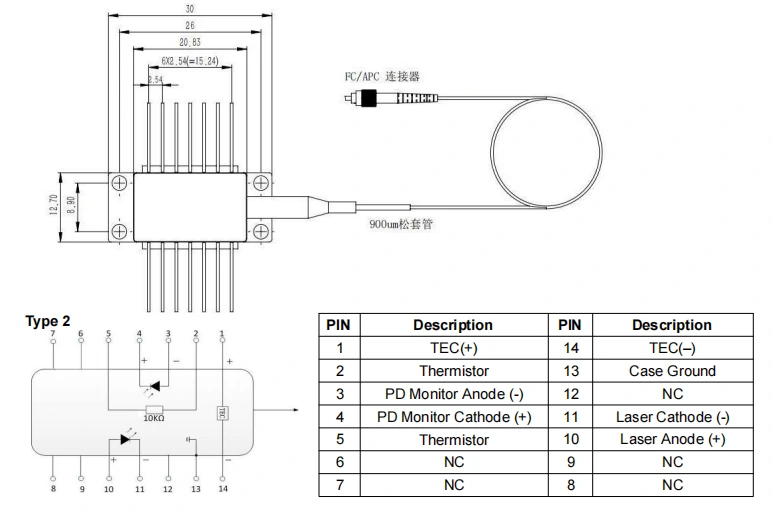

● Package drawing&PIN-OUT Definition(Unit:mm)-1030nm 200mW 100KHz DFB Butterfly Laser Diode

● FAQ

(1) Is it possible to change the wavelength by adjusting the current? What is the range?

--Yes. The current wavelength coefficient is 0.01 nm/mA, and the temperature wavelength coefficient is 0.1 nm/℃. The WL adjustable range is around ~center WL+/- 1 nm.

(2) What’s the pigtail length?

--1.2+/-0.1 meter.

(3) What's the power regulation range?

--10~100%

Ordering information

eg: BNLD-1030-2HPM-FA

(Order information: 1030nm 200mW 100KHz DFB Butterfly Laser Diode, with PM980 fiber, FC/APC connector, pump pin).

For other customized requirements, please contact: sales06@boxoptronics.com

Datasheet and Testsheet

Datasheet

Testsheet

Terms of quote and payment

● Terms of quote

(1) EXW:

If you have a DHL/ UPS/ FedEx account, Box Optronics suggest using the EXW. We ship via your account; we don't charge the shipping cost.

(2) DAP:

If you don't have an account, please prepay the shipping cost for the products.

(3)Other

● Terms of payment

PayPal and T/T are available.

Lead time

It takes around 10 working days for production. (If there are some in stock, it will be faster shipped.)

The international logistics might take 3-5 working days.

Operation Notes

● Laser Radiation Hazard:When the device is in operation, it emits a high-intensity laser beam. Do not look directly at the fiber end-face, as this may cause eye injury.

● ESD Protection:This device is electrostatic-sensitive. Therefore, strict anti-static protection measures must be adhered to during packaging, transportation, and use. Additionally, precautions should be taken to prevent power-supply surges, as failure to do so may result in permanent damage to the device (e.g., ensure proper equipment grounding and wear an anti-static wrist strap).

● Fiber and Device Handling:Optical fibers are fragile. Do not pull the device using the fiber. When inserting or removing the device from its socket, do not apply pressure to or pull on the sleeve at the rear of the device housing. For devices equipped with connectors, ensure that both the device and the fiber connector are lifted simultaneously during installation or removal.

● Pin Soldering Requirements:If the pins need to be soldered, the soldering temperature must not exceed 260°C, and the soldering time must not exceed 10 seconds. Pay particular attention to the following: during the soldering process, the device must be in an unpowered state, and the soldering iron must be properly grounded.

Quality Assurance and After-Sales Service

● Warranty Period:

Free repair or replacement for non-human-induced defects within 1 year from purchase. Paid maintenance services available after 1 year.

● Exclusions from Free Warranty:

During the free warranty period, free repair or replacement services will be provided for faults caused by product quality issues. However, Box Optronics retains the right to refuse free repair services in the following cases within the warranty period:

(1) Damage caused by natural factors (e.g., lightning, dust) or environmental influences.

(2) Malfunctions due to improper operation by the user.

(3) Obvious physical damage caused by human error.

(4) Unauthorized disassembly, modification, or repair.

(5) Altered or incomplete warranty labels on the housing.

(6) Damage or loss during transportation.
