Micro-Module C-band Erbium-doped Fiber Booster Amplifier
Box Optronics is a leading supplier of Micro-Module C-band Erbium-doped Fiber Booster Amplifier. It adopts a unique miniaturized packaging design, with high gain, low noise, and small size, suitable for applications in limited spaces. We possess large-scale delivery capabilities, and our products, characterized by excellent output stability and high cost-effectiveness, have won widespread recognition from customers worldwide. They are widely used in optical fiber communication, optical fiber sensors, and fiber laser fields.
Table of Contents
1. Introduction of the Micro-Module C-band Erbium-doped Fiber Booster Amplifier
2. Technical Specifications
3. Product Features
4. Typical Applications
5. Product details
6. Ordering Information
7. Datasheet
8. Terms of quote and payment
9. Lead time
10. Operation steps
11. Operation Notes and Maintenance
12. Quality Assurance and After-Sales Service
Product Introduction
Micro-Module C-band Erbium-doped Fiber Booster Amplifiers are designed for applications in limited spaces. The demensions are 50(W)×50(D)×15(H)mm or 45(W)×65(D)×10(H)mm optional. They can be used for power amplification of laser signals in the C-band 1530~1565nm wavelength range. They feature a 10/13/17/20/23dBm high power, and low noise. A communication serial port and power cable are provided for PC operation. When using these modules, ensure the fiber end face is clean, be aware of laser input limitations, and take necessary laser safety precautions.
Product Specifications
|
Parameters |
Unit |
Values |
Notes |
||||
|
Wavelength range |
nm |
1530~1565 |
C-band |
||||
|
Input power |
dBm |
-6~+3 |
|
||||
|
Output power |
dBm |
10 |
13 |
17 |
20 |
23 |
-3dBm Input |
|
Noise figure |
dB |
≤5.0 |
-3dBm Input |
||||
|
PDG |
dB |
≤0.3 |
|
||||
|
PMD |
ps |
0.5 |
|
||||
|
Input/Output isolation |
dB |
≥35 |
|
||||
|
Power monitor |
dB |
|
Input/Output |
||||
|
Operating mode |
- |
|
ACC/APC |
||||
|
Pigtail fiber |
- |
SMF-28 |
FC/APC |
||||
|
Control mode |
- |
DB9 Female(RS232)/TTL |
|
||||
|
Communication interface
|
- |
ZH2.54-4PIN |
M15 Module |
||||
|
- |
ZH1.5-6PIN |
M10 Module |
|||||
|
Dimensions |
mm |
50(W)×50(D)×15(H) |
Module |
||||
|
10~20dBm:45(W)×65(D)×10(H) |
Module |
||||||
|
Power supply |
- |
DC 5V, <10W |
Module |
||||
|
Operating temperature |
℃ |
-5 ~ +55 |
|
||||
|
Operating humidity |
℃ |
0~70% |
|
||||
Product Features
● Wide wavelength range-1530~1565nm;
● Subminiature design;
● Low noise <5dB;
● RS232/ TTL control mode.
Product Applications
● Optical fiber communication;
● Optical fiber sensor;
● Fiber laser.
Product Details

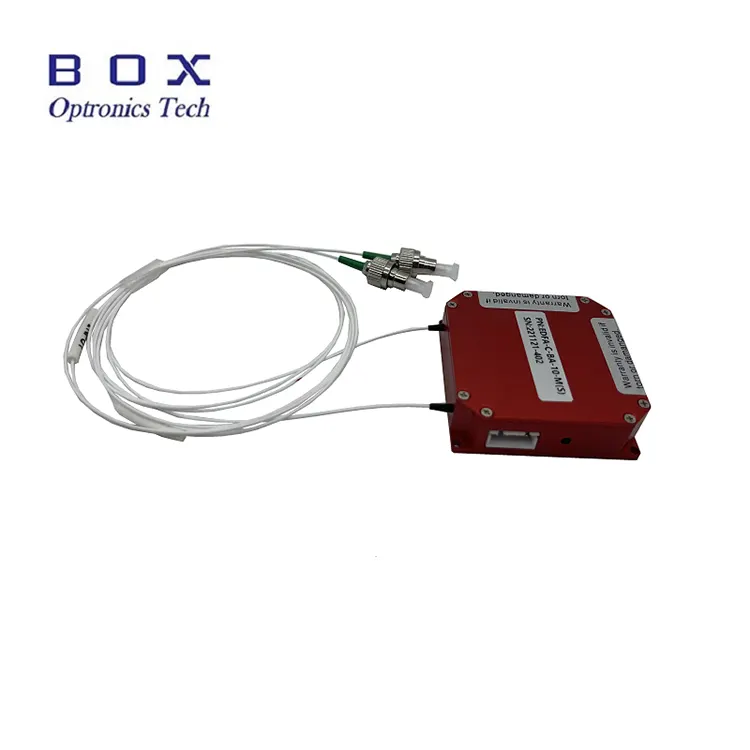

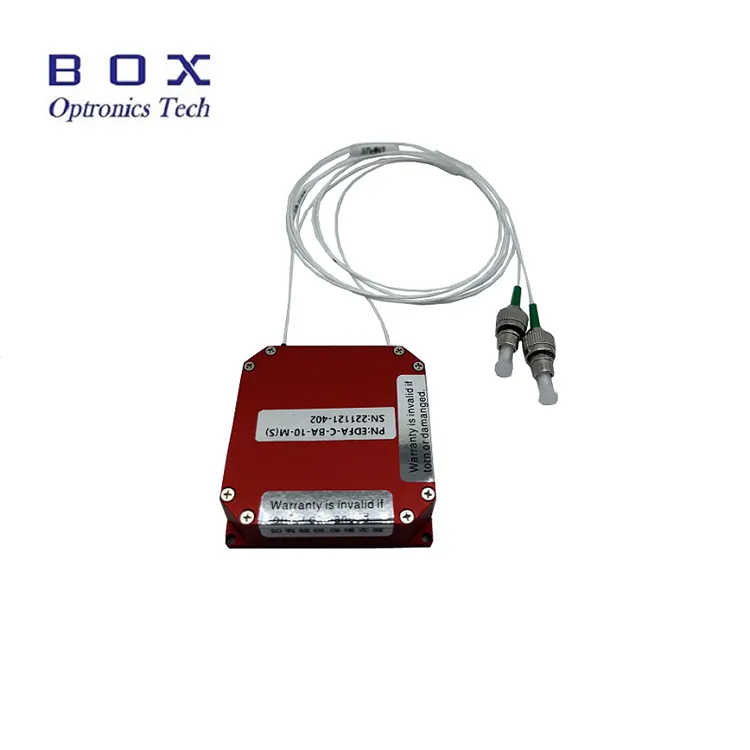

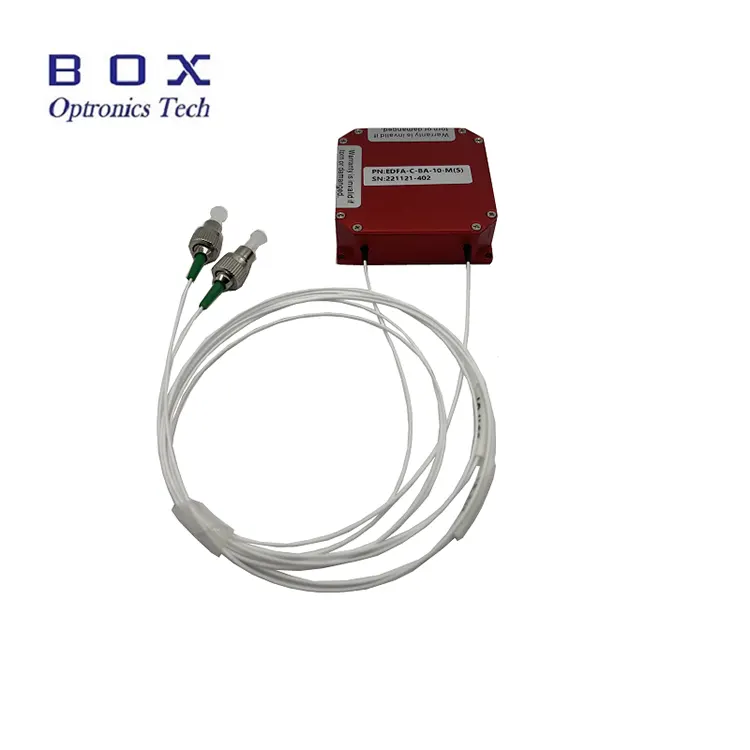

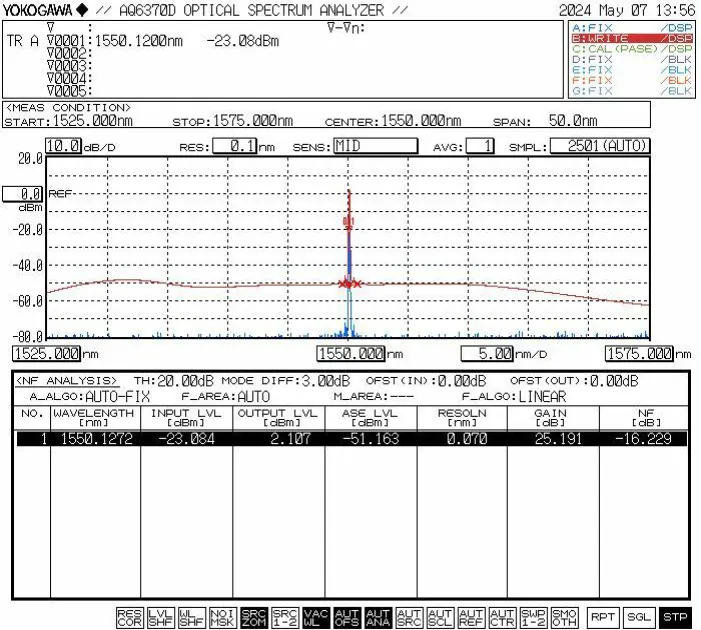

● Typical Characteristical Curve

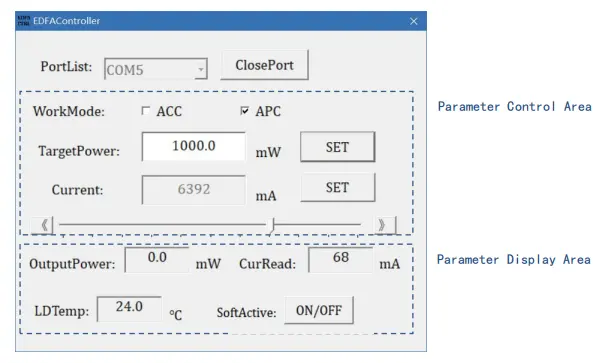

● Communication pin definition (from left to right: 1 to 4):
The communication level complies with TTL standards. A TTL-RS232 level conversion is required for connection to a computer.
|
Pin |
Definition |
|
1 |
+5V |
|
2 |
GND |
|
3 |
TTL TX |
|
4 |
TTL RX |
Ordering information
|
Name |
EDFA type |
Wavelength |
Output power |
Fiber type |
Dimension |
|
EDFA |
-XX |
-X |
-XX |
XX |
-X |
|
Erbium-doped Fiber Amplifier |
BA:Booster-Amp |
C:C-band |
10:10dBm 13:13dBm 17:17dBm 20:20dBm 23:23dBm |
SM:SMF-28e |
MIC:Module |
eg: EDFA-BA-C-23-SM-MIC
(Order information:Micro-Module C-band Erbium-doped Fiber Booster Amplifier,23dBmoutput power, with SMF-28efiber, module package).
For other customized requirements, please contact: sales06@boxoptronics.com
