Product Introduction

This is a LAN-WDM 10mW Fiber Coupled Laser with an industry-standard 14-pin butterfly package that integrates a built-in TEC, optical isolator, and thermistor. It features up to 10mW output power, +/-1nm wavelength tolerance, and low threshold current. It's ideal for C/DWDM systems, fiber optical sensors, and laser source applications.

Product Specifications

Product Features

● Multiquantum well (MQW)distributed-feedback (DFB)laser

● SM fiber or PM fiber pigtail;

● 10mW output power;

● 14-pin BTF package with TEC, optical isolator, thermistor, and monitor PD.

Product Applications

●

 C/DWDM systems;

● Laser sources

● CATV systems;

● Fiber optical sensors.

Product Details

● Channel number and wavelength

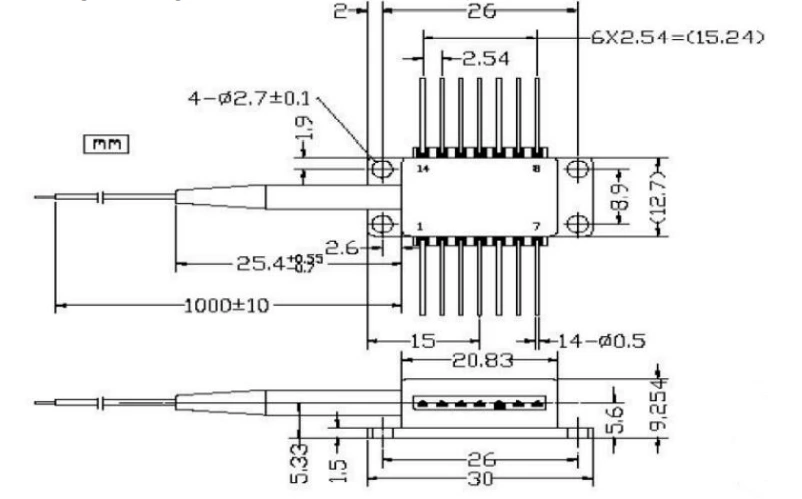

● Package drawing(Unit:mm):

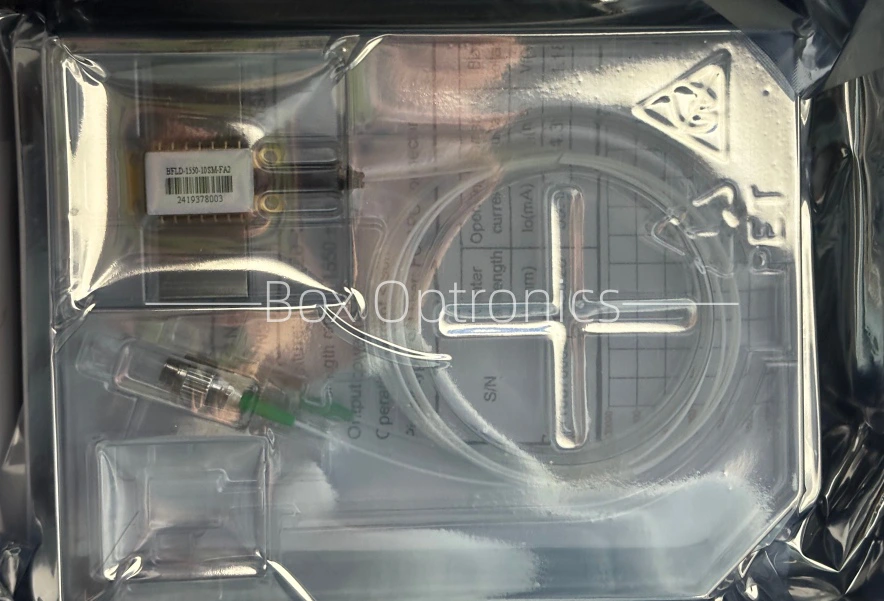

● Packing example

Ordering information

eg: BFLD-LA13-10SM-FA

(Order information: LAN-WDM 10mW Fiber Coupled Laser, 14-pin butterfly package, 1310.50nm, 10mW output power, with SM fiber, FC/APC connector, type1 pin-out).

For other customized requirements, please contact: sales06@boxoptronics.com

Datasheet

Datasheet

Terms of quote and payment

● Terms of quote

(1) EXW:

If you have a DHL/ UPS/ FedEx account, Box Optronics suggest using the EXW. We ship via your account; we don't charge the shipping cost.

(2) DAP:

If you don't have an account, please prepay the shipping cost for the products.

(3)Other

● Terms of payment

PayPal and T/T are available.

Lead time

It takes around 10 working days for production. (If there are some in stock, it will be faster shipped.)

The international logistics might take 3-5 working days.

Operation Notes

● This device is electrostatic-sensitive; therefore, strict adherence to anti-static protection measures is required during packaging, transportation, and usage. Additionally, precautions must be taken to prevent power supply surges, as failure to do so may result in permanent damage to the device (e.g., ensuring proper equipment grounding and wearing an anti-static wrist strap).

● Verify the stability of the product's operating circuit to prevent damage caused by pulse currents.

● Optical fibers are fragile; do not use the fiber to pull the device. When inserting or removing a device from its socket, do not apply pressure to or pull on the sleeve located at the rear of the device housing. For devices equipped with connectors, ensure that both the device and the fiber connector are lifted simultaneously during installation or removal.

● When using the device, strictly adhere to the operating voltage and current ranges specified in the datasheet. Key parameters—including Ith (Threshold Current), Iop max (Maximum Operating Current), Vop max (Maximum Operating Voltage), and λc (Center Wavelength)—should be referenced specifically in the test report provided at the time of shipment.Note:Operation beyond the absolute maximum ratings may cause permanent damage to the device.

Quality Assurance and After-Sales Service

● Warranty Period:

Free repair or replacement for non-human-induced defects within 1 year from purchase. Paid maintenance services available after 1 year.

● Exclusions from Free Warranty:

During the free warranty period, free repair or replacement services will be provided for faults caused by product quality issues. However, Box Optronics retains the right to refuse free repair services in the following cases within the warranty period:

(1) Damage caused by natural factors (e.g., lightning, dust) or environmental influences.

(2) Malfunctions due to improper operation by the user.

(3) Obvious physical damage caused by human error.

(4) Unauthorized disassembly, modification, or repair.

(5) Altered or incomplete warranty labels on the housing.

(6) Damage or loss during transportation.
