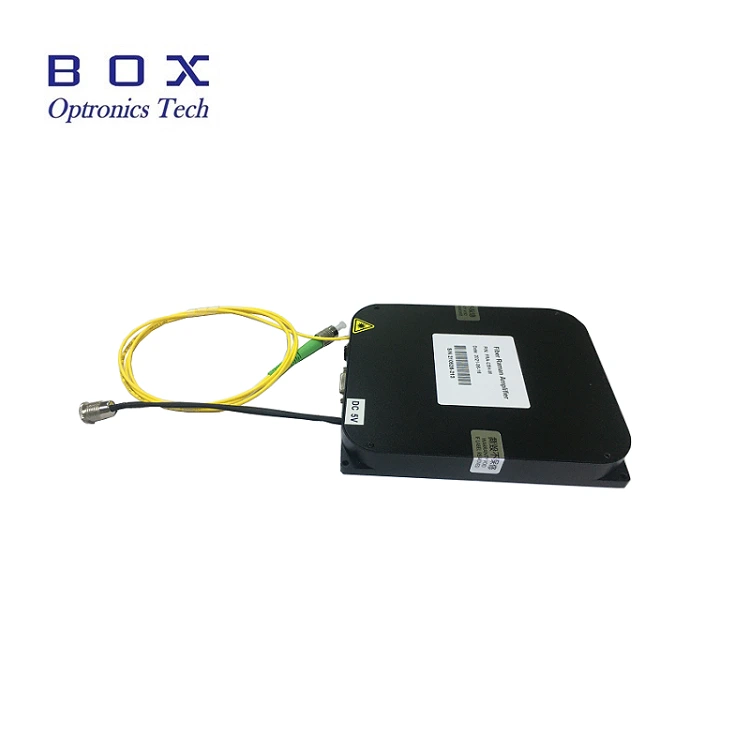

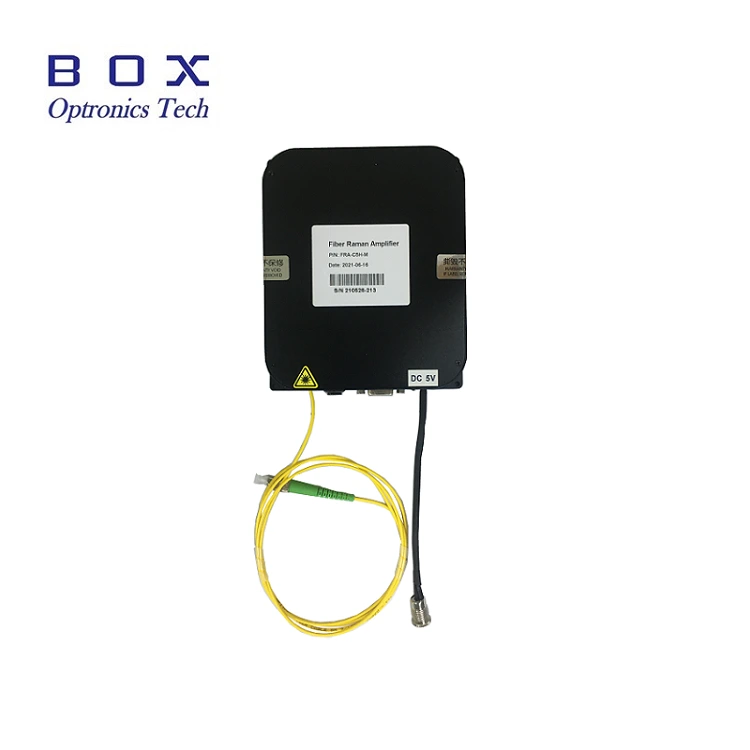

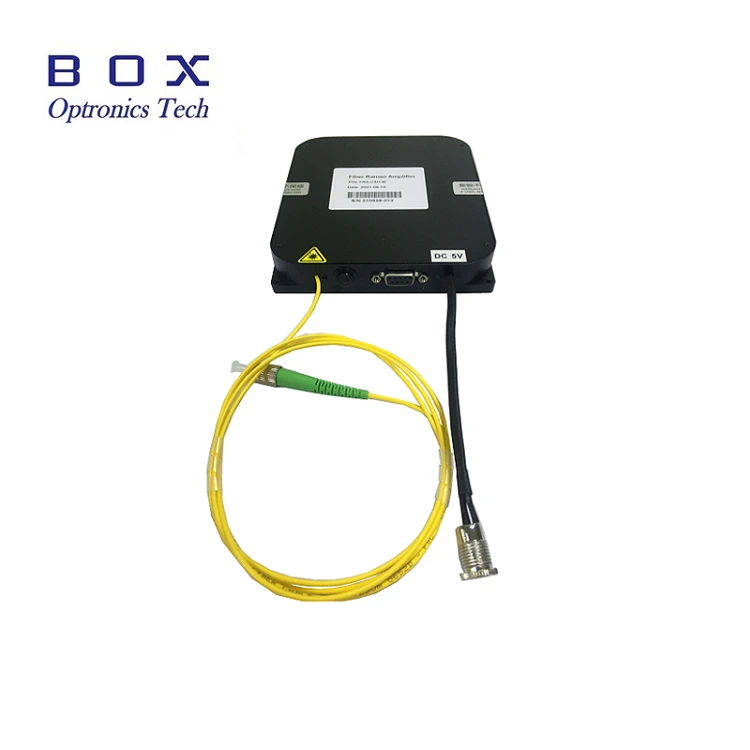

CWDM 1270-1650nm DFB Laser Source

Table of Contents

1. Introduction of the CWDM 1270-1650nm DFB Laser Source with Built-in Drive Circuits

2. Technical Specifications

3. Product Features

4. Typical Applications

5. Product details

6. Safe Operation Guide

7. Ordering Information

8. Datasheet and testsheet

9. Terms of quote and payment

10. Lead time

11. Operation Notes and Maintenance

12. Quality Assurance and After-Sales Service

Product Introduction

This is a CWDM 1270-1650nm DFB Laser Source with Built-in Drive Circuits adopting a DFB semiconductor laser chip, with output power over 10mW, SM/PM fiber, and excellent power & spectral stability. It supports benchtop and modular configurations with a communication interface or a monitoring software for systems integration. Suitable for nonlinear optics research, fiber laser pumping, and optical testing systems. Avoid frequent plugging/ unplugging of fiber connectors to prevent dust accumulation and end-face damage.

Product Specifications

Product Features

● Power and spectral stability;

● Output power adjustable 10~100%;

● Module/benchtop optional, with communication monitoring for easy integration;

● Supports SM/PM fiber customization to fit various optical systems.

Product Applications

● Optical transmission systems;

● Fiber laser pumping;

● Nonlinear optics research.

Product Details

● CWDM wavelength 1270~1650nm, WL tolerance is +/-3nm.

(One wavelength every 20nm is available.)

1270nm 1290nm 1310nm 1330nm 1350nm 1370nm 1390nm 1410nm 1430nm 1450nm 1470nm 1490nm 1510nm 1530nm 1550nm 1570nm 1590nm 1610nm 1630nm 1650nm

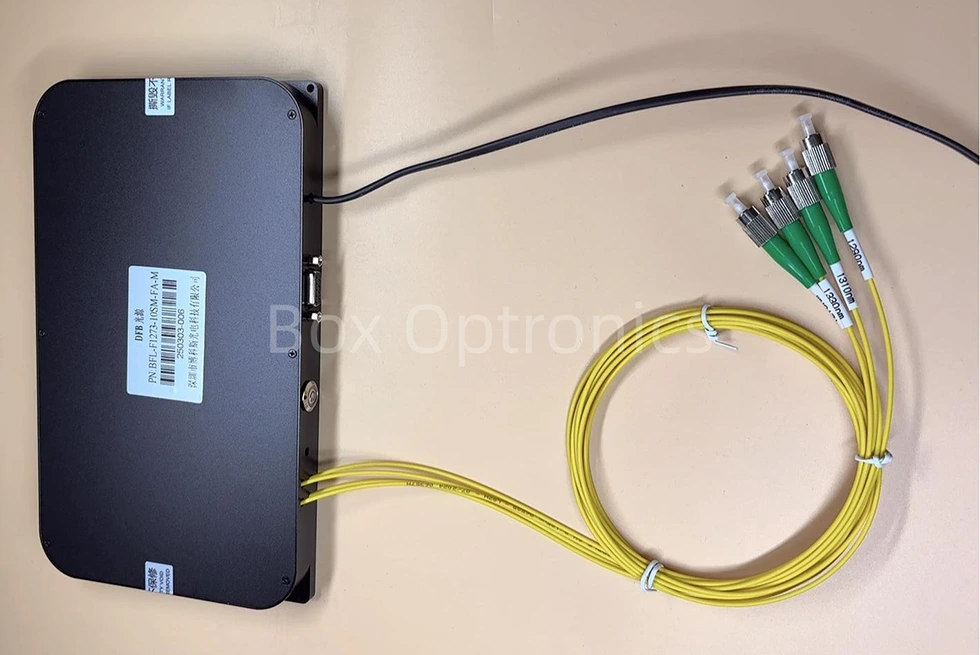

*Support customized multi-channel DFB laser source

● Standard Accessories

Operation Steps

Step1.Unpacking: Before assembly, check whether all accessories are complete, including laser source module, USB data cable, power adapter, test report, etc.

Step2.Power supply: Connected to a DC switching power supply or a regulated power supply that meets their power supply requirements. Use only the original matched power adapter (DC5V or DC12V). Improper power adapters may damage the light source. (Power adapter supplied according to local voltage standards.)

Step3.Connecting output fiber: Open the dust cap at the fiber connector or flange, check the fiber end face, and connect the fiber or splice the fiber to the device or power meter to be tested after confirming that there is no pollution and damage.

Setp4.Connect to the host computer: Use the USB-RS485 DB9 Data Cable to connect the DFB Laser Source and the computer; the computer must first install a dedicated serial port driver to identify the USB-RS485 serial port data cable, otherwise the host computer software and the light source module cannot be correctly connected and communicated. Please ask Box Optronics for the driver.

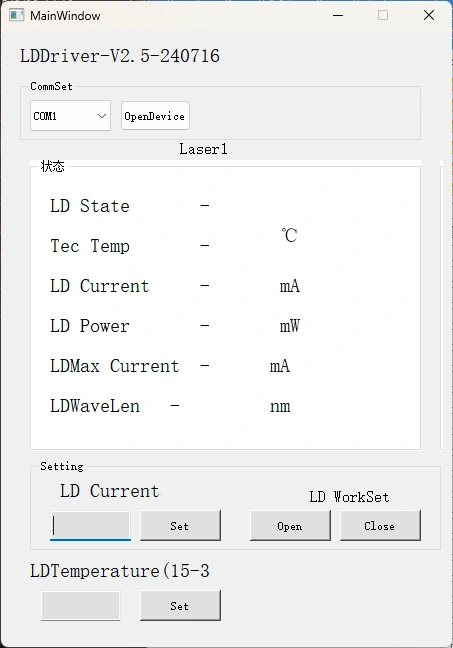

Step5.Control software: Box Optronics provides the serial command or PC software to control the LD current and LD temperature of the DFB Laser Source. Choose the correct port, set the current and temperature, then click the open button. (To prevent damage, ramp up the drive current slowly at initial operation. Do not apply full current immediately.)

Step6.After use, click the close button, turn off the power supply, and disconnect the fiber connection.

Ordering information

eg: BLD-1550-1HSM-FA-M

(Order information: CWDM 1550nm DFB Laser Source with Built-in Drive Circuits, 100mW output power, with SMF-28e fiber, FC/APC connector, module package).

For other customized requirements, please contact: sales06@boxoptronics.com

Datasheet and Testsheet

Datasheet

Testsheet

Terms of quote and payment

● Terms of quote

(1) EXW:

If you have a DHL/ UPS/ FedEx account, Box Optronics suggest using the EXW. We ship via your account; we don't charge the shipping cost.

(2) DAP:

If you don't have an account, please prepay the shipping cost for the products.

(3)Other

● Terms of payment

PayPal and T/T are available.

Lead time

It takes around 10 working days for production. (If there are some in stock, it will be faster shipped.)

The international logistics might take 3-5 working days.

Operation Notes and Maintenance

● Avoid frequent plugging/ unplugging of fiber connectors to prevent dust accumulation and end-face damage.

● Clean fiber connectors with a lint-free wipe and inspect with a fiber end-face detector before connection. Always connect/disconnect fibers without power to avoid end-face burning. Cap unused connectors with dust caps.

● Store the equipment in a dry, moisture-free environment.

● When using the laser source module for a long time, remember to consider the heat dissipation and ventilation of the module and place the module on the heat sink.

Quality Assurance and After-Sales Service

● Warranty Period:

Free repair or replacement for non-human-induced defects within 1 year from purchase. Paid maintenance services available after 1 year.

● Exclusions from Free Warranty:

During the free warranty period, free repair or replacement services will be provided for faults caused by product quality issues. However, Box Optronics retains the right to refuse free repair services in the following cases within the warranty period:

(1) Damage caused by natural factors (e.g., lightning, dust) or environmental influences.

(2) Malfunctions due to improper operation by the user.

(3) Obvious physical damage caused by human error.

(4) Unauthorized disassembly, modification, or repair.

(5) Altered or incomplete warranty labels on the housing.

(6) Damage or loss during transportation.
