Product Introduction

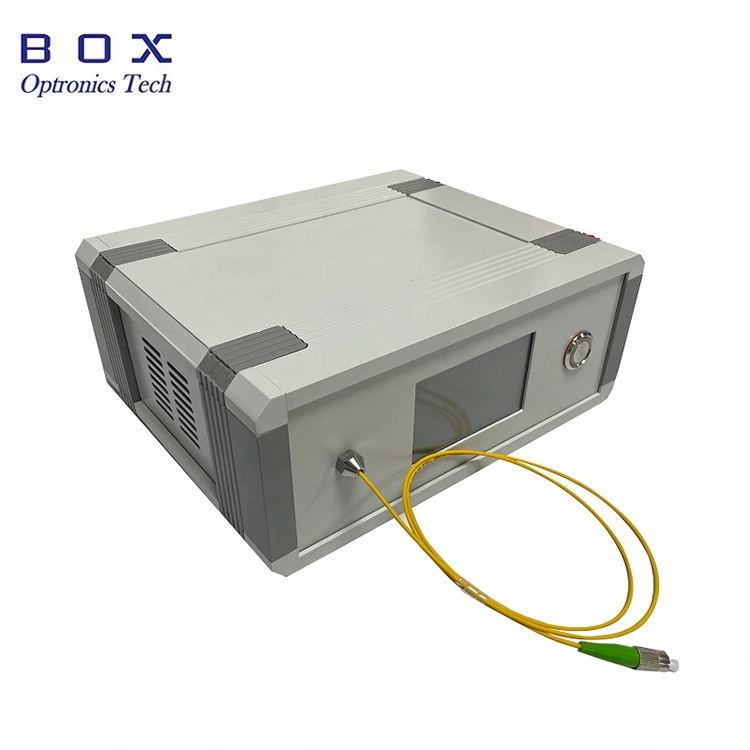

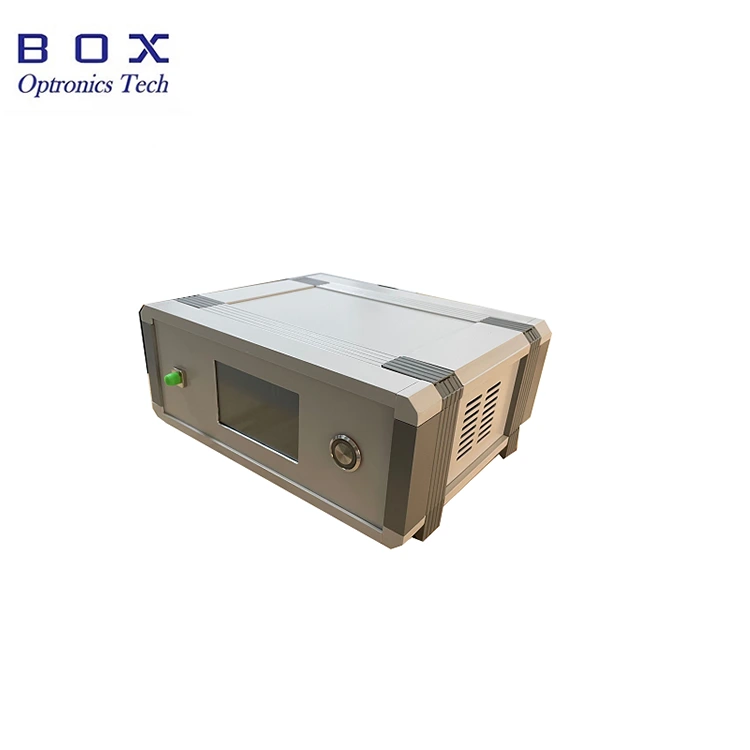

Box Optronics' 974nm 976nm Pump Laser Source Benchtop Package with Touched Screen adopts an advanced semiconductor laser chip and a special integrated circuit to realize high power, high stability, and low power consumption. The laser source, with output power of 200mW/ 400mW/ 600mW optional, is output through a single-mode fiber or polarization-maintaining fiber coupling. It can be widely used in the testing and experimentation of optical communication, fiber laser, fiber sensing, and other fields. The method of use is simple, stable, and reliable.

Product Specifications

Product Features

● LCD status display.

● Power and spectral stability;

● Built-in driver; emits light upon power-up.

Product Applications

● Nonlinear optics research;

● EDFA Erbium-doped fiber amplifier;

● Fiber laser pumping.

Product Details

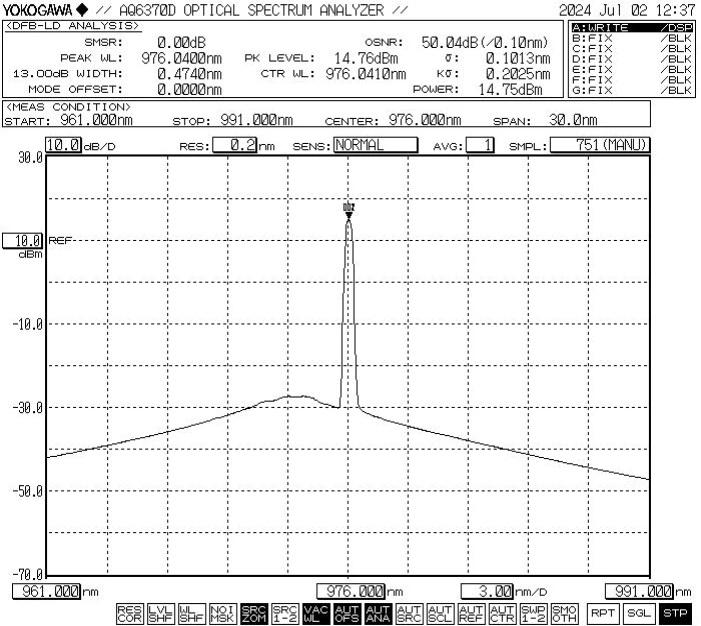

● Typical spectrum: 976nm, WL tolerance +/-1nm.

● Standard Accessories

Operation Steps

Step1.Opening and assembling:

Please check whether the accessories are complete before assembly.

Step2.Connect the power supply:

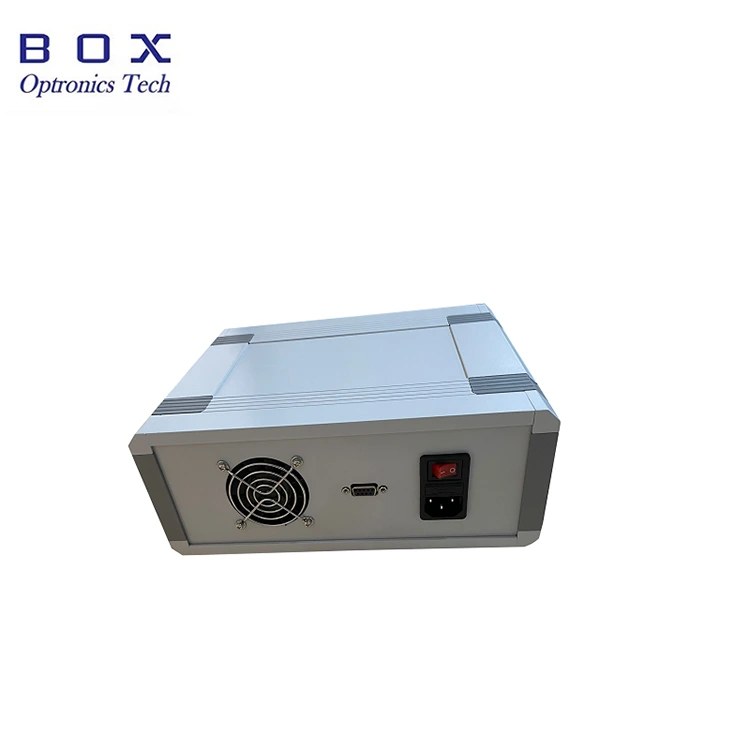

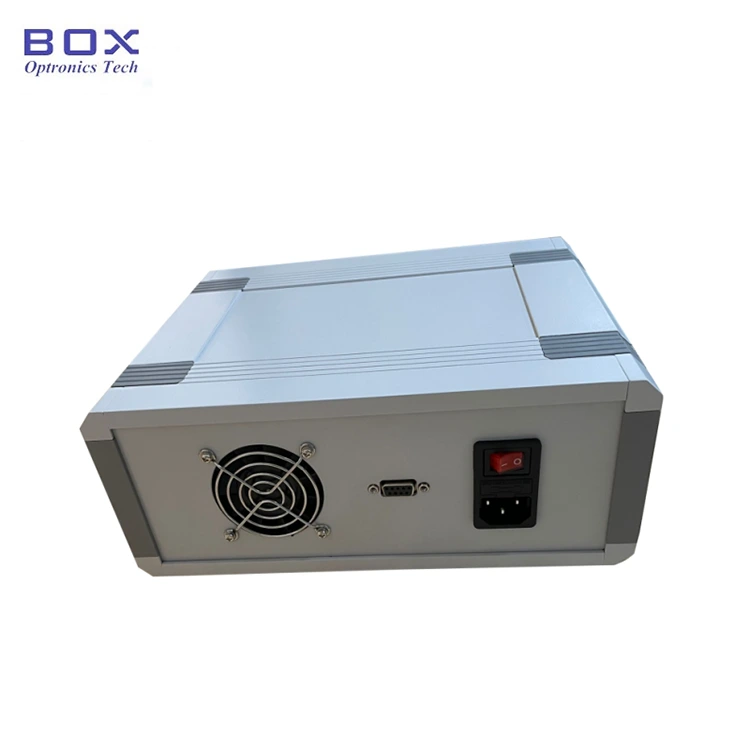

Insert the power cord into the power cord socket of the chassis backplane and connect the power supply.

Step3.Connecting output fiber: Open the dust cap at the fiber connector or flange, check the fiber end face, and connect the fiber or splice the fiber to the device or power meter to be tested after confirming that there is no pollution and damage.

Setp4.Turn on the light source:

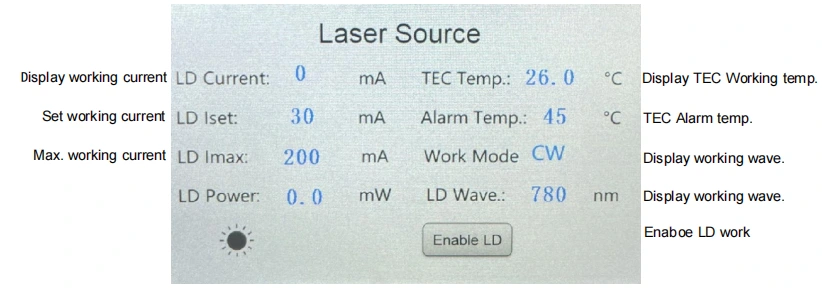

Turn on the power switch on the back. Note: at this time, the working current and power values are the parameters set during the last shutdown. If you need to adjust them, you can touch and modify them through the LCD screen. After setting the appropriate working current, activate the laser output through the “Enable LD” switch.

Step5.Shutdown

After use, turn off the front panel “enable LD” to turn off the laser output and turn off the power switch, Disconnect the power cord.

Ordering information

eg: BLD-976-6HSM-FA-BP1

(Order information: 976nm Pump Laser Source Benchtop Package with Touched Screen, 600mW output power, with SM Hi1060 fiber, FC/APC connector, protection against 1064 nm reflected light, Benchtop package).

*Equipped with a pump protector, output power attenuation is 10–15%.

For other customized requirements, please contact: sales06@boxoptronics.com

Datasheet and Testsheet

Datasheet

Testsheet

Terms of quote and payment

● Terms of quote

(1) EXW:

If you have a DHL/ UPS/ FedEx account, Box Optronics suggest using the EXW. We ship via your account; we don't charge the shipping cost.

(2) DAP:

If you don't have an account, please prepay the shipping cost for the products.

● Terms of payment

PayPal and T/T are available.

Lead time

It takes around 10 working days for production. (If there are some in stock, it will be faster shipped.)

The international logistics might take 3-5 working days.

Operation Notes and Maintenance

● When starting, first confirm that the power switch and button switch are off, and then connect the power supply. When shutting down, first confirm the disable LD off switch, then turn off the button switch, and then disconnect the power supply. Do not cut off the power supply directly when the equipment is working.

● Before connecting the optical fiber connector, wipe it with dust-free mirror paper, and be sure to cooperate with the optical fiber end face detector to observe. After confirming the cleaning, connect it through the flange; the end face of the optical fiber connector may be burned when the laser is connected. When connecting the flange, it must be ensured that there is no light operation. When not in use, please cover the dust cap of the optical fiber connector.

● To avoid burning the end face of the optical fiber connector with dust, don't frequently plug and unplug the optical fiber connector on the front panel.

● Please pay attention to moisture resistance and put it in a dry place.

Quality Assurance and After-Sales Service

● Warranty Period:

Free repair or replacement for non-human-induced defects within 1 year from purchase. Paid maintenance services available after 1 year.

● Exclusions from Free Warranty:

During the free warranty period, free repair or replacement services will be provided for faults caused by product quality issues. However, Box Optronics retains the right to refuse free repair services in the following cases within the warranty period:

(1) The product is damaged or damaged due to natural factors or environmental effects (electric shock, dust);

(2) The product is damaged due to the user's non-standard operation;

(3) The product has obvious man-made damage;

(4) The product is disassembled, modified or repaired without authorization of the company;

(5) The warranty label sticker of the light source housing is altered or incomplete;

(6) The product is damaged or lost during transportation.
