SLD Broadband Light Source 1310nm

Table of Contents

1. Introduction of the SLD Broadband Light Source 1310nm

2. Product Specifications

3. Product Features

4. Typical Applications

5. Product Details

6. Ordering Information

7. Datasheet and testsheet

8. Terms of quote and payment

9. Operation Guide

10. Operation Notes and Maintenance

11. Quality Assurance and After-Sales Service

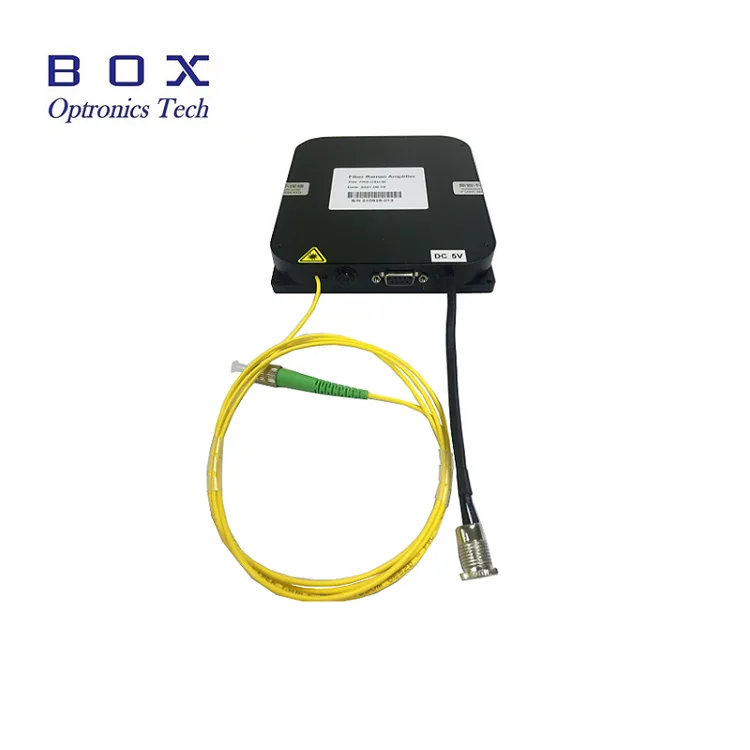

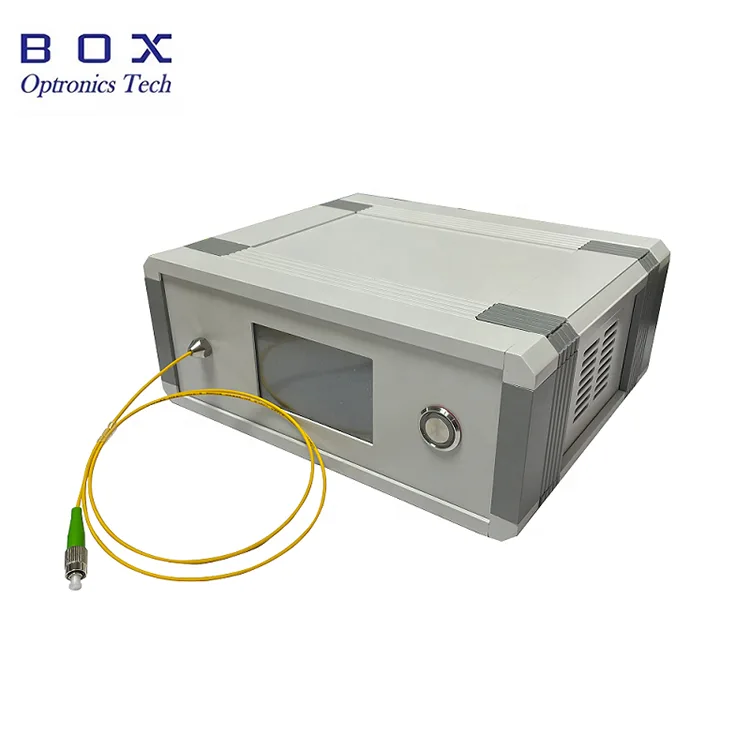

Product Introduction-SLD Broadband Light Source 1310nm

The 1310 nm SLD Broadband Light Source delivers stable, low-coherence broadband emission with a spectral width of typically >30 nm and output power available at 1/3/10/15mW. Its SMF-28e or PM Fiber coupling, low spectral ripple, and compact package make it ideal for fiber optic sensing, OCT imaging, and precision optical measurements. This SLD broadband light source is optimized for optical communication, biomedical imaging, and optical fiber device test applications.

Product Specifications-SLD Broadband Light Source 1310nm

Product Features-SLD Broadband Light Source 1310nm

● 1/3/10/15mW Multiple power levels available to suit different needs;l

● Wide spectrum;

● Low spectral ripple;

● Customized package and size.

Product Applications-SLD Broadband Light Source 1310nm

● Fiber Optic Sensing;

● Medical imaging;

● Precision measurement;

● Optical fiber device test.

Product Details-SLD Broadband Light Source 1310nm

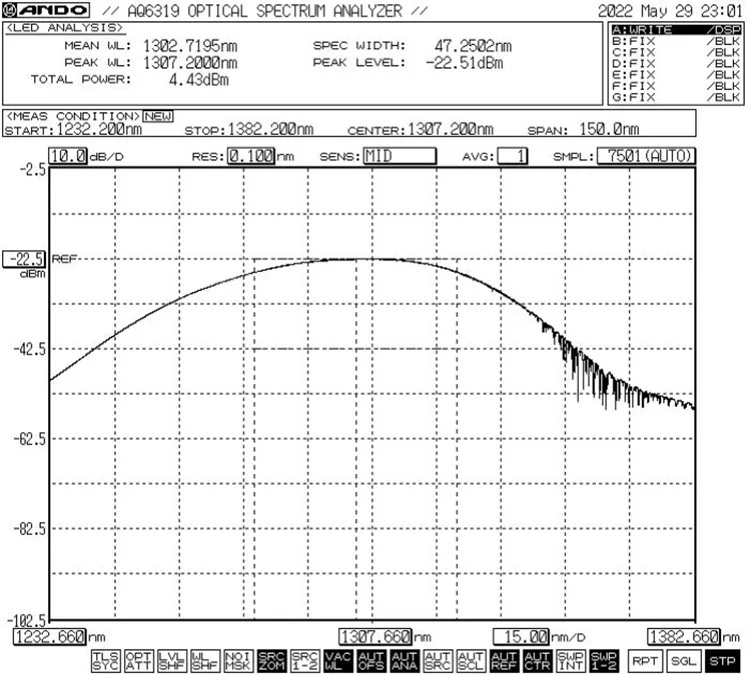

● Spectral Reference: -3dB Bandwidth Min.30nm

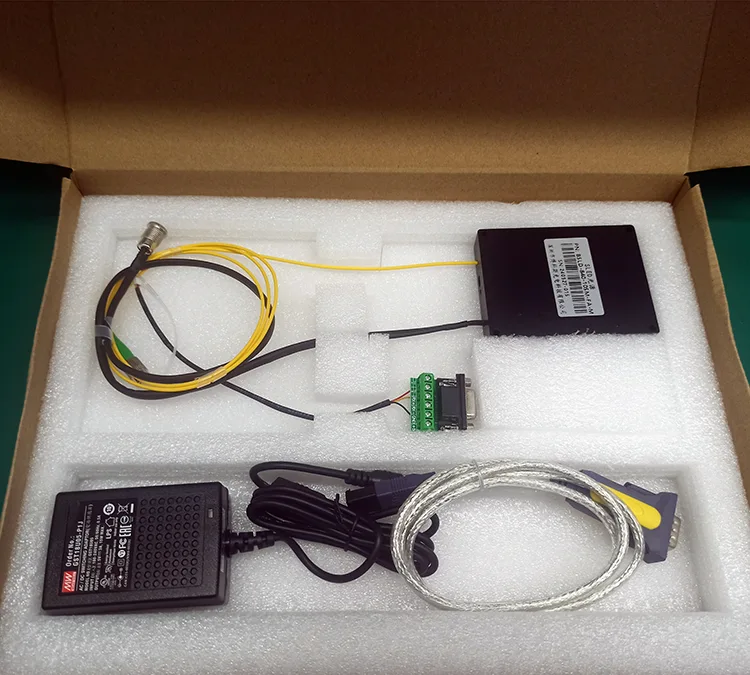

● Standard Accessories

Ordering information-SLD Broadband Light Source 1310nm

eg: BSLD-1310-10SM-FA-M

(Order information: SLD Broadband Light Source 1310nm, 10mW output power, SM fiber, with FC/APC connector, module package).

Datasheet and Testsheet-SLD Broadband Light Source 1310nm

Datasheet

Testsheet

Terms of quote and payment-SLD Broadband Light Source 1310nm

● Terms of quote

(1) EXW

(2) DAP

(3) Other

● Terms of payment

PayPal and T/T are available.

Operation Steps-SLD Broadband Light Source 1310nm

Step1. Unpacking: Before assembly, check whether all accessories are complete.

Step2. Power supply: Connected to a DC switching power supply or a regulated power supply that meets their power supply requirements. Use only the original matched power adapter (DC5V or DC12V). Improper power adapters may damage the light source. (Power adapter supplied according to local voltage standards.)

Step3. Connecting output fiber: Open the dust cap at the fiber connector or flange, check the fiber end face, and connect the fiber or splice the fiber to the device or power meter to be tested after confirming that there is no pollution and damage.

Setp4. Connect to the host computer: Use the Green Port Cable and the USB-RS485 DB9 Data Cable to connect the SLD Broadband Light Source 1310nm and the computer; the computer must first install a dedicated serial port driver to identify the USB-RS485 serial port data cable, otherwise the host computer software and the light source module cannot be correctly connected and communicated. Please ask Box Optronics for the driver.

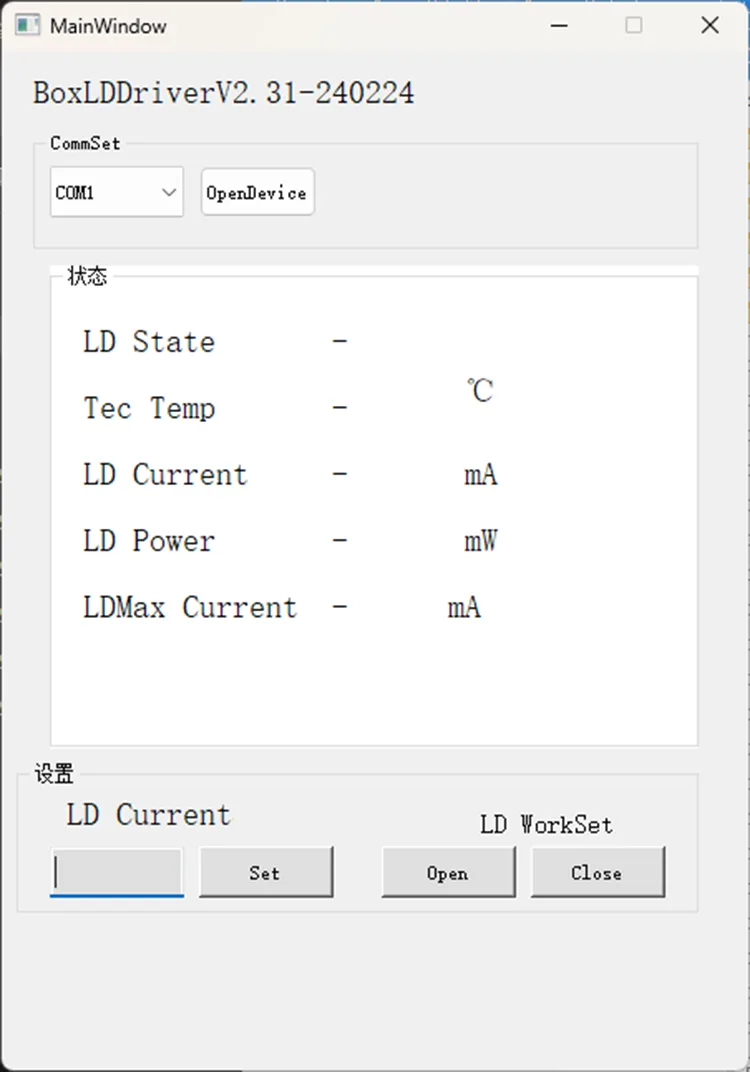

Step5. Control software: Box Optronics provides the serial command or PC software to control the LD current of the SLD Broadband Light Source 1310nm. Choose the correct port, set the current, then click the open button. (To prevent damage, ramp up the drive current slowly at initial operation. Do not apply full current immediately.)

Step6. After use, click the close button, turn off the power supply, and disconnect the fiber connection.

Operation Notes and Maintenance-SLD Broadband Light Source 1310nm

● Clean fiber connectors with a lint-free wipe and inspect with a fiber end-face detector before connection. Always connect/disconnect fibers without power to avoid end-face burning. The fiber optic connectors must be covered with dust caps.

● Avoid frequent plugging/ unplugging of fiber connectors to prevent dust accumulation and end-face damage.

● Please take precautions against moisture, dust, and corrosion; store in a dry place.

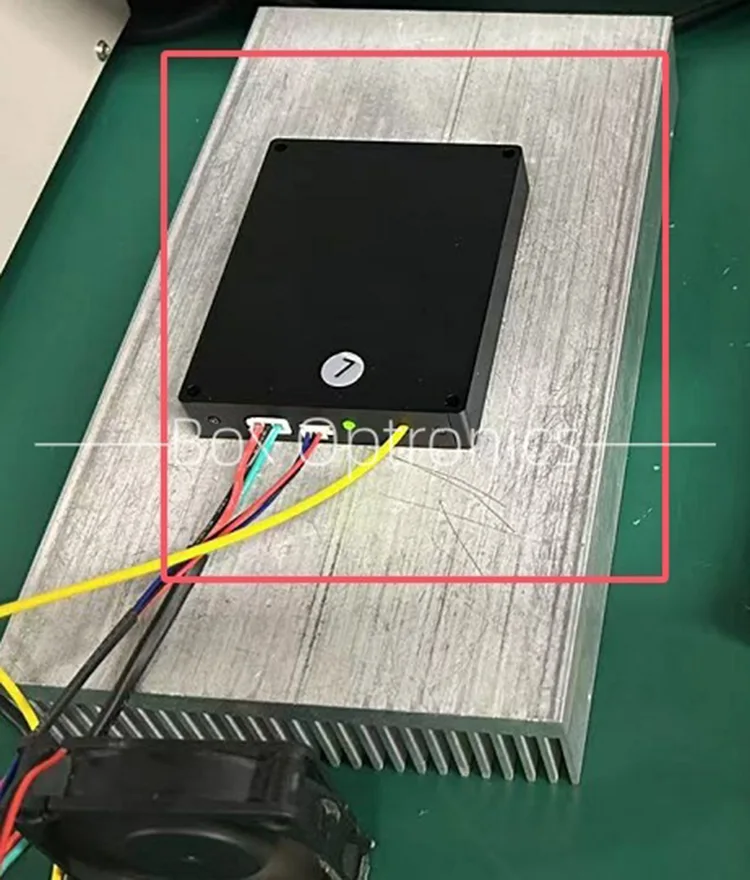

● When using long-term, place it on a heat sink.

Quality Assurance and After-Sales Service-SLD Broadband Light Source 1310nm

● Warranty Period:

Free repair or replacement for non-human-induced defects within 1 year from purchase. Paid maintenance services available after 1 year.

● Exclusions from Free Warranty:

During the free warranty period, free repair or replacement services will be provided for faults caused by product quality issues. However, Box Optronics retains the right to refuse free repair services in the following cases within the warranty period:

(1) Damage caused by natural factors (e.g., lightning, dust) or environmental influences.

(2) Malfunctions due to improper operation by the user.

(3) Obvious physical damage caused by human error.

(4) Unauthorized disassembly, modification, or repair.

(5) Altered or incomplete warranty labels on the housing.

(6) Damage or loss during transportation.
