Product Overview-Optical Power Meter

Box Optronics' Optical Power Meter is a high-performance optoelectronic measurement instrument engineered for precise optical power detection and analysis. Built around high-quality silicon (Si) and indium gallium arsenide (InGaAs) photodiode detectors, our power meters deliver accurate, reliable measurements across ultraviolet, visible, near-infrared, and mid-infrared spectral ranges.

The series includes both benchtop multi-channel models (PM-MC-4-B5) for laboratory and production testing, and compact handheld single-channel models (PM-SC-1-HD) for field testing and on-site calibration. All units feature intuitive touch-screen interfaces, real-time statistical analysis (current, min, max, average, peak-to-peak, standard deviation), and USB connectivity for PC-based data acquisition and analysis. With interchangeable detector heads supporting different wavelength bands and power ranges, optional integrating sphere designs for uniform beam collection, and flexible fiber coupling accessories (bare fiber adapter and FC fiber adapter), our optical power meters can be configured to meet the specific requirements.

Key Features-Optical Power Meter

● High measurement resolution: 0.001dB for precise power readings

● Wide power range: 1nW~10mW or 10uW~10W

● Broad wavelength coverage: 400~1100nm (Si), 900~1650nm (InGaAs), 1100~2200nm (InGaAs)

● Multiple form factors: Benchtop (4-channel) and Handheld (1-channel) configurations available

● Built-in power statistical analysis: current value, minimum, maximum, average, peak-to-peak, standard deviation

● Configurable data sampling interval: 0.1s to 1s

● Intuitive touch-screen user interface with real-time display

● USB connectivity with host software for data logging and graphical analysis

● Analog voltage output (0~2.5V) via BNC/SMA

● Compatible with bare fiber adapter (BFA) and FC fiber adapter (FCA) accessories

● Compact, rugged design suitable for both laboratory and industrial environments

● Measurement uncertainty: ±5%

Typical Applications-Optical Power Meter

● Optical component testing and characterization (laser diodes, fibers, amplifiers, isolators)

● Laser power output verification and stability monitoring

● Fiber optic system alignment and loss measurement

● Research and development laboratories in photonics and optoelectronics

● Industrial laser production line quality control and testing

● Optical sensor calibration and validation

● Telecommunications component testing (CWDM, DWDM, transceivers)

● Educational and university optical laboratories

● Field service and on-site equipment calibration

Technical Specifications-Optical Power Meter

Detector Specifications (T=25°C)

Host Unit Specifications

Accessory Specifications

Product Details-Optical Power Meter

What is an Optical Power Meter?

An optical power meter is a precision optoelectronic instrument designed to measure the power of optical signals, typically from lasers, light-emitting diodes (LEDs), or fiber-optic transmission systems.

It consists of two primary components: a calibratedphotodiode sensor head that converts incoming optical power into an electrical current, and a display/processing unit that amplifies, digitizes, and displays the measured power value in units such as watts (W), milliwatts (mW), or decibels relative to 1mW (dBm).

Optical power meters are fundamental tools in photonics research, fiber optic communications, laser manufacturing, and quality control. They are used for laser output characterization, fiber insertion loss measurement, optical amplifier output power and gain measurement, and system-level power budget verification.

The choice of detector material (silicon for visible/NIR, InGaAs for NIR/SWIR) determines the wavelength range and sensitivity of the instrument.

Product Series Overview

Box Optronics offers a modular optical power meter platform with interchangeable detector heads and two host unit options, allowing customers to configure a system optimized for their specific measurement requirements:

Detector Heads

• PMS-4011-2040:Silicon photodiode detector with integrating sphere, covering 400~1100nm with a power range of -20~+40dBm (10μW~10W). Ideal for visible and near-infrared laser power measurements.

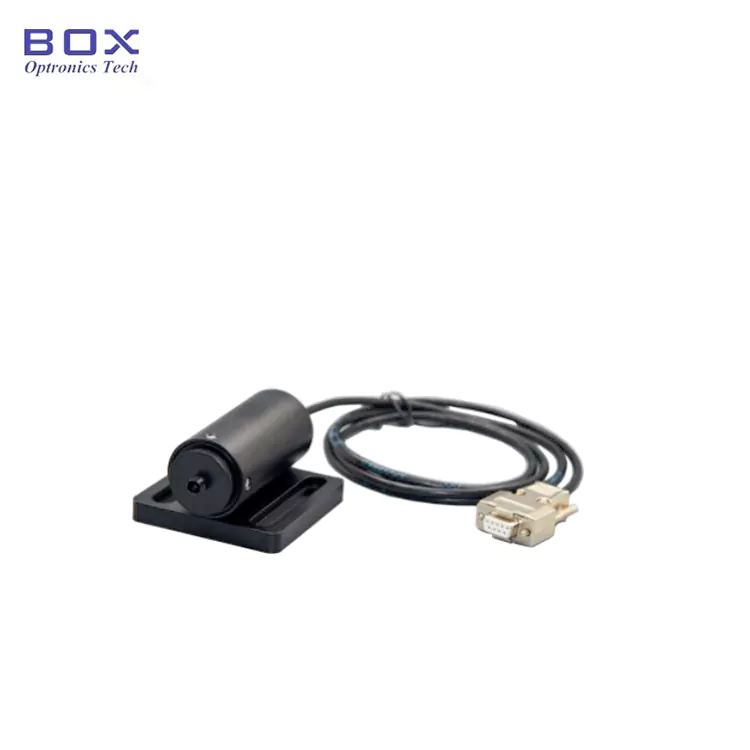

• PMS-9016-6010:InGaAs photodiode detector (no integrating sphere), covering 900~1650nm with an extended low-power range of -60~+10dBm (1nW~10mW). Optimized for high-sensitivity telecom-band measurements.

• PMS-9016-2043:InGaAs photodiode detector with integrating sphere, covering 900~1650nm with a wide power range of -20~+43dBm (10μW~20W). Suitable for general-purpose telecom and datacom testing.

• PMS-1122-2040:Extended-wavelength InGaAs photodiode detector with integrating sphere, covering 1100~2200nm with a power range of -20~+40dBm (10μW~10W). Designed for short-wave infrared (SWIR) applications.

Host Units

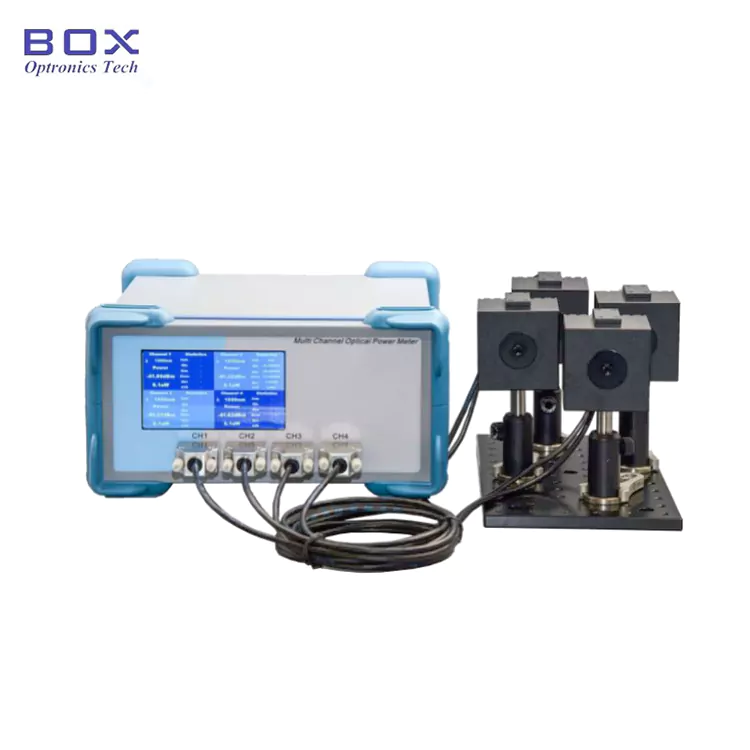

• PM-MC-4-B5 (Benchtop Multi-Channel):Four-channel benchtop unit with large touch-screen display, supporting simultaneous measurement of up to four detector channels. Ideal for laboratory setups, production testing stations, and applications requiring multi-point monitoring.

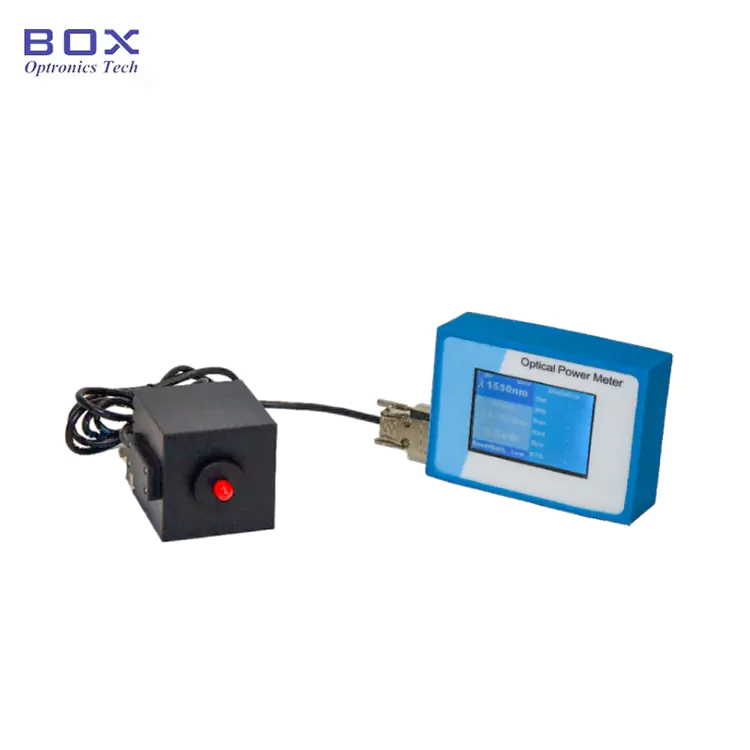

• PM-SC-1-HD (Handheld Single-Channel):Compact single-channel handheld unit with touch-screen interface, designed for portability and field use. Perfect for on-site calibration, field service, and mobile testing applications.

Ordering Information-Optical Power Meter

Model Nomenclature

Host Unit Naming Convention

PM - XX - X - XX

Example: PM-MC-4-B5

Detector Naming Convention

PMS - XXXX - XXXX - XX

Example: PMS-9016-2040-FC

Datasheet and Software-Optical Power Meter

Datasheet

· Remote control via USB interface.PC software download link included with purchase.

Terms of Quote and Payment

Quote Terms

· EXW

· DAP

· FOB

· Other terms: Please contact us to discuss.

Payment Terms

· PayPal: Fast and secure payment for samples and small orders

· T/T (Bank Transfer): Standard payment method for normal production orders

· Alibaba Trade Assurance: Secure order protection for online transactions with buyer guarantee

· Credit Card: Available via PayPal and Alibaba platforms

· Flexible Payment Terms: Negotiable

Lead Time

· Standard units (in-stock models): 3~5 working days

· Standard production: 10~15 working days

· Volume orders: Please contact for production schedule

· International shipping:~5 working days (DHL/UPS/FedEx express)

· Expedited service: Available upon request

Operation Notes and Handling-Optical Power Meter

Safety Precautions

· Never look directly into an active laser beam or optical output port

· Always follow appropriate laser safety protocols and wear appropriate laser safety eyewear

· Do not exceed the maximum rated power for the detector model in use

· Disconnect power before cleaning or servicing the unit

· Use only the specified power supply to avoid damage to the instrument

Detector Care and Maintenance

· Keep the detector aperture clean and free of dust, oil, and debris

· Use clean, lint-free wipes andanappropriate optical cleaning solution when cleaning the detector surface

· Always replace protective caps on the detector when not in use

· Avoid touching the active detector surface with fingers or tools

· Clean fiber connectors before insertion using proper cleaning tools

· Avoid dropping or subjecting the detector to mechanical shock

· Store in a clean, dry environment when not in use

· Periodic recalibration recommended annually

Quality Assurance

Box Optronics is committed to providing high-quality optical test and measurement instruments with reliable, consistent performance. All our optical power meters undergo rigorous testing, calibration, and quality control procedures before shipment.

Warranty

· 12-month limited warranty fromthedate ofdelivery

· Warranty covers defects in materials and workmanship

· Free repair or replacement for defective units under warranty

· Warranty does not cover damage from misuse, mishandling, unauthorized modification, or normal wear of consumable parts
