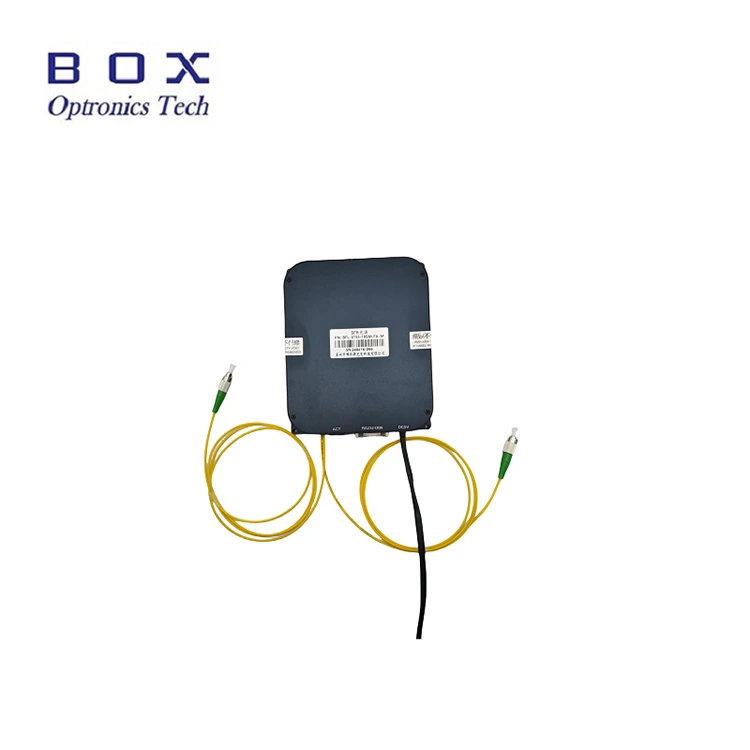

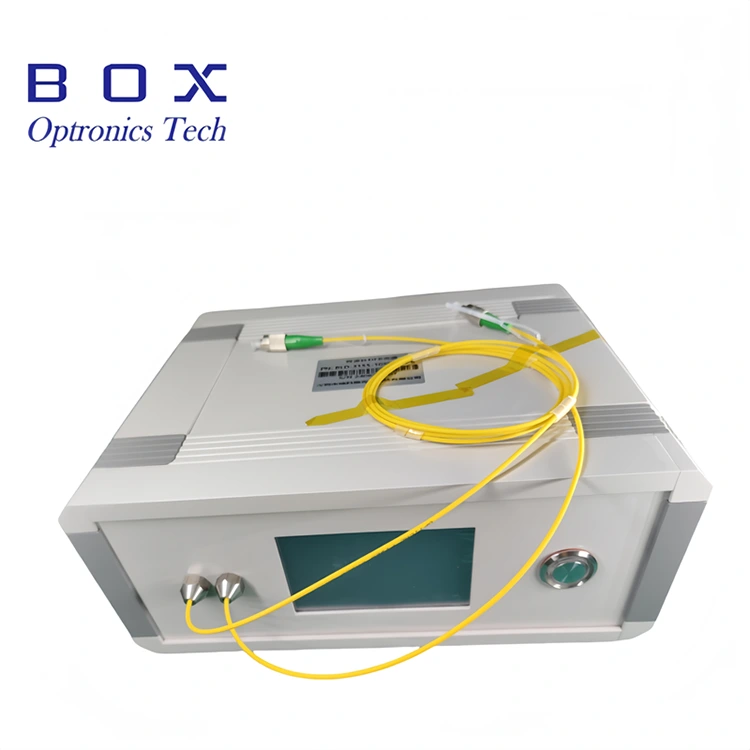

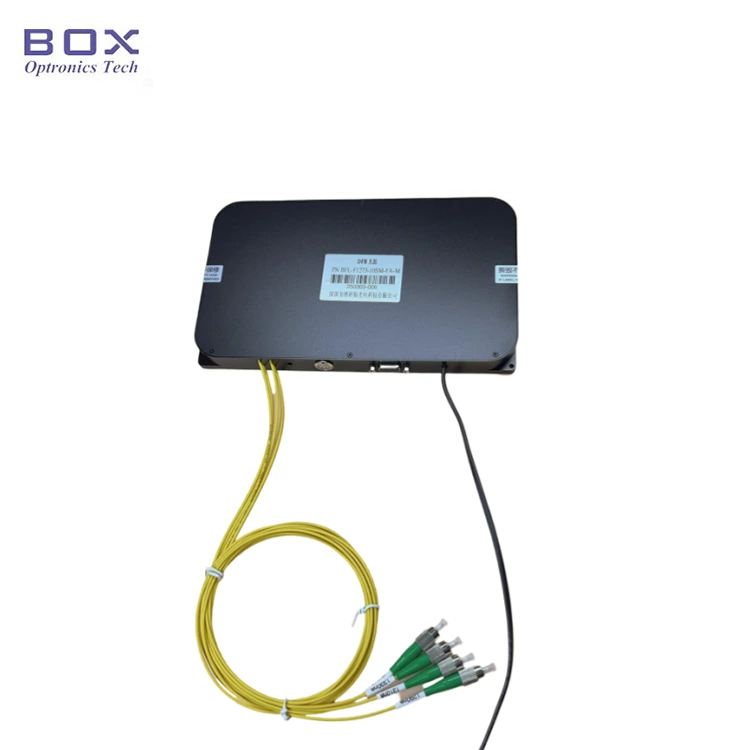

This is a Multi-channel DFB Laser Source featuring freely configurable wavelengths and continuous-wave (CW) operation. Available wavelength options include CWDM (1270~1650 nm), DWDM ITU channels 18~64, LAN-WDM wavelengths, as well as specific wavelengths such as 1030 nm and 1064 nm. The product is available in two configurations: a standalone desktop unit or an integrable modular option; equipped with communication interfaces and monitoring software. Users may choose between a fixed output power or a power-adjustable configuration. This Multi-channel DFB Laser Source supports operation as a single-channel light source or simultaneous output across multiple channels.
|
Parameter |
Unit |
Dual Channels |
Four channels |
Note |
|
Work Wavelength |
nm |
1310/1550 |
1270/1290/1310/1330 |
customizable |
|
Optional Wavelength |
nm |
1030 1064 1270 1290 1310 1330 1350 1370 1390 1410 1450 1470 1490 1510 1530 1550 1570 1590 1610 1625 nm 1650nm 1683nm |
DFB type |
|
|
Output Power |
mW |
10/20/Other |
customizable |
|
|
Side Mode Suppression Ratio |
dB |
>30 |
|
|
|
Working Mode |
- |
CW |
|
|
|
Power adjustment range |
- |
10~100% |
|
|
|
Short term stability (15 minutes) |
dB |
≤±0.02 Equivalent ≤±0.5% |
|
|
|
Long term stability (8 hours) |
dB |
≤±0.05 Equivalent ≤±1 .2% |
|
|
|
Connector |
- |
FC/APC |
customizable |
|
|
Fiber type |
- |
Hi1060/SMF-28/PM1550 |
customizable |
|
|
Package |
mm |
195(W)×220(D)×120(H) |
Benchtop |
|
|
150(W)×125 (D)×20 (H) |
Module |
|||
|
Power Supply |
V |
AC 110~240V, <20W |
Benchtop |
|
|
DC 5V/4A, <15W |
Module |
|||
|
Power consumption |
W |
≤60 |
|
|
|
Operating temperature range |
℃ |
-5 ~+55 |
|
|
|
Storage temperature range |
℃ |
-40 ~+85 |
|
|
● Customizable wavelengths and output powers;
● 2~16 channels available;
● Fixed or adjustable output power;
● High output stability, small size, and fast startup.
● WDM,AWG,PLC device differential loss,return loss detection;
● Ophthalmic OCT;
● Fiber device calibration and passive component testing systems.
● Available wavelengths (nm):
|
1030 |
1064 |
1270 |
1290 |
1310 |
1330 |
|
1350 |
1370 |
1390 |
1410 |
1450 |
1470 |
|
1490 |
1510 |
1530 |
1550 |
1570 |
1590 |
|
1610 |
1625 |
1650 |
1683 |
|
|

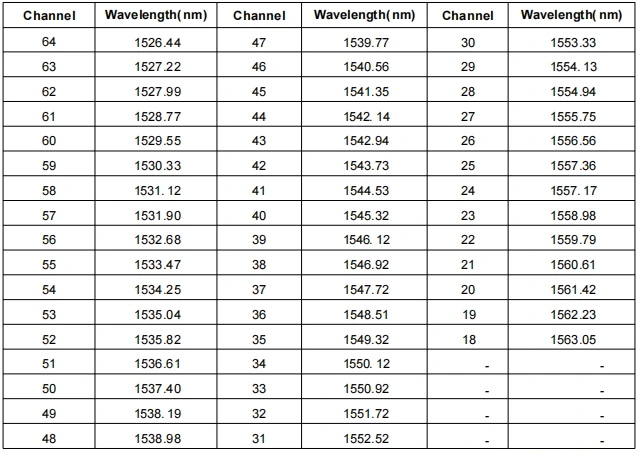

● ITU channel 18~64 wavelengths (mm):

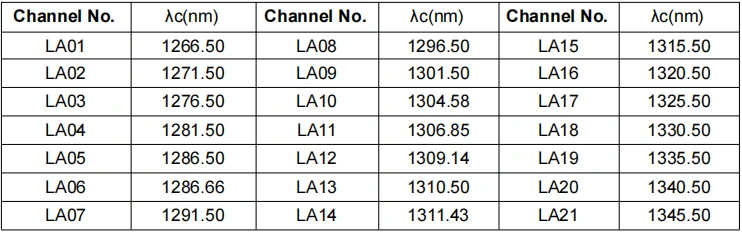

● LAN-WDM wavelengths (mm):
Step1. Unpacking: Before assembly, check whether all accessories are complete.
Step2. Power supply: Connected to a DC switching power supply or a regulated power supply that meets their power supply requirements. Use only the original matched power adapter (DC5V or DC12V). Improper power adapters may damage the light source. (Power adapter supplied according to local voltage standards.)
Step3. Connecting output fiber: Open the dust cap at the fiber connector or flange, check the fiber end face, and connect the fiber or splice the fiber to the device or power meter to be tested after confirming that there is no pollution and damage.
Setp4. Connect to the host computer: Use the USB-RS485 DB9 Data Cable to connect theMulti-channel DFB Laser Source and the computer; the computer must first install a dedicated serial port driver to identify the serial port data cable, otherwise the host computer software and the light source module cannot be correctly connected and communicated. Please ask Box Optronics for the driver.

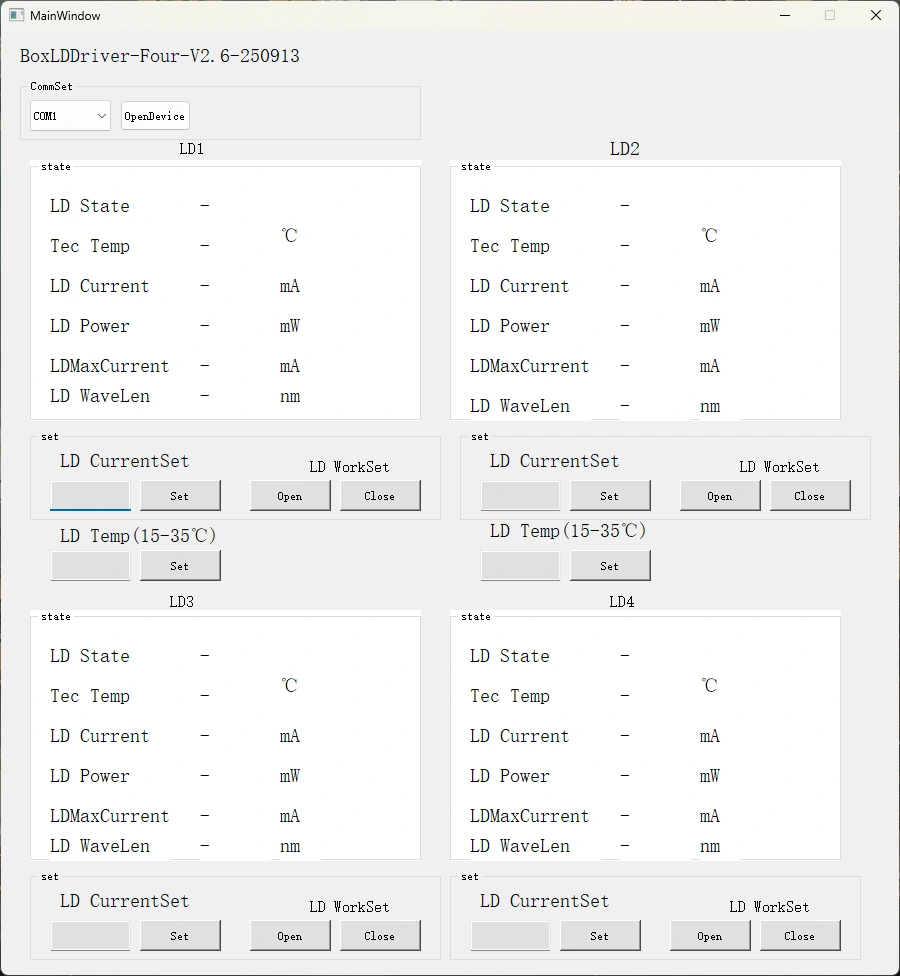

Step5. Control software: Box Optronics provides the serial command or PC software to control the LD current and LD temperature of the Multi-channel DFB Laser Source. Choose the correct port, set the current and temperature, then click the open button. (To prevent damage, ramp up the drive current slowly at initial operation. Do not apply full current immediately.)
