760nm DFB TO CAN Laser

Table of Contents

1. Introduction of the 760nm DFB TO CAN Laser

2. Product specifications

3. Product Features

4. Applications

5. Package Drawing&PIN-OUT Definition(Unit:mm)

6. Ordering Information

7. Datasheet

8. Terms of quote and payment

9. Lead time

10. Quality Assurance and After-Sales Service

Product Introduction-760nm DFB TO CAN Laser

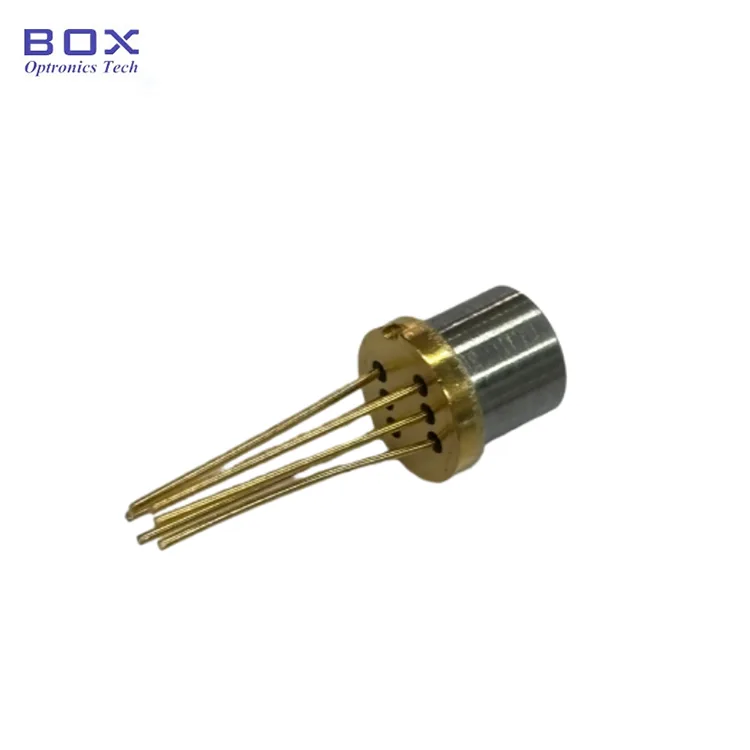

760nm DFB TO CAN Laser from Box Optronics is a high-performance laser source designed for oxygen (O2) gas sensing and TDLAS applications. The laser features a center wavelength of 760 nm+/-1 nm, output power up to 60 mW, a low threshold current of 10~30 mA, and a side-mode suppression ratio (SMSR)≥35 dB for stable operation. Integrated TEC and thermistor enable precise temperature control and excellent wavelength stability. The 760nm DFB TO CAN Laser is available in aspheric lens or flat window TO-CAN packages, suitable for OEM integration in gas analyzers, environmental monitoring instruments, and spectroscopy systems.

Product Specifications-760nm DFB TO CAN Laser

Product Features-760nm DFB TO CAN Laser

● Distributed-feedback (DFB) laser;

● High wavelength accurancy;

● Integrated with TEC temperature stabilization;

● TO60 package, aspheric lens or flat window optional.

Product Applications-760nm DFB TO CAN Laser

● Oxygen gas sensing;

● TDLAS spectroscopy;

● Industrial gas analysis;

● Laboratory instrumentation;

● Environmental monitoring.

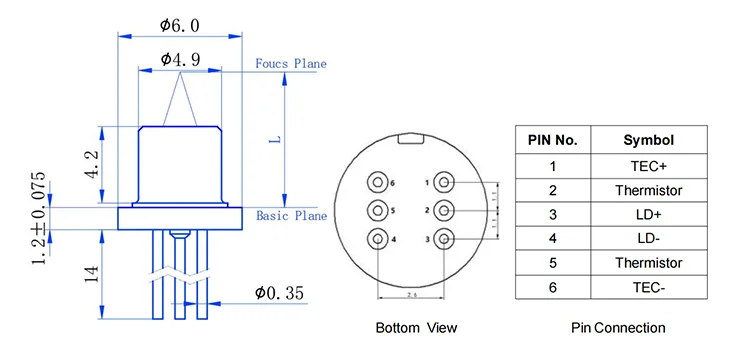

Outline Drawings & Pin Connection Type

Ordering information-760nm DFB TO CAN Laser

eg: BLD-D760TO60-AL

(Order information: 760nm DFB TO CAN Laser, 60mW output power, aspheric lens).

Datasheet-760nm DFB TO CAN Laser

Datasheet

Terms of quote and payment-760nm DFB TO CAN Laser

● Terms of quote

(1) EXW;

(2) DAP;

(3) Other.

● Terms of payment

PayPal and T/T are available.

Precaution-760nm DFB TO CAN Laser

(1) The modules should be handled in the same manner as ordinary semiconductor device to prevent the electro-static damages. For safety keeping and carrying, the modules should be packaged with ESD proof material. To assemble the modules on PCB, the workbench, the soldering iron and the human body should be grounded.

(2) Please pay special attention to the atmospheric conditions because the dew on the module may cause some electrical damage.

(3) Under such a strong vibration environment as in an automobile, the performance and reliability are not guaranteed.

Related product

760nm 10mW DFB Butterfly Laser Diode

1392nm 10mW DFB Butterfly Laser Diode

1683nm 10mW Fiber Coupled Laser

1651nm DFB Fiber Coupled Laser Diode

High-power 1653.7nm 40mW DFB Butterfly Laser

Quality Assurance and After-Sales Service-760nm DFB TO CAN Laser

● Warranty Period:

Free repair or replacement for non-human-induced defects within 1 year from purchase. Paid maintenance services available after 1 year.

● Exclusions from Free Warranty:

During the free warranty period, free repair or replacement services will be provided for faults caused by product quality issues. However, Box Optronics retains the right to refuse free repair services in the following cases within the warranty period:

(1) Damage caused by natural factors (e.g., lightning, dust) or environmental influences.

(2) Malfunctions due to improper operation by the user.

(3) Obvious physical damage caused by human error.

(4) Unauthorized disassembly, modification, or repair.

(5) Altered or incomplete warranty labels on the housing.

(6) Damage or loss during transportation.
