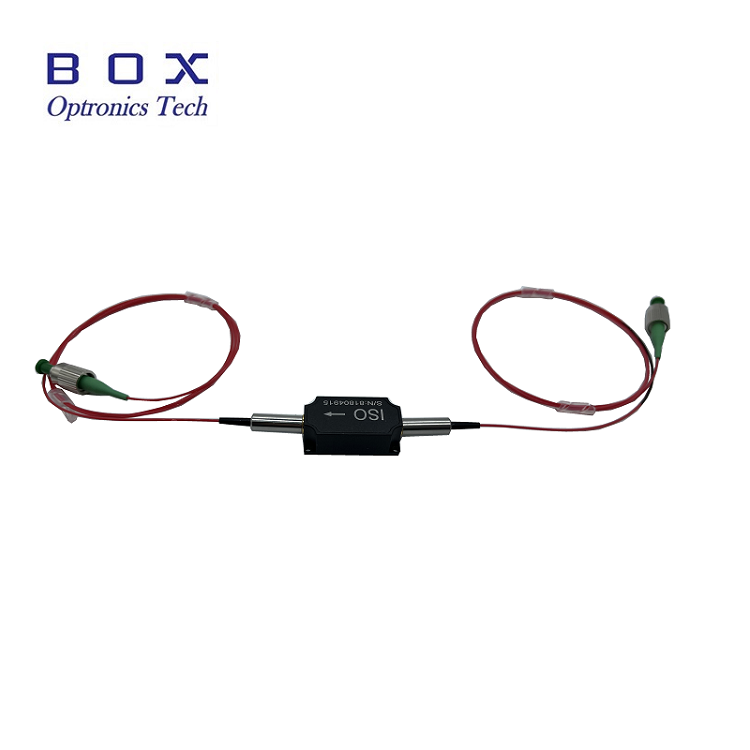

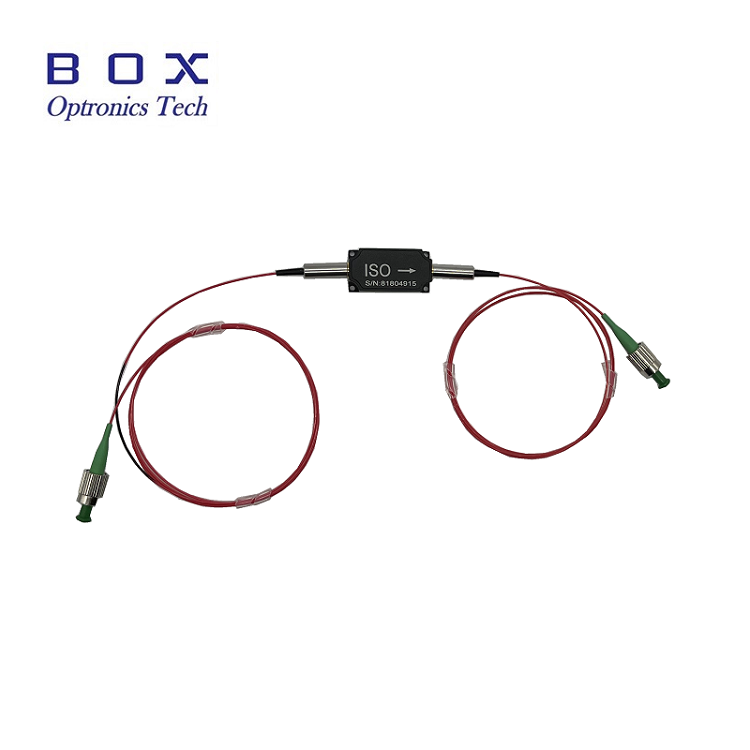

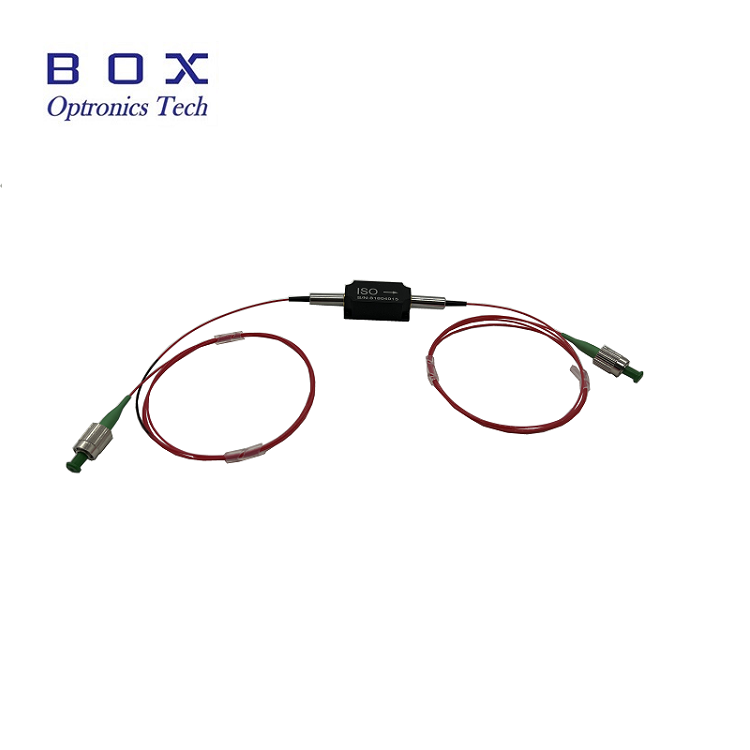

1064nm High Power Optical Isolator

Product Overview-1064nm High Power Optical Isolator

Box Optronics supplies the 1064nm High Power Optical Isolator, a high-performance passive optical component designed to protect laser sources, seed lasers, and optical amplifiers from harmful optical feedback caused by reflected and backscattered light. Based on the Faraday rotation effect, this isolator enables non-reciprocal light transmission, allowing light to pass in the forward direction with low loss while blocking reverse-direction light with high isolation.

Featuring typical insertion loss, high isolation, and high extinction ratio, this 1064nm isolator is optimized for high-power fiber laser and amplifier systems. It supports average power handling up to 10W and peak power up to 10kW for ns pulse operation, making it suitable for demanding industrial and scientific applications.

Key Features-1064nm High Power Optical Isolator

• High isolation: 30dB typical peak isolation, 25dB minimum

• Low insertion loss

• High return loss

• Low polarization-dependent loss (PDL)

• High power handling: up to 10W average power

• Compact and robust package design: 58×28×26mm

• Available in PM (Polarization Maintaining) and non-PM versions

• Multiple wavelength options: 980nm, 1030nm, 1064nm

Typical Applications-1064nm High Power Optical Isolator

• Fiber laser systems and MOPA fiber lasers

• Fiber amplifiers

• Optical test and measurement instruments

• Fiber optic sensing systems

• Seed laser protection in amplifier chains

• High power fiber laser systems

• Research and development laboratories

• Industrial laser processing systems

Technical Specifications-1064nm High Power Optical Isolator

Optical Specifications (T=25°C)

Mechanical and Environmental Specifications

Product Details-1064nm High Power Optical Isolator

What is an Optical Isolator?

An optical isolator, also known as a Faraday isolator, is a passive two-port optical device that allows preferential transmission in one direction while providing high isolation in the reverse direction. It is an essential component in laser and fiber optic systems toprotect laser sources and optical amplifiers from optical feedback caused by reflected and backscattered light.

Optical isolators are based on the Faraday effect, which utilizes a magneto-optic material that rotates the polarization of light passing through it when subjected to a magnetic field.Combined with polarizers, this polarization rotation enables forward optical transmission and high isolation of reverse-propagating light.

Package Dimensions

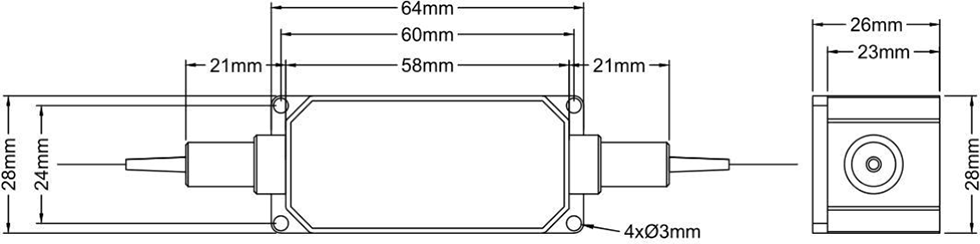

The 1064nm high power optical isolator is packaged in a compact, robust housing with the following dimensions (unit: mm):

• Package size: 58 × 28 × 26 mm (L×W×H)

• 2-port configuration with fiber pigtails

• 4 mounting holes (Ø3mm) for secure installation

• Designed for high reliability and thermal stability

Why Choose Box Optronics?

• Strict quality control with 100% testing before shipment

• Competitive pricing with stable bulk delivery capability

• Flexible customization options for wavelength, power, fiber, and connectors

• Sample testing available for evaluation

• Global shipping with DHL, UPS, and FedEx express delivery

• Both PM and non-PM versions available

• Multiple power rating options: 500mW to 10W

• Wide wavelength coverage: 980nm, 1030nm, 1064nm

• Reliable long-term supply for production quantities

Ordering Information-1064nm High Power Optical Isolator

Model Nomenclature

HPMIS - XXXX - X - X - X - X - X - XX

Example: HPMIS - 1064 - F - 1 - 1 - 1 - 0 - 10

1064nm High Power PM Isolator, slow axis working,fast axis blocked,PM Panda fiber, 900μm loose tube, 1m fiber length, 58x28x26mm package, 10W handling power

Example: HPIS - 1064 - N - 0 - 1 - 1 - 0 - 05

1064nm High Power Isolator (non-PM), Hi1060 fiber, 900μm loose tube, 1m fiber length, 58x28x26mm package, 5W handling power

Available Customization Options

• Center wavelength: 980nm, 1030nm, 1064nm, other wavelengths available upon request

• Power rating: 500mW, 1W, 2W, 5W, 10W, higher power available for custom designs

• Polarization type: PM (Polarization Maintaining) or non-PM (standard single mode)

• PM axis configuration: Slow axis working, both axis working

• Fiber type: PM Panda fiber, Hi1060, other specialty fibers

• Fiber length: 0.5m, 0.8m, 1m, 1.5m, 2m (custom lengths available)

• Pigtail type: 250μm bare fiber, 900μm loose tube, 3.0mm loose tube

• Package size: Standard 58x28x26mm or custom package dimensions

• Higher isolation versions available for demanding applications

For custom requirements, please contact our sales team with your specifications.

Datasheet and Test Report-1064nm High Power Optical Isolator

Each unit is shipped with a comprehensive test report documenting measured performance parameters. The datasheet PDF file contains detailed specifications.

• Individual test report included with each unit

Datasheet

Terms of Quote and Payment

Quote Terms

• EXW

• DAP

• FOB

• Other terms: Please contact us to discuss.

Payment Terms

• PayPal: Fast and secure payment for samples and small orders

• T/T (Bank Transfer): Standard payment method for normal production orders

• Alibaba Trade Assurance: Secure order protection for online transactions with buyer guarantee

• Credit Card: PayPal  and Alibaba are available

• Flexible Payment Terms: Negotiable

Lead Time

• Standard production: ~10-15 working days

• Custom configurations: 15-20 working days

• Volume orders: Please contact for production schedule

• International shipping: ~3-5 working days (DHL/UPS/FedEx express)

• Expedited service: Available upon request

Operation Notes and Handling-1064nm High Power Optical Isolator

ESD Protection

While optical isolators are passive devices, proper handling is required to maintain performance and reliability.

• Work on a clean, dust-free surface

• Avoid touching the fiber end-faces directly

• Keep dust caps on connectors when not in use

• Use proper ESD protection during handling and installation

• Handle with care to avoid damaging fiber pigtails

Fiber Handling

• Avoid excessive bending of the fiber

• Do not pull or twist the fiber pigtails

• Clean fiber connectors before connection using proper cleaning tools

• Always use dust caps when the connector is not in use

• Inspect fiber end-face for damage before use

• Do not exceed maximum tensile load (5N)

Power Handling Considerations

• Ensure input power does not exceed the rated maximum

• Use proper power monitoring to avoid overload

• Allow for proper heat dissipation at high power levels

• Mount on a heat sink for high power continuous operation

Installation and Mounting

• Mount the isolator securely using the 4 mounting holes

• Ensure proper alignment to minimize additional loss

• Allow sufficient space for fiber bending radius

• Operate within the specified temperature range for reliability

• Avoid mechanical stress on the fiber pigtails

• Ensure proper port orientation for correct signal direction

• Verify forward/reverse direction before installation

Quality Assurance

Box Optronics is committed to providing high-quality optical components with reliable performance. All our high power optical isolators undergo rigorous testing and quality control before shipment.

Warranty

• 12-month limited warranty from date of shipment

• Warranty covers defects in materials and workmanship

• Free repair or replacement for defective units under warranty

• Warranty does not cover damage from misuse, mishandling, or unauthorized modification
