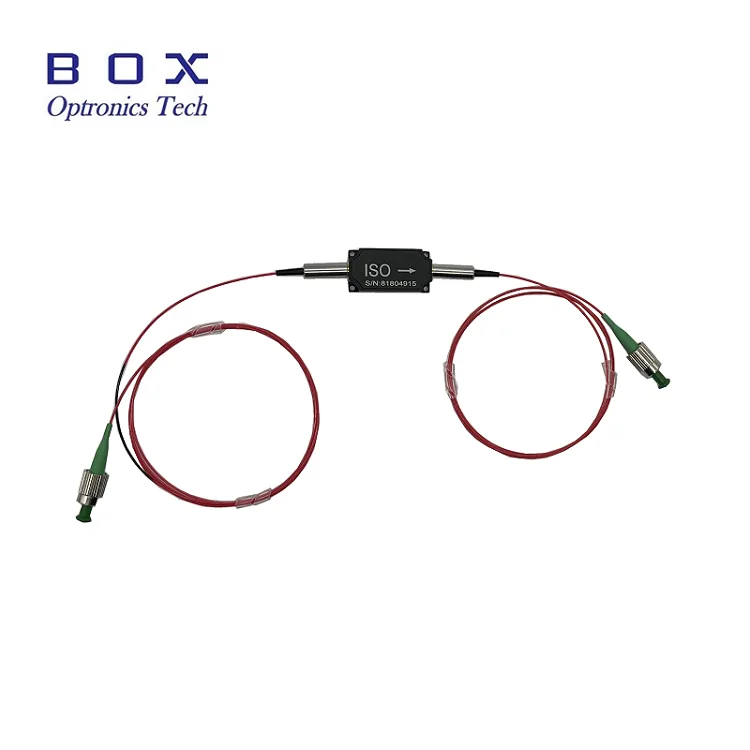

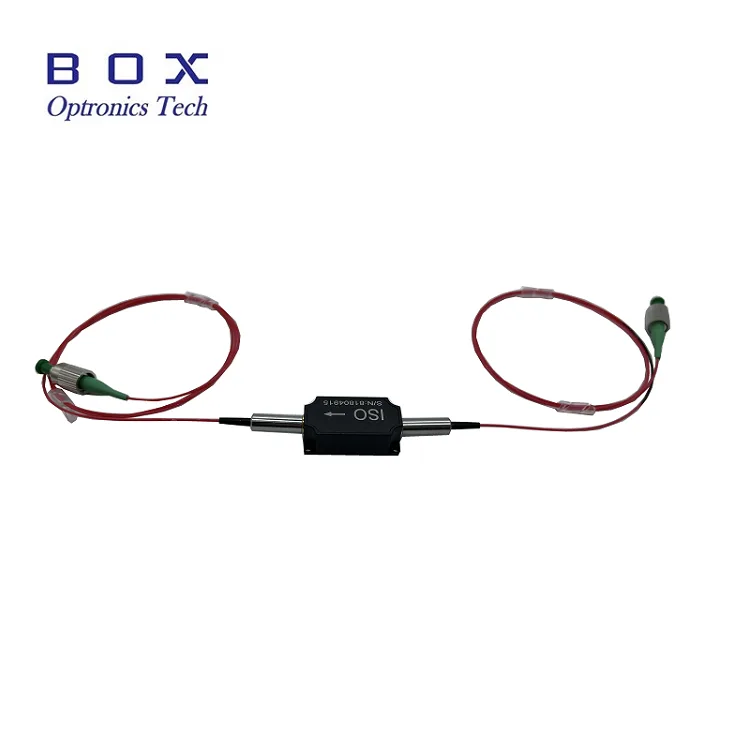

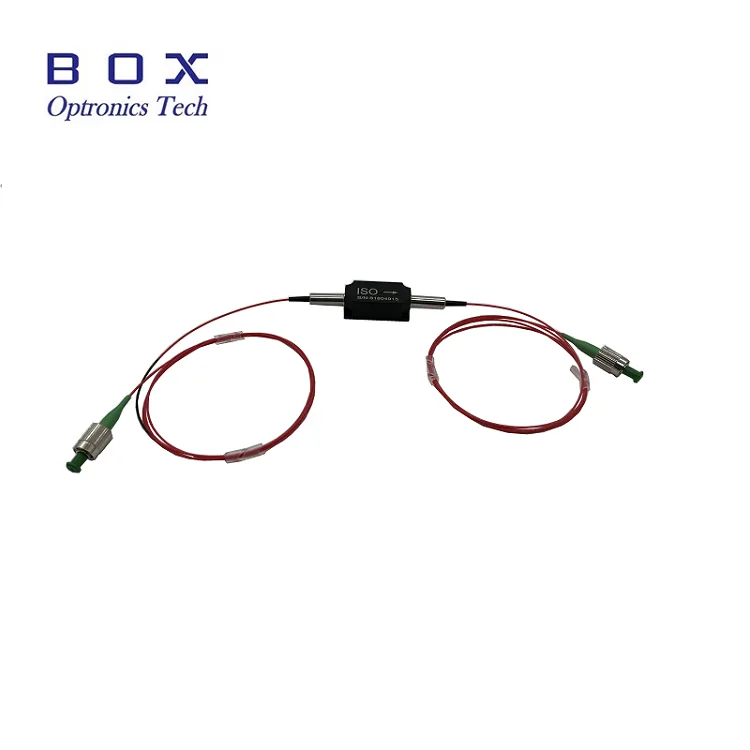

Box Optronics provides the 850nm High Power Optical Isolator, a passive optical component designed to protect optical systems from harmful back-reflections. This high-performance isolator features exceptional isolation of up to 35dB, ultra-low insertion loss of 0.8dB typical, and supports high power handling up to500mW/1W/5W/10W average power.
Housed in a compact 58×28×26mm package with 780HP fiber pigtails, this isolator delivers outstanding reliability and stability for demanding applications. Whether for fiber lasers, OCT systems, optical amplifiers, or test instrumentation, Box Optronics provides high-quality isolators backed by rigorous quality control and global technical support.
● High isolation: up to 35dB typical peak isolation
● Low insertion loss: 0.8dB typical, 1.2dB maximum
● High return loss: 45dB
● High extinction ratio for polarization maintaining versions
● High power handling: 500mW/1W/5W/10W average power
● Low polarization dependent loss (PDL): <0.15dB
● Compact and robust package design
● SM fiber/ PM fiber/ or otherfiber pigtails
● High reliability and long-term stability
● Wide operating temperature range: -40°C to +85°C
● Optical test and measurement instrumentation
● 840nm/850nm Optical Coherence Tomography (OCT) systems
● 850nm fiber laser systems and seed sources
● Fiber optic sensing systems (interferometric sensing)
● Research and development laboratories
● Biomedical imaging and diagnostics
|
Parameter |
Unit |
Value |
|
Center wavelength |
nm |
850 |
|
Operating wavelength range |
nm |
±50 |
|
Typ. Peak isolation at 23°C |
dB |
35 |
|
Min. Isolation at 23°C |
dB |
25 |
|
Typ. Insertion loss at 23°C |
dB |
0.8 |
|
Max.Insertion loss at 23°C |
dB |
1.2 |
|
Max. Polarization dependent loss at 23°C, only for PI |
dB |
0.15 |
|
Min.Return loss (Input/Output) |
dB |
45 |
|
Max. average optical power |
W |
0.5,1,2,5,10 |
|
Max. peak power (ns pulse) |
kW |
1,5,10 |
|
Parameter |
Unit |
Value |
|
Fiber type |
- |
780HP |
|
Max. tensile load |
N |
5 |
|
Package dimensions |
mm |
58×28×26 |
|
Operating temperature |
°C |
-40~+85 |
|
Storage temperature |
°C |
0~+70 |

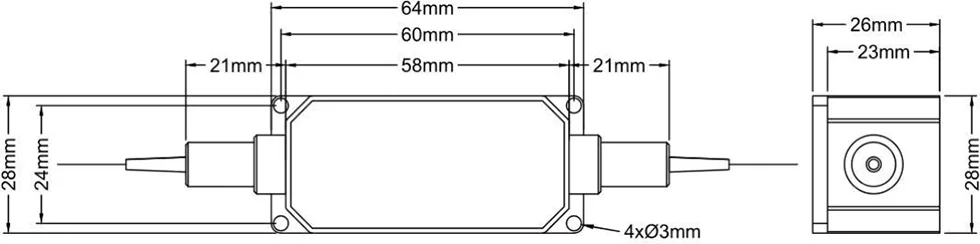

The isolator is packaged in a compact, robust plastic housing with the following dimensions (unit: mm):
An 850nm high-power fiber-coupled optical isolator is a passive optical component that provides non-reciprocal light transmission, allowing forward optical signals to pass while blocking backward reflections in fiber-based systems.
The device is based on the Faraday rotation effect combined with polarization optics, and is available in both Single-Mode Fiber (SMF) and Polarization-Maintaining Fiber (PMF) versions, enabling flexible integration into different optical systems.
● Forward direction: Light passes through with minimal insertion loss
● Reverse direction: Back-reflected light is blocked with high isolation
● Protects laser diodes and amplifiers from back-reflection-induced damage and noise
● Improves system stability and reduces intensity noise (RIN)
● ✓ Strict quality control with 100% testing before shipment
● ✓ Competitive pricing with stable bulk delivery capability
● ✓ Flexible customization options for wavelength, power,andfiber
● ✓ 7×24 hours technical support and fast response
● ✓ Sample testing available for evaluation
● ✓ Global shipping with DHL, UPS, FedEx express delivery
HPIS/HPMIS - XXX -X - X - X - X - XX - XX
|
Field |
Code |
Option |
|
Product Series |
HPIS/HPMIS |
High power isolator/ high power PM isolator |
|
Wavelength |
850, 980, 1030, 1064nm |
850: 850nm, 980: 980nm,1030: 1030nm, 1064: 1064nm |
|
Fiber type |
X |
0: SM fiber, 1: PM Panda fiber, S: Specified |
|
Pigtail type |
X |
0: 250μm bare fiber, 1: 900μm loose tube, 3: 3.0mm loose tube |
|
Fiber length |
X |
0: 0.8m, 1: 1m |
|
Package dimension |
X |
0: 58x28x26mm, S: Specified |
|
Handling power |
XX |
00: 500mW, 01: 1W, 02: 2W,......, 05: 5W, 10: 10W |
|
Connector |
XX |
FA: FC/APC | SA: SC/APC | Other: custom request |
Example:HPIS -850 -0 -1 -1 -0 -00- FA
850nm High Power Optical Isolator,SM fiber, 900um loose tube, 1m fiber length, dimension: 58x28x26mm, 500mW handling power,FC/APC connector
● Center wavelength: 850nm, 980nm,1030nm,1064nm, 1310nm, 1550nm
● Power rating: 0.5W, 1W, 2W, 5W, 10W, higher power available
● Fiber type:780HP,SMF-28, PM1550, other specialty fibers
● Fiber length: 0.5m, 1m, 1.5m, 2m (custom lengths)
● Pigtail type:900um loose tube, 3.0 mm loose tube,bare fiber
● Package size: Standard or custom package dimensions
For custom requirements, please contact our sales team:
Email: sales06@boxoptronics.com
Tel: +86-13322933691
Website: www.boxphotonics.com
Each unit is shipped with a comprehensive test report documenting measured performance parameters. The datasheet PDF file contains detailed specifications.
● Individual test report included with each unit
● EXW (Ex Works): Recommended if you have a DHL/UPS/FedEx account. We ship using your account; no shipping cost is charged by us.
● DAP (Delivered at Place): If you don't have a courier account, we can arrange shipping with prepaid freight.
● Other terms: Please contact us to discuss.
● PayPal: Fast and secure payment for samples and small orders
● T/T (Bank Transfer): Standard payment method for normal production orders
● Alibaba Trade Assurance: Secure order protection for online transactions with buyer guarantee
● Flexible Payment Terms: Negotiable for long-term or strategic partners
● Standard production: ~10 working days
● Custom configurations: 15-20 working days
● Volume orders: Please contact for production schedule
● International shipping:~3-5 working days (DHL/UPS/FedEx express)
● Expedited service: Available upon request (additional fee may apply)
While optical isolators are passive devices, proper handling is still required to maintain performance and reliability.
● Handle with clean, lint-free gloves to avoid contamination
● Work on a clean, dust-free surface
● Avoid touching the fiber end-faces directly
● Keep dust caps on connectors when not in use
● Avoid excessive bending of the fiber (minimum bend radius: 30mm)
● Do not pull or twist the fiber pigtails
● Clean fiber connectors with isopropyl alcohol before connection
● Always use dust caps when the connector is not in use
● Inspect fiber end-face for damage before use
● Do not exceed the maximum tensile load rating
● Ensure input power does not exceed the rated maximum
● Use proper power monitoring to avoid overload
● Allow for proper heat dissipation at high power levels
● Mount on a heat sink for high power continuous operation
● Mount the isolator securely using the 4 mounting holes
● Ensure proper alignment to minimize additional loss
● Allow sufficient space for fiber bending radius
● Operate within the specified temperature range for reliability
● Avoid mechanical stress on the fiber pigtails
Box Optronics warrants this product to be free from defects in materials and workmanship for a period of 12 months from the date of purchase. During the warranty period, we will repair or replace defective products at our discretion, free of charge.
The following conditions are not covered under the free warranty:
● Damage caused by natural factors (lightning, flood, etc.) or environmental influences
● Malfunctions due to improper operation or misuse by the user
● Obvious physical damage caused by human error
● Unauthorized disassembly, modification, or repair attempts
● Altered or incomplete warranty labels on the housing
● Damage or loss during transportation after shipment
● Damage caused by exceeding maximum power ratings or operating conditions
● Fast response time: within 24 hours on business days
● Remote troubleshooting and application support
● Paid maintenance service available after warranty period
● Custom technical consulting services
